Micro Fused Quartz Capillary Tube Glass Industrial Use High Purity

Price Negotiable
Price: Negotiable
MOQ: 5pcs
Delivery Time: 28-35 working days
Brand: OEM
Product Description

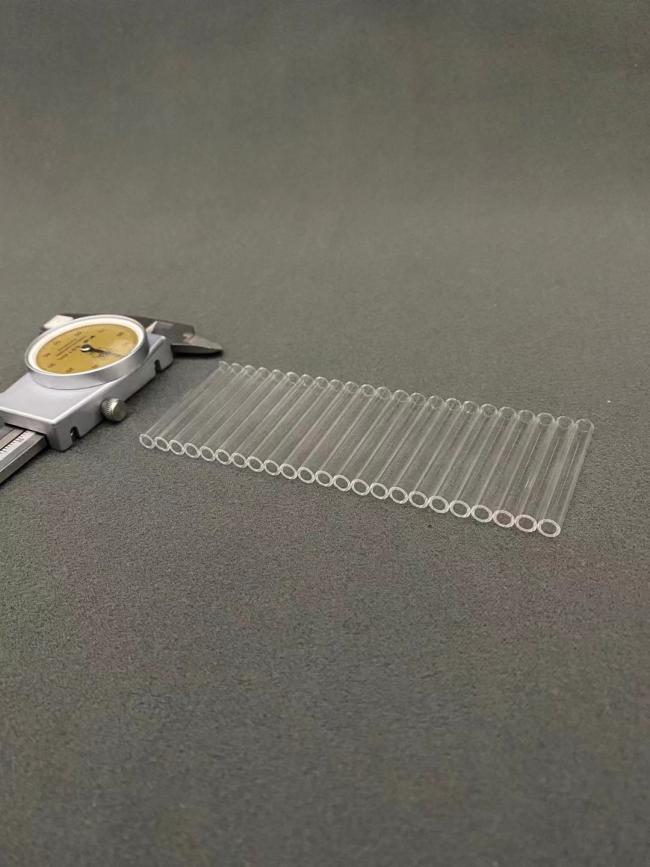

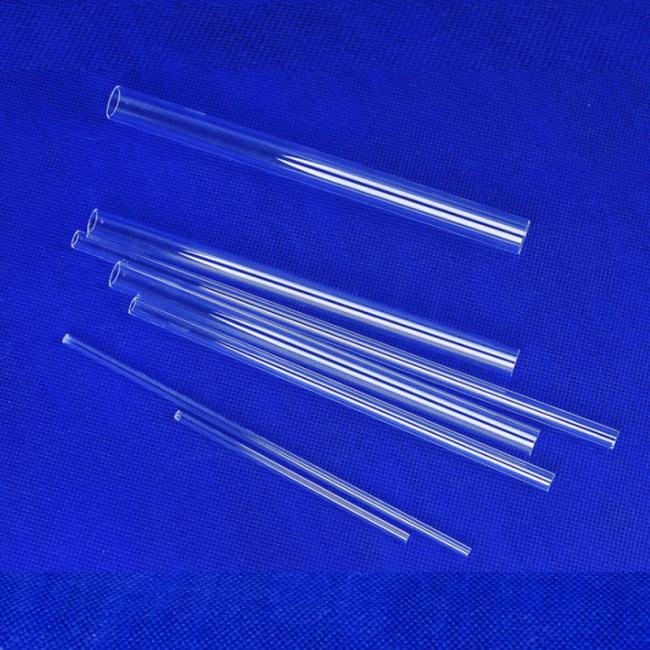

Micro Capillary Quartz Glass Tube glass capillary tubes,Quartz Glass Tube for industrial use



High purity quartz glass tube
1. high temperature resistance glass can work under 1200°C continuously,and in short time can even work under 1450°C, its softening point is 1650°C, and the melting point is 1650-1800°C.
2.Corrosion resistant, Except hydrofluoric acid, quartz tube do not react with any acid and base except hydrofluoric acid.the
stability is 30 times of the ceramic,and 150 times of stainless steel .
3.Excellent thermal shock stability
4.High transmission to 90%
5.Electric insulation ,it is 10000 times of usual glass.













Specifications


Model
RE418
Brand

Outer Diameter
1.50-450mm
Material
high purity >99.95%(SiO2)
Wall Thickness
0.30-20mm
Length
10-4500mm
Shape
Straight, C, U,Round,Pear,spiral,domed, closed
Softening Point
1680℃
Annealing Point
1210℃
Strain Point
1120℃
Density
2.2g/cm3
Hardness
5.5-6.50Mohs'
Design Tensile Strength
4.80x 107 N/m^2
Design Compressive Strength
1.10x 109 N/m^2
Cofficient Of Thermal
Expansion(20-320℃)
5.70x 10-7cm/cm.℃
Thermal Conductivity(20℃)
1.40W/m.℃
Specific Heat(20℃)
670J/Kg.℃
Electrical Resistivity(350℃)
7x 107ohm.cm
Dielectric Constant
3.75
Dielectric Strength
5x107V/m











Packing Details :Use Good and Strong Cartons to pack
