60-40 Scratch Optical Glass Lenses

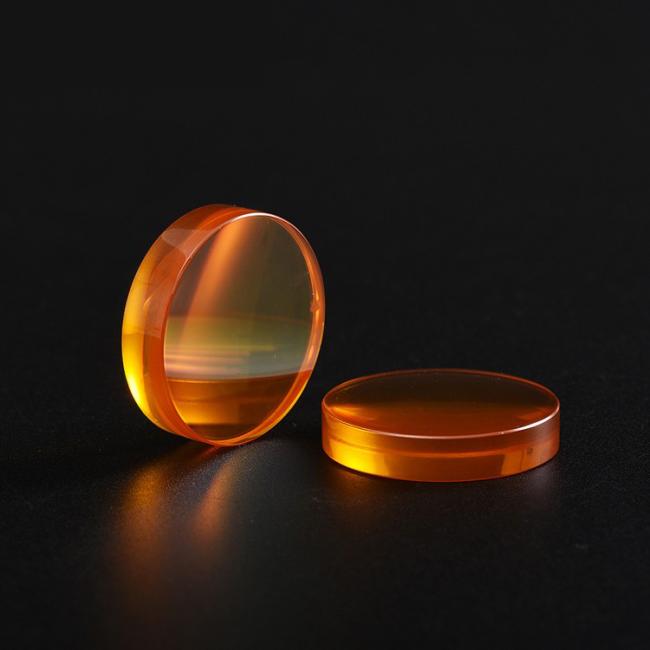

ZnSe Meniscus lens D25.4* CT2.7R41.94R-71.71 Coating: 8-12um, the average transmission is about 97%
Zinc Selenide (ZnSe) Meniscus Lenses are designed for focusing or collimation applications in the mid-wave and longwave infrared spectrum. Manufactured by II-VI, these lenses feature Infrared ZnSe material with <0.0005cm-1 bulk absorption at 10.6µm and are available uncoated or with a variety of broadband anti-reflection coating options. The 8-12µm coating is ideal for use with CO2 lasers and thermal camera applications, whereas the dual band 3-12µm coating is ideal for hyperspectral applications. Zinc Selenide Meniscus Lenses feature an irregularity of <λ/20 at 10.6µm, 40-20 surface quality, and <50Å surface roughness. Three diameter options are available, with effective focal lengths ranging from 12.7mm to 250mm.
Conventional parameters
| Material | ZnSe |
| Dimension Tolerance | +0.0/-0.2mm |
| Thickness Tolerance | ±0.2mm |
| Design Wavelength | 10.6μm |
| Surface Quality | 60/40 scratch and dig |
| Clear Aperture | >90% |
| Flatness | N<3(0.5)@632.8nm |
| Centration | <3 arc minutes |
| Focal Length Tolerance | ±2% |
| Chamfer | Protective<0.5mmx45° |

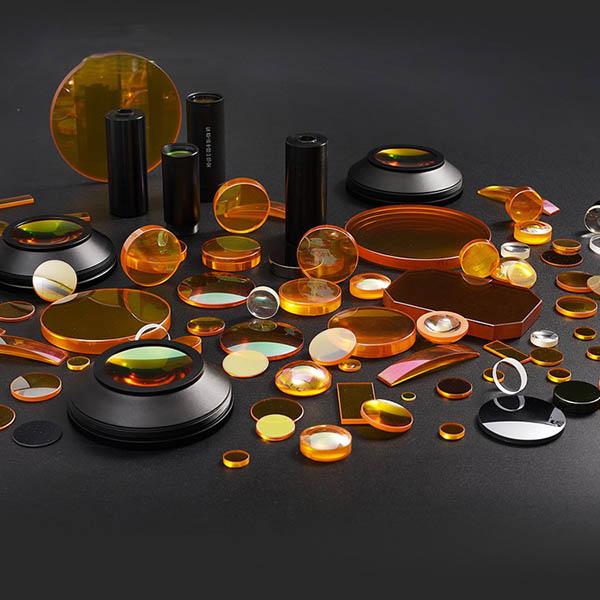

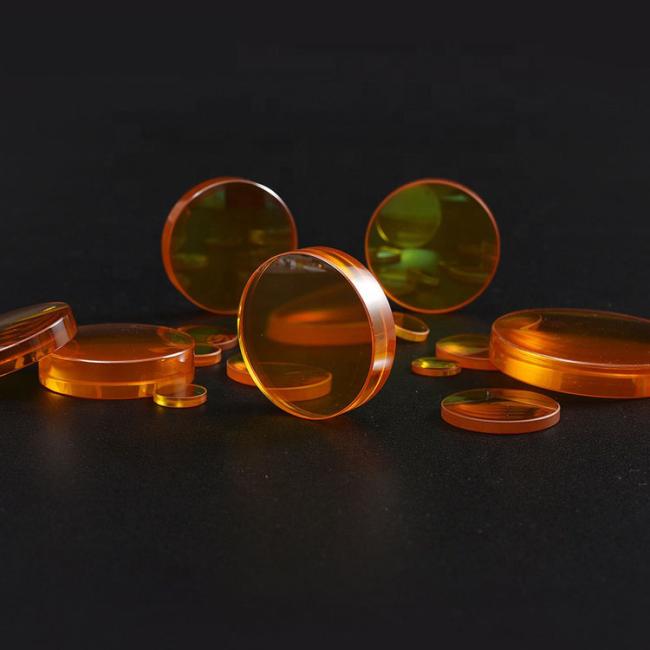

Pictures show
Packing Details :Use Good and Strong Cartons to pack
We offer more transportation options
FAQ
Q: What are your main products?
A: Optical lens,mirrors,windows,filters,prisms
Q: How long is your delivery time?
A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics.
Q: Do you provide samples ? is it free or extra ?
A: We can provide free samples if we have stock optics as your request,while custom produced samples are not free.
Q:What is your MOQ ?
MOQ is 10pcs for most of the optics, while MOQ could be only one piece if you need a element in big dimention.
Q: What is your terms of payment ?
T/T,L/C,VISA,Paypal,Alipay or Negotiation.
