BK7 Cylindrical Glass Lens Acylindrical 0.2mm Minimize
Acylindrical Lenses,Cylindrical Lenses Designed to Minimize Aberrations
Cylindrical lens are offered in both plano-concave and plano-convex configurations, they are typically used to focus incoming light to a line, or to change the aspect ratio of an image. Cylinder Lenses are available with positive or negative focal lengths, they are used for the optics, lasers, medical science, electronics, tele-communication and others.
MAP Optics can offer cylinder Lenses include convex cylindrical lens, concave cylindrical lens, meniscus cylindrical lens, and doublet achromatic cylindrical lens ect. Choose from N-BK7 glass, UV fused silica, or CaF2, all of which are available uncoated or with an antireflection coating.
Conventional parameters
| Material | N-BK7 |
| Dimension Tolerance | +0/-0.2mm |
| Thickness Tolerance | ±0.2mm |
| Surface Quality | 60/40 scratch and dig |
| Clear Aperture | >90% |
| Flatness | N<3(0.5)@632.8nm |
| Centration | <3 arc minutes |
| Focal Length Tolerance | ±2% |
| Chamfer | Protective<0.5mmx45° |

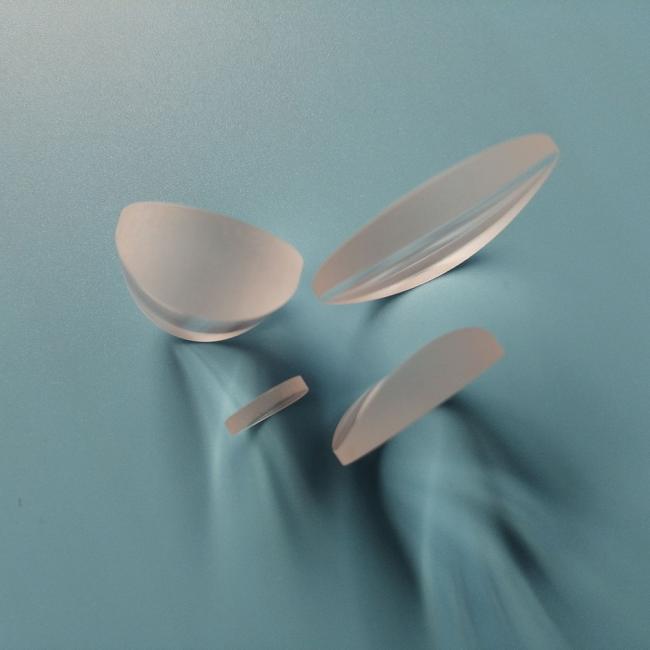

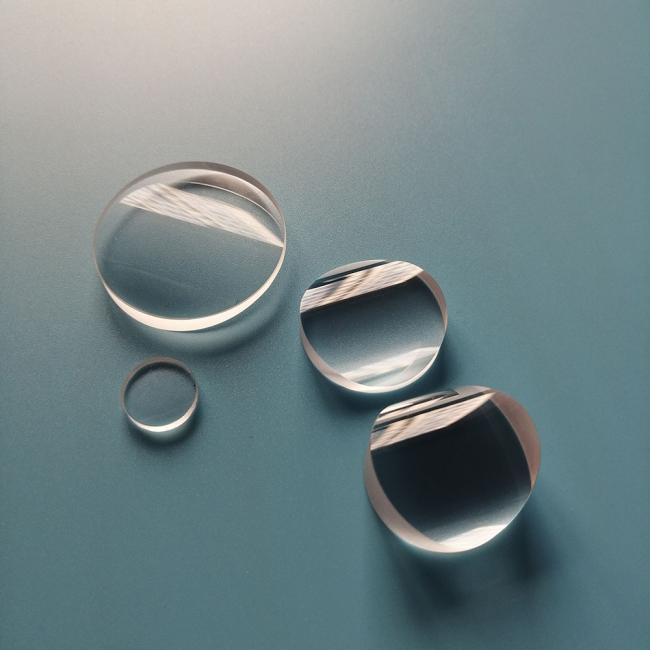

Pictures show
Packing Details :Use Good and Strong Cartons to pack
We offer more transportation options
FAQ
Q: What are your main products?
A: Optical lens,mirrors,windows,filters,prisms
Q: How long is your delivery time?
A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics.
Q: Do you provide samples ? is it free or extra ?
A: We can provide free samples if we have stock optics as your request,while custom produced samples are not free.
Q:What is your MOQ ?
MOQ is 10pcs for most of the optics, while MOQ could be only one piece if you need a element in big dimention.
Q: What is your terms of payment ?
T/T,L/C,VISA,Paypal,Alipay or Negotiation.
