MgF2 Polarization Optics 10-5 Scratch Quartz Wave Plate
Wave plate

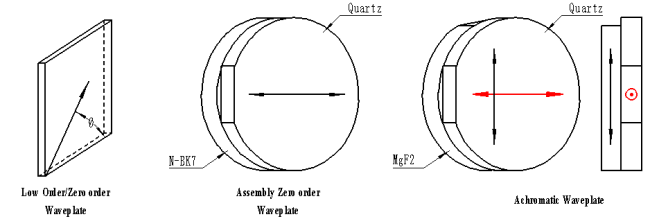

Waveplates transmit light and modify its polarization state without attenuating, deviating, or displacing the beam. They do this by retarding one component of polarization with respect to its orthogonal component. Waveplate retarders are designed to operate with light that have existing polarization states. MAP OPTICS provide zero-order WP,low-order WP,achromatic WP and WP customization.
Applications:
- Polarization Management
Capability:
| PARAMETER | COMMERCIAL | HIGH PRECISION |
| Material | Quartz,MgF2,N-BK7(sub), Fused Silica(sub) | |
| Clear Aperture | ≥85% | ≥95% |
| Thickness | ≥0.01mm | |
| Dimension Tolerance | ±0.1mm | ±0.02mm |
| Retardation Tolerance | λ/150@532nm | λ/500@532nm |
| Front Distortion | λ/8 @632.8nm | λ/20@632.8nm |
| Surface Quality(S/D) | 20-10 | 10-5 |
| Angle Tolerance | ±3 arcsec | ±0.5 arcsec |
| Assembly | Cemented with Epoxy or optical bonding | |
| AR Coating | R＜0.2%@CWL(from 260nm-2700nm) |
|
Packing Details :Use Good and Strong Cartons to pack
We offer more transportation options
FAQ
Q: What are your main products?
A: Optical lens,mirrors,windows,filters,prisms
Q: How long is your delivery time?
A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics.
Q: Do you provide samples ? is it free or extra ?
A: We can provide free samples if we have stock optics as your request,while custom produced samples are not free.
Q:What is your MOQ ?
MOQ is 10pcs for most of the optics, while MOQ could be only one piece if you need a element in big dimention.
Q: What is your terms of payment ?
T/T,L/C,VISA,Paypal,Alipay or Negotiation.
