Auto Mini Capacitive Discharge Hand Point Welding Machine Spot Welder
Price:
$6000 - $6500.00
MOQ:
1 Set
Delivery Time:
15 Working days
Brand:
XWH
Product Description
Auto Mini Capacitive Discharge Hand Point Welding Machine Spot Welder Price
Product Description
Spot welding is a resistance welding method in which welding parts are assembled into lap joints and pressed
between two columnar electrodes, and the base metal is melted by resistance heat to form solder joints.
| Item/models | Unit | DN2-31X | DN2-31C | DN2-40X | DN2-40C | DN2-63X | DN2-63C |
| power at 50% | KVA | 31 | 31 | 40 | 40 | 63 | 63 |
| Maximum short circuit current | KVA | 14 | 14 | 18 | 18 | 20 | 20 |
| Secondary unload voltage | V | 5.58 |
5.58
|
6.8
|
6.8
|
7.9
|
7.9
|
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM |
168-288 |
100 |
168-328
|
100 |
168-428
|
100 |
| Max.strength at electrodes | N |
3000
|
3000
|
3500 |
3000
|
3500 |
3000
|
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke of cylinder | MM |
70
|
50
|
100 | 50 | 100 | 50 |
| Max. arm length | MM |
750
|
350 | 1000 | 450 | 1100 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA |
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
| Cooling water flow | L/MIN | 4 | 4 | 4 | 4 | 4 | 4 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1. Configured with bearings, the machine can rotate 360°
2. The body structure is strong and resistant to damage
3. Many control functions and the functions are stable
4. Starting in 2003, professional for more than 20 years
Company Information
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller, etc.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller, etc.
Certifications
Exhibition Pictures
Service

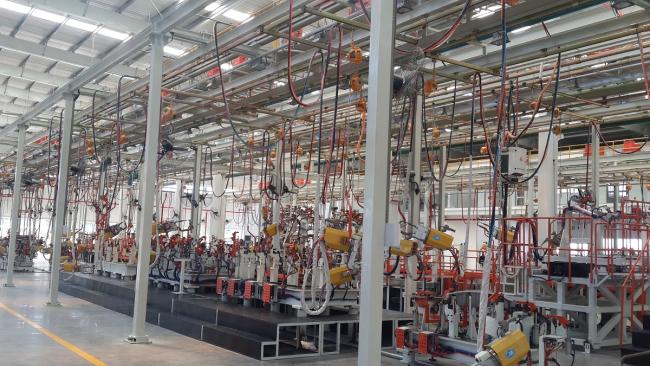

Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on..
Our engineers will train customer how to operate, repair and maintaining machines and so on..
Transportation Display
FAQ
1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5.How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE
foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
We usually arrange shippment within 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5.How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE
foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
