2200 Mm Mold Platen Size Plastic Pallet Crate Boxes Making Machinery 150 Accumulation Style Blow Molding Machine Process
| Name | Units | ABLD120 | ABLD150 |
| Max.product volume | L | 300 | 1000-5000 |
| Screw diameter | MM | 120 | 120×2 |
| Screw drive power | KW | 132 | 132×2 |
| Screw heating capacity | KW | 36 | 36×2 |
| Output of HDPE | KG/H | 350 | 620-840 |
| Oil pump drive power | KW | 37 | 37 |
| Clamping force | KN | 900 | 1800 |
| Max.size of mold | MM | 1200×1700 | 1600×2200 |
| Material storage | L | 24-35 | 40-100 |
| Template size | MM | 1200×1600 | 1600×2000 |
| Mold stroke | MM | 880-1700 | 800-2500 |
| Max.die diameter | MM | 700 | 1000 |
| Die heating power | KW | 36 | 64 |
| Size of machine | L×W×H | 7.5×3.5×5.5 | 11.5×7.5×8 |
| Weight of machine | TON | 36 | 72 |
DAWSON MACHINERY & MOULD GROUP

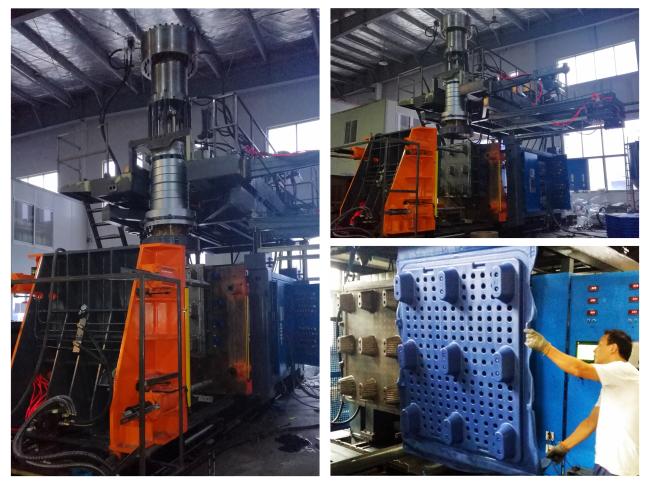

Accumulation Type Blow Molding Machine ABLD150

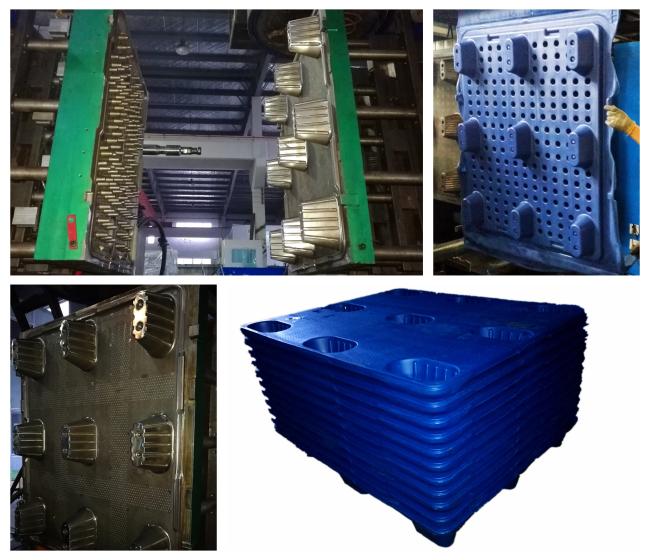

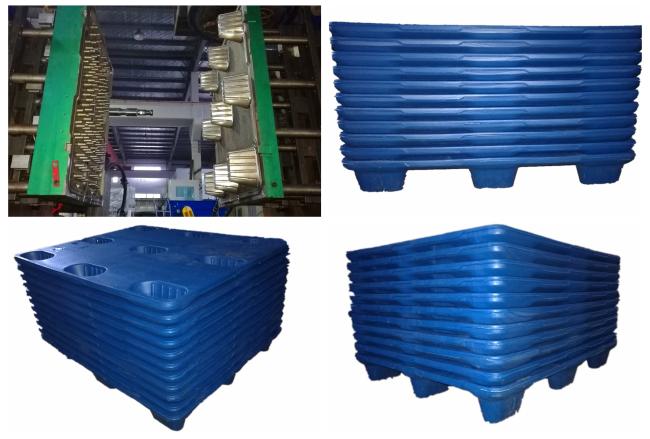

suitable for 300-5000L plastic drum and barrel, children table or desk board, barriers, floaters, pallets and indoor toys, etc.
ers
shop
DAWSON MACHINERY & MOULD GROUP
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
We have our own service team in
Saudi Arabia, Colombia, Panama, South Africa ...
| DAWSON MACHINE & MOULD GROUP located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns. The machines from our company carry good quality and effective after-sales service, upon the market, customers from more than 45 countries, we provide complete solution for your plastic industry business, as well as all sorts of technical support & after-sale services! DAWSON will be your reliable friend in China, and we will always do our best to give you max support! |
Dawson Machine & Mould Group
We committed to providing customers with plastic machinery and equipment production lines beyond expectations.
Customer satisfaction is our eternal pursuit...
Services
| FAQ |
|
Q: Can we visit your factory? |
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
