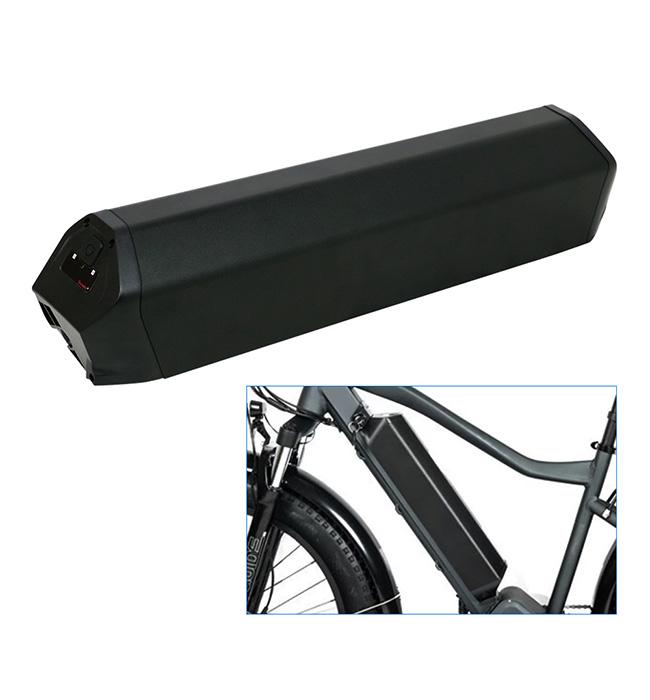

E Bike Lithium Ion Down Tube Battery Pack 36V 13AH Electric Scooter Batteries
Price:
Negotiable
MOQ:
1pc
Delivery Time:
3-5 work day
Brand:
OEM
Product Description
E Bike Lithium Ion Down Tube Battery Pack 36V 13AH Electric Scooter Batteries
E Bike lithium ion battery pack Replacement 36V 13AH Electric Scooter Battery
Description:
|
Nominal Voltage
|
36V
|
|
|
Nominal Capacity
|
13Ah
|
|
|
Max discharge current
|
25A
|
|
|
Max charge Current
|
3A
|
|
|
Power
|
500-1500W
|
|
|
Over–charged Protection Voltage
|
4.25±0.025V/Cell(adjustable)
|
|
|
Over –discharged Protection Voltage
|
2.50±0.10V/Cell(adjustable)
|
|
|
Charge mode
|
CCCV
|
|
|
Max charge Voltage
|
42V
|
|
|
Charging Temperature
|
0~45℃,45~85%RH
|
|
|
Discharging Temperature
|
-20~55℃,45~85%RH
|
|
|
Circle life
|
>500 times
|
|
|
Storage Environment
|
One Month
|
-20~+55℃,45~85%RH
|
|
Three Month
|
-20~+45℃,45~85%RH
|
|
|
One Year
|
-5~+20℃,45~85%RH
|
|
|

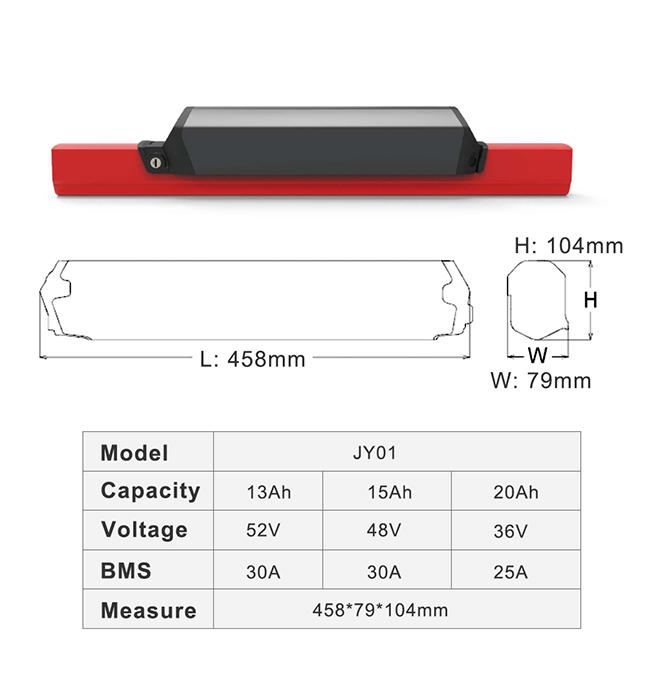

Dimension
|
high
|
reference sample
|
|
length
|
reference sample
|
|
|
thickness
|
reference sample
|
|
|
Weight
|
<5.0 KG
|
|
Electric Scooter Batteries
Product paramenters:
|
Project
|
Testing process
|
Standard
|
|
Room temperature discharge capacity
(Initial capacity)
|
1. Test temperature: 25±2℃.
2. Fully charge the battery according to 3.15.
3. Discharge the battery to 2.5V at a current of 1I1 (A) and record the discharge capacity (Ah).
|
Discharge capacity
≥100%*rated capacity
|
|
Room temperature rate charging
|
1. Test temperature: 25±2℃.
2. Discharge the battery to 2.5V at 1I1(A) and let it stand
1h.
3.Charge the battery with a current of 2I1(A) to 3.65V, the total charging time does not exceed 30min, and let it stand for 1h.
4. Discharge the battery to 2.5V with 1I1(A) current and record
Recording discharge capacity (Ah).
|
Discharge capacity ≥ 85%*initial capacity
|
|
Room temperature rate discharge
|
1. Test temperature: 25±2℃.
2. Fully charge the battery according to 3.15.
3. Discharge the battery to 2.5V at a current of 2I1 (A) and record the discharge capacity (Ah).
|
Discharge capacity≥90%*initial capacity
|
|
High temperature discharge
|
1. Fully charge the battery according to 3.15
2. Leave the battery at 55±2℃ for 5h.
3. Discharge the battery to 2.5V at a current of 1I1(A) at 55±2℃ and record the discharge capacity (Ah).
4. Put the battery at 25±5℃ for 12h and check the battery
Appearance.
|
No deformation, expansion or other abnormal conditions; discharge capacity
≥90%*initial capacity
|
|
Low temperature discharge
|
1. Fully charge the battery according to 3.15
2. Leave the battery at -20±2℃ for 24h.
3. Discharge the battery to 2.5V at a current of 1I1(A) at -20±2℃ and record the discharge capacity (Ah).
4. Put the battery at 25±5℃ for 12h and check the battery
Appearance.
|
No deformation, expansion or other abnormal conditions; discharge capacity
≥70%*initial capacity
|
|
Cycle life
|
1. Test temperature: 25±2℃.
2. Use constant current and then constant voltage to charge. The constant current is 0.5I1(A) and the constant voltage is 3.65V.
During the constant voltage process, the charging can be terminated until the current drops to 0.05I1(A). Leave it for 30 minutes.
3. Discharge the battery to 2.5V with a current of 0.5I1(A) and let it stand for 30min.
4. Repeat steps 2) and 3) until the battery capacity is less than
70% of the initial capacity, and record the number of cycles.
|
Cycle life≥2000 times
|
|
Room temperature storage and recovery
|
1. Test temperature: 25±2℃.
2. Fully charge the battery according to 3.15.
3.Store the battery at room temperature for 28 days.
4. Discharge the battery to 2.5V at a current of 1I1 (A), and record the remaining capacity (Ah).
5. Fully charge the battery according to 3.15.
6. Discharge the battery to 2.5V at a current of 1I1 (A), and record the recovery capacity (Ah).
|
No deformation, expansion or other abnormal conditions;
Remaining capacity≥92%*initial capacity; recovery capacity≥94%*initial capacity
|
|
High temperature storage and recovery
|
1. Fully charge the battery according to 3.15.
2. Store the battery at 55±2℃ for 7 days.
3. Take out the battery and let it stand at 25±2℃ for 5h, discharge the battery to 2.5V with 1I1(A) current, and record the
remaining capacity (Ah).
4. Fully charge the battery according to 3.15.
5. Discharge the battery to 2.5V at a current of 1I1 (A), and record the recovery capacity (Ah).
|
No deformation, expansion or other abnormal conditions;
Remaining capacity≥92%*initial capacity; recovery capacity≥94%*initial capacity
|
Safety Performance:
|
Specifications
|
Testing process
|
standard
|
|
vibration
|
1. Fully charge the battery according to 3.15.
2. Fix the battery on the vibration test bench, and perform the linear sweep frequency vibration test under the following conditions: --- Discharge current: 1/3 I1(A) --- Vibration direction: up and down single vibration --- Vibration frequency: 10~55Hz --- Maximum acceleration: 30m/s2 --- Scanning cycle: 10 times --- Vibration time: 3h 3. Observe the battery phenomenon during the test. |
No current fluctuations, abnormal voltage;
No deformation, leakage or other abnormalities; |
|
Low pressure
|
1. Test temperature: 25±2℃.
2. Fully charge the battery according to 3.15. 3. Put the battery into the low-pressure box and keep the air pressure at 11.6kPa, stand for 6h. 4. Observe the battery for 1h. |
No fire, explosion or leakage
|
|
Overcharge
|
1. Test temperature: 25±2℃.
2. Fully charge the battery according to 3.15. 3.Charge the battery with 1I1(A) current for 1h or the voltage reaches 5.5V. 4. Observe the battery for 1h. |
No fire or explosion
|
|
Over-discharge
|
1. Test temperature: 25±2℃.
2. Fully charge the battery according to 3.15. 3. Discharge the battery at a current of 1I1(A) for 90 minutes. 4. Observe the battery for 1h. |
No fire, explosion or leakage
|
|
Short circuit
|
1. Test temperature: 25±2℃.
2. Fully charge the battery according to 3.15. 3. Short-circuit the battery externally for 10 minutes, the resistance of the external circuit ≤5mΩ. 4. Observe the battery for 1h. |
No fire or explosion
|
