Seat Post Frog Ebike Battery 36V 10Ah Lithium Battery For Electric Bike
Seat Post Frog Ebike Battery 36V 10Ah Lithium Battery For Electric Bike
Lithium Battery Ebike Replacement 36V 10Ah Seat Post Electric Bike Battery
Frog Ebike Battery Description:
| Battery Type: | Li-ion 18650 |
| Nominal Voltage: | 36V |
| Nominal Capacity: | customized |
| Charge Cut-off Voltage: | 42V |
| Discharge Cut-off Voltage: | 28V |

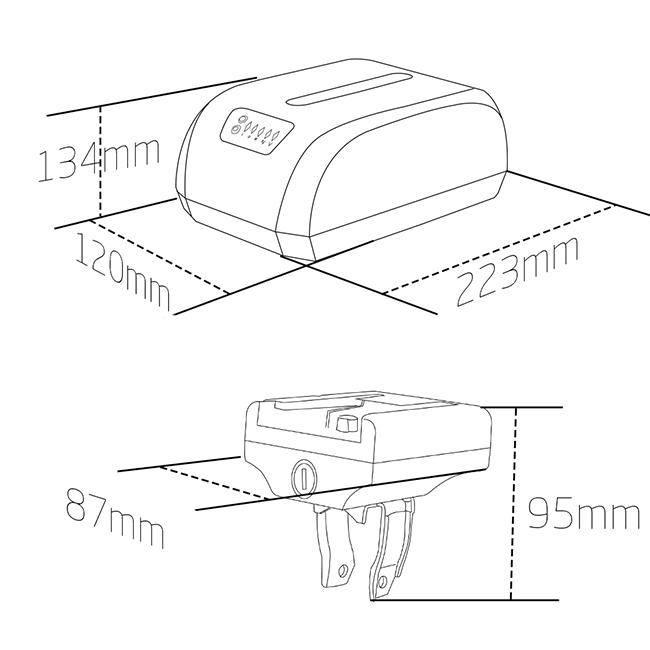

| Dimension: | 220*120*100mm |
| Standard charge current | 0.2C(2A) |
| Max Discharge Current: | 2C(20A) |
| assembly ways | 10S5P 18650 2500mah |
| Cycle Life: | 1000 times |
| Storage Temperature: | -5℃~35℃ |
| Warranty | 1 year |
Features:
Provide both single cells and battery packs
·100% inspection before delivery
·Inspects inner resistance, discharge platform and self-discharge
·IEC standard, capacity ranges from 120mAh to 200Ah
·Battery manufacturer of 18650 Lithium-ion battery, Lithium-polymer battery
·Established quality control systems under ISO 9001
·Customized packs, tags, labels, plugs, connectors, over current protection, temperature control protection are available
·Material: LiFePO4
·Nominal voltage: 48V
·Charge limited voltage: 68V
·Rated capacity: 20Ah
·Cycle life: over 800 cycles
·Standard charge time: 3-5H
·Fast charge time: 2-5H
·Charge temperature: 0 to +40°C
·Discharge time: -20 to +60°C
·Package: PVC jacket/PE bag/cardboard/cartons or according to the customer's requirements
Advantages:
1. Excellent frame design to keep the best shape and performance.
2. Best components to keep the best performance. , Shimano Derailleur, KENDA/ChaoYang/Xinhanya tyre,Taiwan Prowheel Chain Wheel ,Al Alloy Frame ,etc.
3. The most competitive price to keep partners big margin profit.
4.Hidden Battery design
5.The rear lights are rechargeable
MOQ: 110 Pieces
Model: Land Cruiser Snow E-Bike 36V 10AH 350W/ 48V 10AH 750W
Fork: Semi Aluminum Locking Suspension fork
Handlebar: 620mm ZOOM Little Swallow Type
Grip: Ergonomic Designed Grip
Seat Cyrusher: Ergonomic Designed Saddle
Seat Post: A60601 Aluminum
Kickstand: Aluminum Adjustable Kickstand
Rear Derailleur: SHIMANO TX500
Finger Transmission:ShimanoTX30
Pedal: Aluminum Pedal
Bike Computer LED Screen: Speed / Total Miles / Battery / Front Light / Watt
Throttle: 5 Stars Pro Li-battery e-bike throttle handlebar
Brake Lever: 5 Stars Pro Li-battery e-bike throttle power off brake lever
Brake System: Ake disc brake of oil brake system
Chain Sprocket: Aluminum Haomeng Pro MTB
BB: BB Zhiqing Integrated BB Sealed
Freewheel: SUNRUN-7 Speeds
Tire: 26*4.0 inch
Rim: Magnesium alloy 3 Spokes Integrated Sealed Hub with QR
Motor: Dingba high speed motor 36v/48v rated power 350/750w
Battery: 36V*10AH,48V*10AH Battery Cell (Removeable)
Controller: Kunteng Controller
Front Light: LED Light
Speed: 35-55km/h
Travel Distance: 35KM / Rider Flat Road Condition
Pedal Assist: Yes, 5PADs
Net Weight: 30KG
Packing Box Weight: 5.0KG
Gross Weight: 35KG
Product Size: 188*172*113cm
Packing Size: 156*28*86cm
Warranty: 1 year
Color: Black / Gray / White (customized)
Application:
(2)Performance:high voltage and light weight make motors acceleration speed performance better
(3) Energy density per volume are higher : highly reach 227wh/L
(4) Energy density per weight :80wh/Kg
(5) Stable BMS system with short-circuit protection ,over-charge protection ,over-discharge protection and over-current protection functions .
(6) With at least More than 1000times cycle life
(7) It can run well under different temperature environment condition
(8) No memory effects.
(9)Suitable for electric bicycle ,electric bike etc .
Packaging & Shipping
Packing Detail: Battery cell with plastic bag,10pcs/Box,16Box/Carton
Delivery Detail: 5-7 working days after your deposit is confirmed
Port : FOB Xiamen
Payment Terms: Paypal,T/T,Western Union,L/C
Electrical Performance Parameters
Rated Voltage 48V
Rated Capacity 20AH
Watt Hour 1000WH
Internal Impedance ≤280mΩ
Cycle Life ＞500 times @0.2C 80%
Monthly Self-discharging＜3%
Charging Efficiency 100% @0.2C
Discharging Efficiency 96～99% @0.2C
Charging Parameters
Charging Voltage 54.6V ±0.02V
Charging Method 0.2C Constant Current, 54.6V Constant Voltage,continue charging till current to ≤0.01
Charging Current 0.2C
Maximum Charging Current 1C
Discharging Parameters
Maximum Operating Current 2C/15A
Maximum Peak Current 60±10A
Discharging Cut-off Voltage 39V
Standard Discharging
Charging Temperature 0～45℃
Discharging Temperature -10～60℃
Storage Temperature -20～25℃ 60±25% R.H.
Environment
Battery Shell : frog battery
Dimensions 257L*148W*150Hmm±2mm
Net Weight 2.5KG
Packaging Details
Standard export packing, 1 packs per box and 30 boxes per carton
According to the customers requirements.
The products are packed in antistatic bags for electric scooter removable battery
Delivery Time:Li-ion battery pack shipped in 7 days after payment
Customized Electric Bike Li Ion Battery Lithium Ion Battery Pack For Ebike
We are Lithium Ion Battery, E-Bike Battery, Lifepo4 Battery, Polymer Battery Manufacturers
