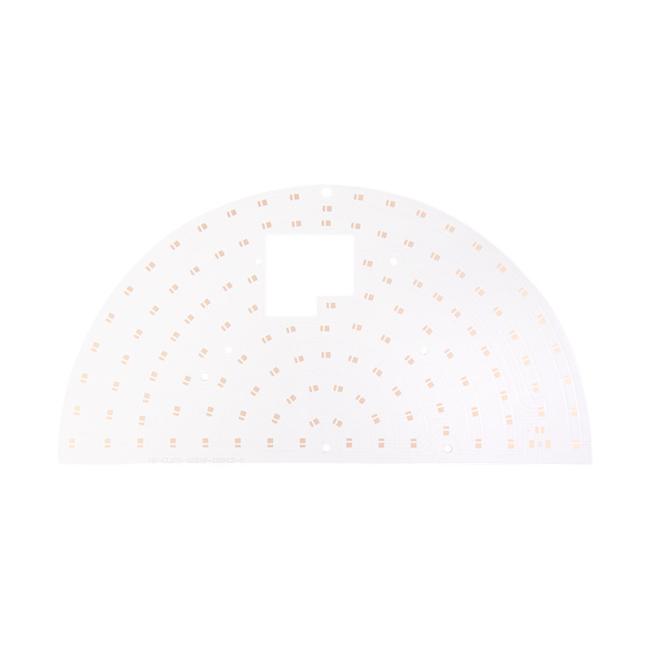

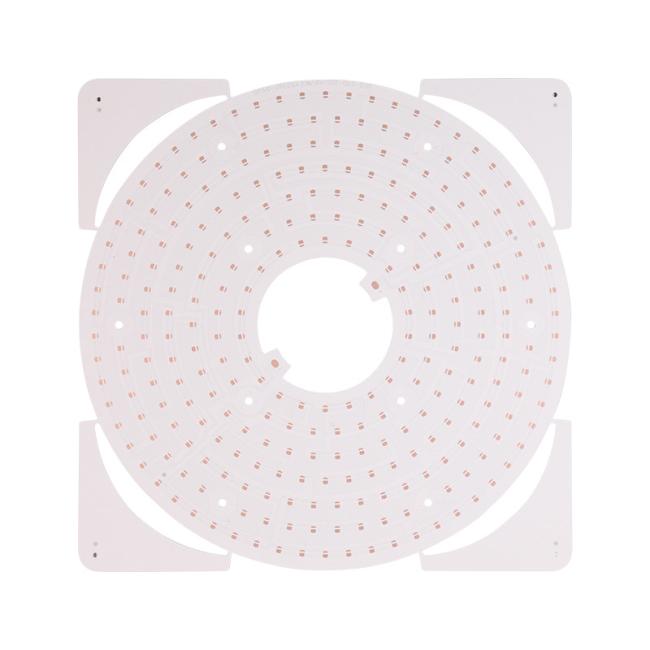

Voltage 160V 280V LED Light Circuit Board Aluminium Prototype
Voltage 160V 280V LED Light Circuit Board Aluminium Prototype
Shenzhen pcb design prototype aluminium pcb circuit board Led light pcb boards
The aluminum substrate is a metal-based copper-clad plate with good heat dissipation function. Generally, the single-sided board is composed of a three-layer structure, which is a circuit layer (copper foil), an insulating layer, and a metal base layer. Aluminium board PCB is common in LED lighting products. There are two sides, the white side is soldered with LED pins, and the other side shows the original color of aluminum. Generally, it will be in contact with the thermally conductive part after applying the thermal conductive paste. Currently, there are ceramic substrates, and so on.
|
LED light PCB
|
||||
|
Layer
|
Single-side, Double Side
|
|||
|
Board thickness
|
0.8, 1.0, 1.2, 1.5, 1.6, 2.0
|
|||
|
Board Thickness Tolerance
|
±10%(>1.0mm) ±8%(<1.0mm)
|
|||
|
Voltage
|
160-280V
|
|||
|
Silkscreen
|
White, Yellow, Black
|
|||
|
Warranty
|
2 years
|
|||
|
Base Material
|
Aluminum
|
|||
|
Package
|
Vacuum Package
|
|||
Shenzhen Yizhuo electronics Co.,Ltd is a high-tech enterprise. Since its establishment in 2012,
it has been committed to the innovative development and production of electronic products.
Now it has established a stable R&D team and it has had more than 5,000 square meters of production site.
Our Services:
1). PCB development and design;
2). PCB manufacturing from 1 to 32 layers(Rigid PCB,Flexible PCB,Ceramic PCB,Aluminum PCB);
3). PCB Clone;
4). Component sourcing;
5). PCB Assembly;
6). Write program for customers;
7). PCB/ PCBA Test.
Our factory passed ISO 9001:2015 international quality management system,CE,SGS,ROHS and UL international certification.
FAQ:
Q1. What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.
Q2. How about the Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
Q3. Do you have any minimum order quantity (MOQ) requirement?
A: No, we do not have MOQ requirement, we can support your projects starting from prototypes to mass productions.
