100W 120W 500W 1000W 3030 LED Grow Light MCPCB Board
100W 120W 500W 1000W 3030 LED Grow Light Metal Core Printed Circuit Board
1. Introduction
As a kind of single-sided Aluminum PCB, LED PCB is widely used in street lamps, LED lamps, and household lamps.
2. Material: Aluminum-base PCB
| Item | Unit | Specification | Test condition | |
| Insulation thickness | um |
Max Min |
200 60 |
— |
| Solder resistance (288℃) | Sec. | Min | 600 | IPC-TM-650 2.4.13.1 |
| Thermal shock | 288℃10”/cycle | Min | 6 Times | IPC-TM-650 2.4.13.1 |
| Peel strength (Normal status) | lb/in | Min | 9 | IPC-TM-650 2.4.8 |
| Breakdown Voltage | V/mil | 750 | IPC-TM-650 2.5.6 | |
| Volume resistivity (Normal status＞E+14) | Ω · cm | 1.8*1015 | IPC-TM-650 2.5.17.1 | |
| Surface resistivity (Normal status＞E+12) | Ω | — | 3.5*1014 | IPC-TM-650 2.5.17.1 |
|
Dielectric constant 1 MHz Normal status 1 GHz Normal status |
— |
5.6 5.3 |
IPC-TM-650 2.5.5.3 2.5.5.5 2.5.5.6 |
|
|
Dissipation constant 1 MHz Normal status 1 GHz Normal status |
0.013 0.010 |
IPC-TM-650 2.5.5.3 2.5.5.5 2.5.5.9 |
||
| Water absorption | % | 0.2 | IPC-TM-650 2.6.2.1 | |
|
Thermal conductivity (measured on insulation layer only) |
W/m℃ | 1.0 | ASTM-E1461 | |
| Flammability | 94V-0 | Pass | IPC-TM-650 2.3.9 | |
| Tg | ℃ | 100 | IPC-TM-650 2.4.24 | |
| Td | ℃ | 410 | TBD (5wt% loss) | |
| MOT (RTI) | ℃ | 130 | UL746B | |
| CTI (Comparative Tracking Index) | V | ＞600 (PLC=0) | UL746E DSR |
3. Certification: UL, ROHS, Reach, ISO
4. Use range: Lighting, Automotive electronic equipment, Power supply, Electronic control, Computer equipment, Communication electronics etc.
5. What exhibitions have we participated in?
New Delhi Exhibition, Moscow Electronic Exhibition, etc.
6. Our Services
1. Quick response
2. Reasonable price based on good quality
3. Provide one-stop service (components, OEM)
4. Abundant inventory & Habitual material preparation
7. Payment method:
T/T, Paypal, credit card, Western Union, etc.

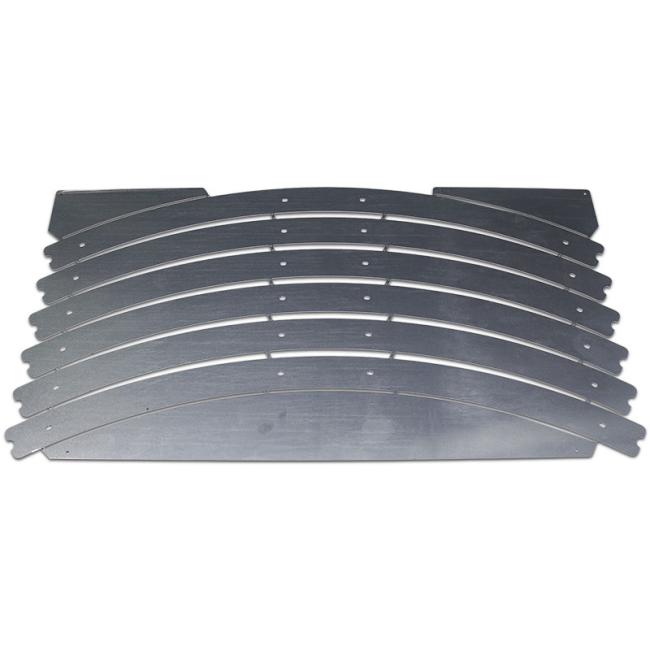

Aluminum PCB
The aluminum circuit board contains a thin layer of thermally conductive dielectric material, which has the effect of transferring heat.
An aluminum circuit board is also called aluminum base PCB, flexible aluminum PCB, metal clad printed circuit board (MCPCB), an insulated metal substrate (IMS or IMPCB), etc.
Structure of Aluminum PCB
The aluminum circuit board is composed of a unique layered structure.
Circuit Layer
The printed circuitry is etched with a 1oz-10oz copper layer to assemble and link the components, which can carry a higher current compared to FR-4.
Insulation layer
The main role of the insulation layer is insulation and thermal conductivity, it plays a central role in Aluminum PCB, which helps to disperse heat and reduce the operating temperature of the device to achieve increased power output, reduced volume, and extended life.
Metal substrates
The metal substrate can be selected according to the requirements of the thermal and mechanical conductivity of the Aluminum PCB, aluminum is the ideal choice, but also copper, stainless steel, iron, silicon steel, etc.
