Precision High Rigidity CNC Machining Center Taiwan Brand Check Team VMC850

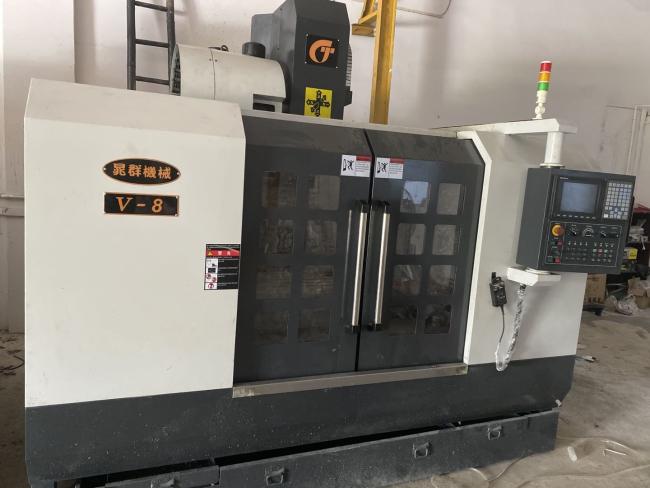

Taiwan Brand Check Tem V-8 CNC machine center VMC850
The performance characteristics of
◆High stability of the machine quality.
◆With CNC control system,high performance and high efficiency.
◆High acceleration positioning,the best torque acceleration and deceleration movement.
◆Three-axis thermal offset compensation function.
◆High speed and high rigidity 6000rpm/8000rpm spindle(optional).
◆Spindle specifications optional with BT40/BT50.
Main Features
1.High rigidity and high stability in machine structure
2.High precision three-axis feeding system

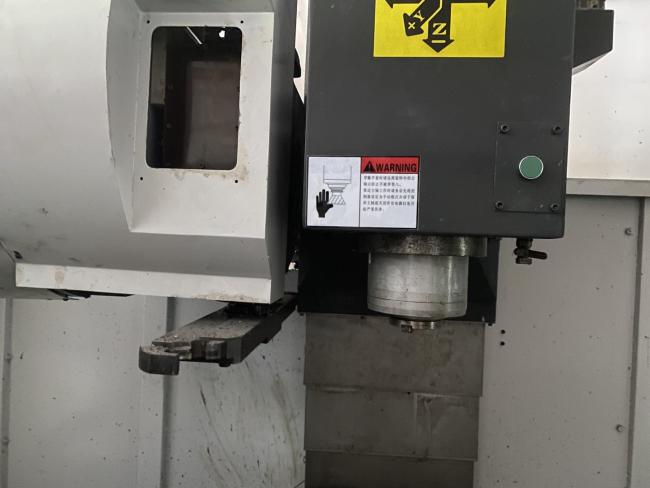

3.High speed precision spindle
4.Fast and reliable tool chaning mechanism
Standard Configuration
1.SIMENS 808D CNC system
2.Taiwan drum-type tool magazine capability 10 tools
3.Spindle speed is 6000 rpm
4.Automatic intermittent lubrication
5.Large flow coolant pump
Our Service
1. All the products have one year guarantee.
2. Providing professional installation instructions and video of troubleshoot.
3. We supply after sales service for 24 hours, 6 days per week. Customer can contact us any time.
- Product number check team 850
- Stroke ( X Axle) (mm) 800
- Stroke ( Y Axle)(mm) 500
- Stroke ( Z Axle)(mm) 500
- Distance between working table and Main spindle(mm) 680
- Distance beween spindle and Verical Guideway(mm) 125~725
- Working table size(mm) 800*500
- Max. load on table(kg) 550
- Spindle Taper hole on main axle(model/size) BT40
- Spindle speed(r/min) 8000
- Spindle motor power (kw) 7.5
- Max. travel speed on axle X(mm/min) 24000
- Max. travel speed on axle Y(mm/min) 24000
- Max. travel speed on axle Z(mm/min) 20000
- Max.cutting feed rate(mm/min) 15000
- Tool capacity 24
- CNC system FANUC Oi -MD
- Positioning Accuracy (mm) ± 0.003 mm
- Weight(kg) 6500
Use container to hold machine, always need 40ft HQ
Company Profile
Dongguan Jingzhan Machine Equipment Co., Ltd. is located in Dongguan City, Guangdong Province, China.
Jingzhan machine company has developed into a comprehensive company with multi-national operations.
The Company now has mainly covered several industries, namely plastic injection molding machine, CNC working center, milling machine, lathe machine, sewing machine and machine parts etc
In 2020, the Company has generated total sales revenue exceeding 5 Million US dollars, with products sold to customers over 30 countries and regions.Our
differentiated machine concepts not only meet the specific requirements of every important customer, but also generate further competitive advantages for our customers.
We provide full-service to our customers after our products are sold and ensure our customers receive prompt feedback and solutions.
We swear that every machine you''ll receive from us is in good condition.Looking forward to our long-term cooperation.
