FTTX Fiber Optic Splitter Box Waterproof Outdoor Distribution Cabinet 16 Core

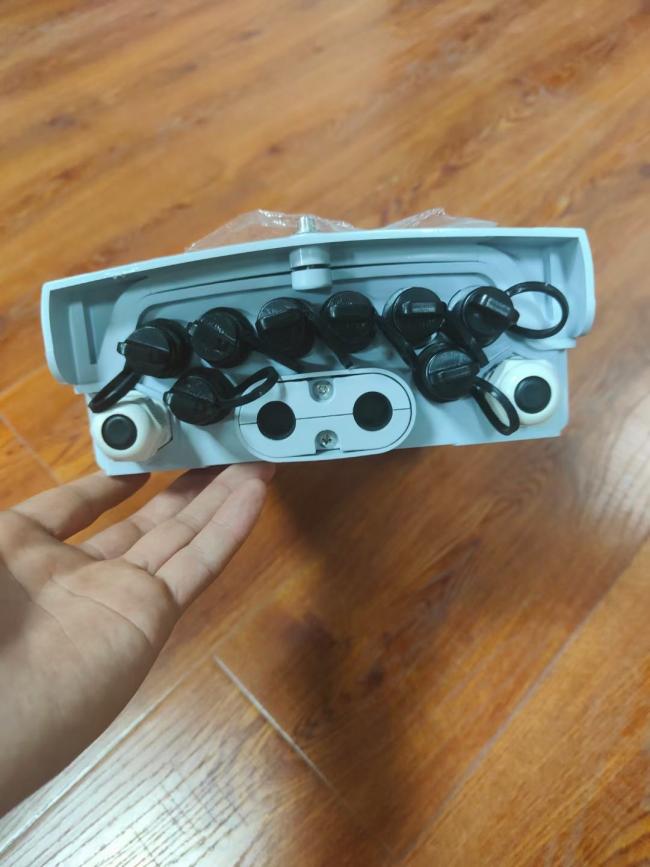

16 Core Waterproof FTTH Drop Cable Distribution Box FDB-0216R
Description
FDB-0216R fiber waterproof drop cable distribution box is able to hold up to 16 subscribers and 120 splicing point. It is used as a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
● Water-proof design with IP-65 Protection level.
● Integrated with flap-up splice cassette and adapter holder.
● Maximum 120F splice capacity,stainless anti-rust bolts and nuts.
● Easy for maintainance and expansion.
● Fiber bend radius control more than 40mm.
● 180 degree access with buckled lock structure.
● 2pcs of 1*8 PLC splitter can be installed
● 16pcs of pre-installed reinforced water-proof adapter for SC.
● 1 mid-span cable entrance(10-16.5mm) for uncut cable.
Application
- Wall-mounted installation
- Pole-mounted installation
- Aerial-hanging installation
- Suitable for Huawei Pre-connectorized drop cable with reinforced connector.
Specifications
| Material | Size(mm) | Max Capacity | Nos of adapter | Weight | Color | |
| PC+ABS | 340x220x95 | Splice 120 fibers | PLC splitter | 16pcs SC/UPC | 1.85kg | Grey/Black |
| 5 x24f/tray | 2 pcs of 1x8 | |||||
Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, cable tube, key, wrench, rubber seal for cable entrance.
Optional Accessories
Pole mounted kits.
