16 Core CTO ABS PLC Splitter Fiber Distribution Box for FTTH Drop Cable
Price:
Negotiable
MOQ:
10PCS
Delivery Time:
2-7 DAYS
Brand:
SKYLYNN or OEM, ODM
Product Description
16 Core CTO Pre-terminated Distribution Box FTTH Drop Cable Box
Description
The fiber optic distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be used in this box and meanwhile it provides solid protection and management for the FTTx network building.
Features
- Total enclosed structure.
- Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one.
- Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
- Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
Specification
|
Material
|
PC+ABS
|
|

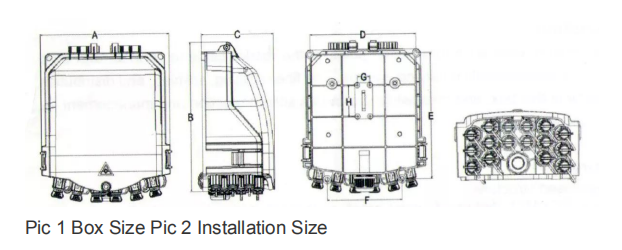

Dimension (Pic 1) A*B*C(mm)
|
208*241*117mm
|
|
Max Capacity
|
16 ports SC
|
|
Input cable diameter(mm)
|
Max 18mm
|
|
Color
|
Grey
|
|
Working temperature
|
-40℃~+85℃
|
|
Relative humidity
|
≤85%(+30℃)
|
|
Atmospheric pressure
|
70KPa~106Kpa
|
|
Installation Size(Pic 2)(mm)
|
D*E*F 179*212*126
|
Thunder-proof technical datasheet
1.The insulation resistance between the grounding device and the metal parts of the box is no less than 2 x 102 x 102MΩ/500V(DC);IR≥2x 102 x 102MΩ/500V
2.The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V
