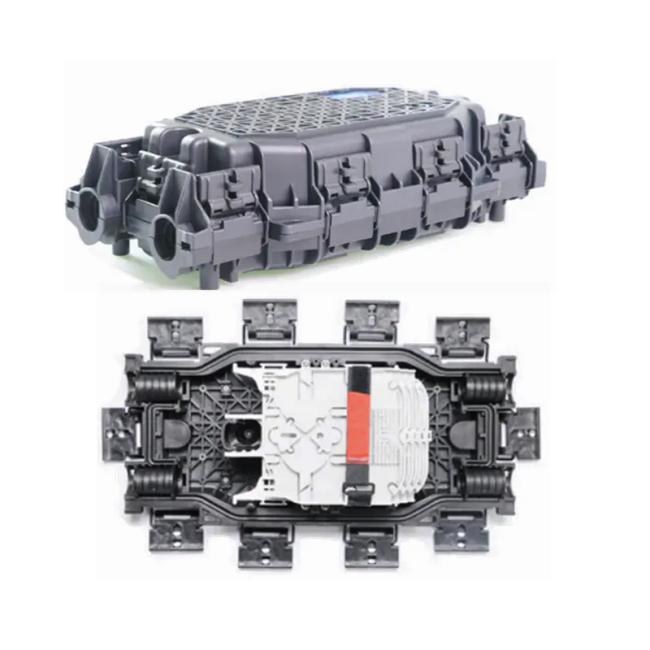

Fiber optic splice closure FOSC-5020H is a horizontal or inline type closure, 2 inlets and 2 outlets. It belongs to the mechanical pressure seal splice closure system, and it is widely used for the terminations of communication fiber optic cables.
Fiber optic closure is a passive component which can provide a great protection for fiber splicing point. Aerially assembling, pipeline assembling and buried underground are all available. The Inline type closure is also called Horizontal closure. The input and output are on the both sides. Inline closure is more suitable for backbone application. Faso provides various shapes closure of Inline type. All the closures we offered are with a great sealing performance. High quality plastic material also ensures the durability whether the closure is in air, in pipeline or buried underground.
FEATURES
-
Easy to assemble
-
Aerial and wall-mounting.
-
Suitable for Φ5mm~Φ23mm cables
-
Aerial, underground, pipeline,man-holes,hand-holes assembling
-
The protection grade reaches IP 68
-
The closure is of small volume, big capacity and convenient maintenance.
-
The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
-
The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.
-
The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually.
-
Adapt to the ambient temperature from -40℃ to +65℃
TECHNICAL PARAMETERS
-
Working temperature: –40℃ to +60 ℃
-
Atmospheric pressure: 70~106Kpa
-
Normal temperature sealing performance: 72h, internal air pressure 70Kpa, without decrease.
-
High temperature sealing performance: 60 ℃168h, internal air pressure 70Kpa, without decrease.
-
Tensile strength: 1000N
-
Compressive strength: 2000N/10cm2 within 1 min
-
Insulation resistance: more than 10MΩ between metal parts or between metal parts and the ground
-
Dielectric strength: 15KV DC, 2min, without spark over and flying arc
-
Working life: more than 20 years
APPLICATION
-
Suitable for bunchy & ribbon fibers.
-
Aerial, underground, wall-mounting, hand hole-mounting, Pole-mounting and duct-mounting
MAIN COMPONENTS
|
Name of Components |
Quantity |
Usage |
Remarks |
|
Housing (bottom) |
1 set |
Protecting fiber cable splices in whole |
Internal diameter: 370*178*52 (mm) |
|
Housing (cover) |
1 set |
Protecting fiber cable splices in whole |
Internal diameter: 370*178*52(mm) |
|
Splice Tray (FOST) |
|
Fixing heat shrink protective sleeve and holding fibers |
N/A |
|
Seal Fitting |
1 set |
Sealing between FOSC cover and FOSC bottom |
N/A |
|
Ring |
8 sets |
N/A |
N/A |
|
Port Plug |
4 pieces |
Sealing empty ports |
N/A |
|
Fixed Bolt |
1 set |
Fixing the housing |
N/A |
SPECIFICATIONS
| Outside Dimensions (L*W*H) | 370*178*106mm |
| Weight (excluding outside box) | 2050g - 2200g |
| Number of Inlet / Outlet Ports | 2 pieces on each side (total 4 pieces) |
| Diameter of Fiber Cable | Φ8mm - Φ20mm |
| Capacity of FOSC | Bunchy: 12 cores - 96 cores |
| Ribbon: max. 96 cores |
