288 Core Optical Fiber Splice Closure Fiber ABS Case 24F 12F
High resistance 144 Core Horizontal Fiber optic cable splice joint closure
Description
Fiber optic splice closure FOSC-1009 is a horizontal or inline type closure, 2 inlets and 2 outlets. It belongs to the mechanical pressure seal splice closure system, and it is widely used for the terminations of communication fiber optic cables.
The FOSC is suitable for protecting fiber cable splices in straight-through and branching applications. It can be placed in aerial, underground direct buried, wall mounted, manhole and duct applications.
Based on an advanced formula, the plastic parts are made of injection-molded, high-strength engineering plastic by numerical control equipment, therefore effectively preventing products from aging caused by coldness, heat, oxygen and ultraviolet radiation.
The strong housing and main components provide fire-resistant, water-proof, and quake-proof while protecting splices during pulling, tensioning and impacting.
It ensures long-term reliability and usage under ambient temperature from -40℃ to +80 ℃
Feartures
-
Advanced internal structure design
-
The closure is spacious enough for winding and storing fibers
-

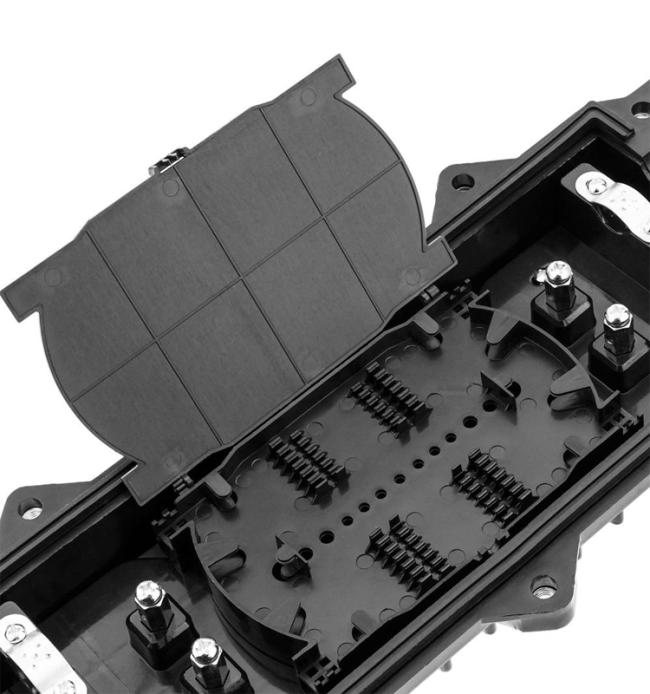

Flip style fiber splice trays are designed
-
The curved radius meets with international standard
-
Easy and fast to increase and reduce splice tray
-
Innovative elastic integrated seal fitting
-
With the function of reuse and capacity expansion
-
Robust long-term environmental stability
Technical Parameters
-
Working temperature: –40℃ to +60 ℃
-
Atmospheric pressure: 70~106Kpa
-
Normal temperature sealing performance: 72h, internal air pressure 70Kpa, without decrease.
-
High temperature sealing performance: 60 ℃168h, internal air pressure 70Kpa, without decrease.
-
Tensile strength: 1000N
-
Compressive strength: 2000N/10cm2 within 1 min
-
Insulation resistance: more than 10MΩ between metal parts or between metal parts and the ground
-
Dielectric strength: 15KV DC, 2min, without spark over and flying arc
-
Working life: more than 20 years
Application
-
Suitable for bunchy & ribbon fibers.
-
Aerial, underground, wall-mounting, hand hole-mounting, Pole-mounting and duct-mounting
Main Components
|
No. |
Name of |
Quantity |
Usage |
Remarks |
|
1 |
FOSC cover |
1 piece |
Protecting fiber cable splices in whole |
Internal diameter: |
|
2 |
FOSC bottom |
1 piece |
Fixing reinforced core, fiber cable and FOST |
Internal diameter: |
|
3 |
Fiber optic splice tray (FOST) |
max. 4 pieces |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy:6,12,24(cores) |
|
4 |
Integrated seal fitting |
1 set |
Sealing between FOSC cover and FOSC bottom |
|
|
5 |
Port plug |
2 pieces |
Sealing empty ports |
|
|
6 |

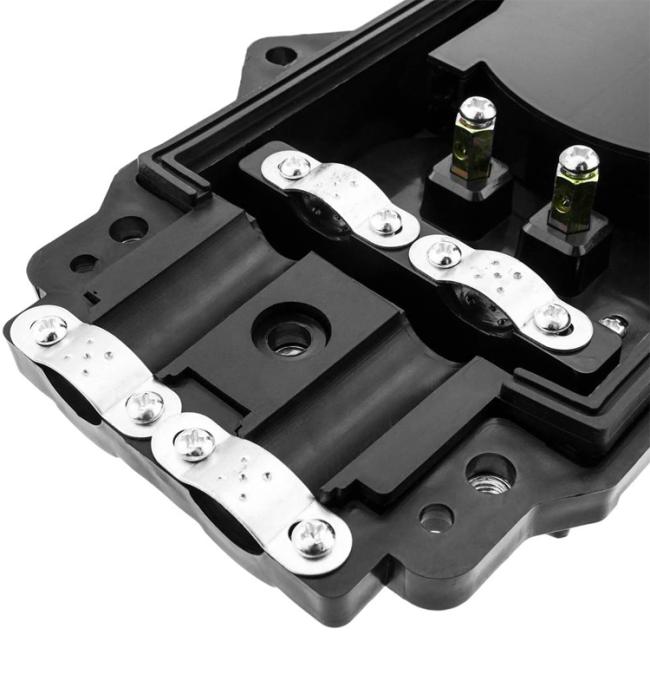

Earthing deriving device |
1 set |
Deriving metallic components of fiber cable in FOSC for earthing connection. |
Configuation as per |
Specifications
|
Outside dimension (Height x Diameter) |
460X180X110MM |
|
Weight (excluding outside box) |
2.5KG |
|
Number of inlet/outlet ports |
4 pieces |
|
Diameter of fiber cable |
Φ7mm~Φ16 mm |
|
Capacity of FOSC |
Bunchy: 12-144 (cores) |
