160KW Commercial EV Charger
Price:
negotiation
MOQ:
1
Delivery Time:
20-45 days
Brand:
Chargecore
Product Description

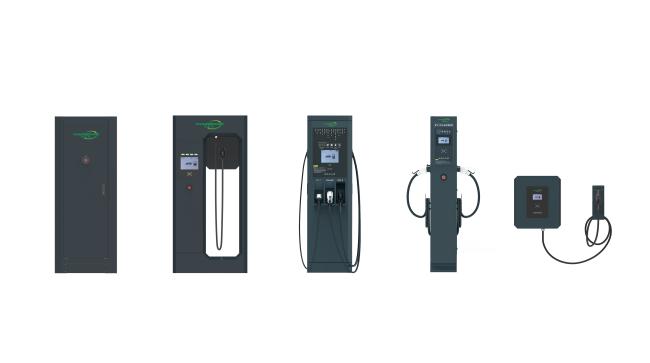

High Power 200-360kw Commercial Split Dc Ev Fast Charging Station
NKR-SDC60KW fast charger is developed mainly for public commercial use with its modern appearance design and user-3 friendly operation interface. The modular design and overall output power can be configured arbitrarily function can reduce the drive waiting time, enhance the utilization rate of the charger and also easy to operate and do maintenance.
Specifications
Split DC Modules:
|
Component
|
Description
|
|
Pilot controller
|
PC-ADCC-D charging controller + insulation detector
|
|
Power module
|
REG75050/ REG75035, Optional configuration: 24pcs
|
|
AC main input power distribution
|
Main breaker, Main contactor(optional), SPD, 1 ac adapter for maintain, Aux power AC input breaker
|
|
DC power distribution
|
Standard 60KW~480KW system.
The positive and negative DC outputs are provided contactors protection and the charger module
has a built-in discharge circuit.
|
|
AC connector distribution
|
AC connector breaker and contactor, type-B RCD
|
|
Temperature control system
|
Forced air cooling
|
|
Net communication
|
CAN bus
|
Split DC Charging Terminals:
|
Component
|
Description
|
|
Pilot controller
|
PC-ADCC-D charging controller + insulation detector
|
|
Upper controller
|
POC1.6-3352L upper controller
|
|
DC Charging gun
|
200A CCS-2 or 200A CCS-1 / 125A CHAdeMO
|
|
AC main input power distribution
|
Main breaker, Main contactor(optional), SPD, 1 ac adapter for maintain, Aux power AC input breaker
|
|
DC power distribution
|
Standard 30KW~120KW system.
The positive and negative DC outputs are provided contactors and fuse protection and the charger
module has a built-in discharge circuit.
|
|
AC connector distribution
|
AC connector breaker and contactor, type-B RCD
|
|
Temperature control system
|
Closed inner cycle
|
|
Card reader
|
RFID
|
|
Metering
|
2 DC energy meters
|
|
HMI
|
7-inch TFT touch screen display, 5 Panel LED
|
|
Net communication
|
wireless communication (WIFI/4G optional, insert the LTE modem card into Upper controller), 1 LAN,1 CAN bus
|
AC-DC cabinet (320kw)
|
Name
|
NKR-SDC(320kw)
|
|
Rated Power
|
320kw DC output
|
|
Input Voltage
|
3-phase 260-530Vac
|
|
Input Current
|
0-800A(max)
|
|
Input frequency
|
50/60hz
|
|
Output Voltage
|
150-750Vdc
|
|
Output Current
|
0-200A
|
|
Material
|
Sheet metal case
|
|
Size
|
1890*750*910mm(H*W*T)
|
|
Weight
|
570KGS
|
Charging piles (160kw 2guns )
|
Name
|
NKR-SDC (180kw 2guns)
|
|
|
Structure
Description
|
Application scenes
|
Parking lot/Public charging station
|
|
Size
|
1800*900*400mm(H*W*T)
|
|
|
Housing material
|
Metal case | |
|
Installation method
|
Floor-stand type
|
|
|
Cable routing
|
Bottom inlet wiring,up outlet wiring
|
|
|
Weight
|
150kg
|
|
|
Cable length
|
5meters
|
|
|
Charging gun number
|
2 (CCS2+CCS2)
|
|
|
Rated power
|
160kw
|
|
|
Measuring accuracy
|
Level 0.5
|
|
|
Output voltage
|
150~750Vdc
|
|
|
Output current
|
0 ~ 200Adc(limited by cable)
|
|
|
Efficiency
|
≥95%
|
|
|
Power factor
|
≥0.99
|
|
|
Function design
|
User Interface
|
Emergency stop button, LED indicator, card swiping, touch
screen
|
|
Charging standards
|
IEC 61851-1/IEC 61851-23/-24:2014/ISO15118-1-2013
ISO15118-2-2014/ISO 15118-3:2015/IEC 62196-1-2014
IEC 62196-3-2014/DIN 70121-2014
|
|
|
Communication
|
PLC, CAN, PWM, Ethernet, OCPP 1.6
|
|
|
Environment
condition
|
Application place
|
Indoor/Outdoor
|
|
Working temperature
|
-30 ° C ~ +70 ° C (Output degraded above 50° C )
|
|
|
Working humidity
|
5% ~ 95% without condensation
|
|
|
Altitude
|
<2000m (for sea level higher than 2000m, it can work but
charging speed will be lower according to the battery).
|
|
|
Protection grade
|
IP54/IK10
|
|
|
Cooling
|
Forced-air cooling
|
|
|
MTBF
|
100,000 hours
|
|
|
Safety standard
|
EN 61851-1-2001; EN 61851-21-2001; EN61851-22-2001
|
|
|
Security design
|
Over/under voltage protection, overload protection, current
leakage protection, grounding protection, over temp protection,
lightening surge protection
|
|
After-sale Service
1. Two years warranty for all parts. If any parts break during the period, we will provide free replacement.
Non-quality factor damage is not included.
2. One to one technical engineer support for installation&operation and communication connection assistance
between your app and our OCPP platform.
Additional Accessories for Options
1. Pestle.
2. Wifi connection to Internet.
3. 3g/4g/GPRS connection to Internet.
4. Customized cable length.
5. Customized Box color and customized logo
