One For Two UV Lamps UL Ballast Gph550t5 GPH436T5 Uvc Light Fixtures

PH6-425-2/18U UL Ballast One For Two UV Lamps

Product specification

PH6-425-2/18U

Input properties

⚫ Rated input voltage: 120V / 230V

⚫ Rated power frequency: 50 / 60Hz

⚫ Input voltage range: 99v ~ 264v

⚫ Maximum input power: 47w

⚫ Maximum input current: 0 21A@230V

⚫ Input power factor PF: > 0.98

⚫ Overall efficiency η:> 90%

output characteristic

⚫ Load lamp tube:

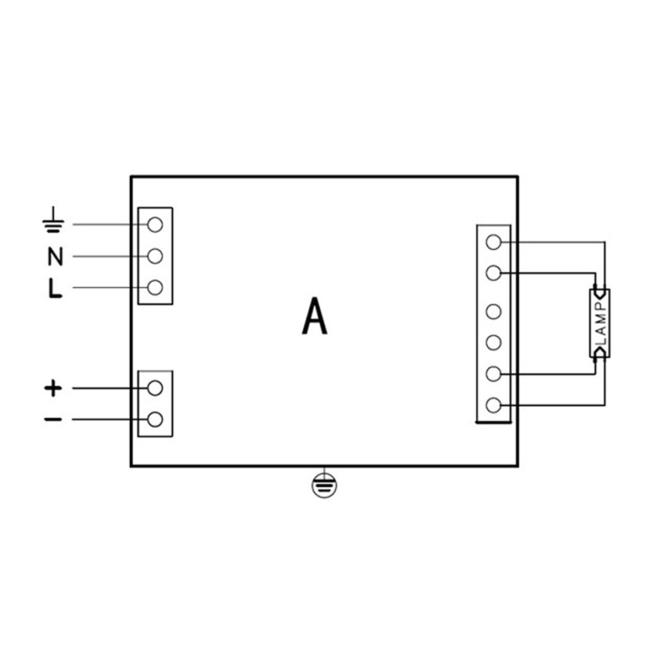

Single lamp: gph843t5, gph793t5, gph550t5,GPH436T5,G36T5L,TUVPL-L36W

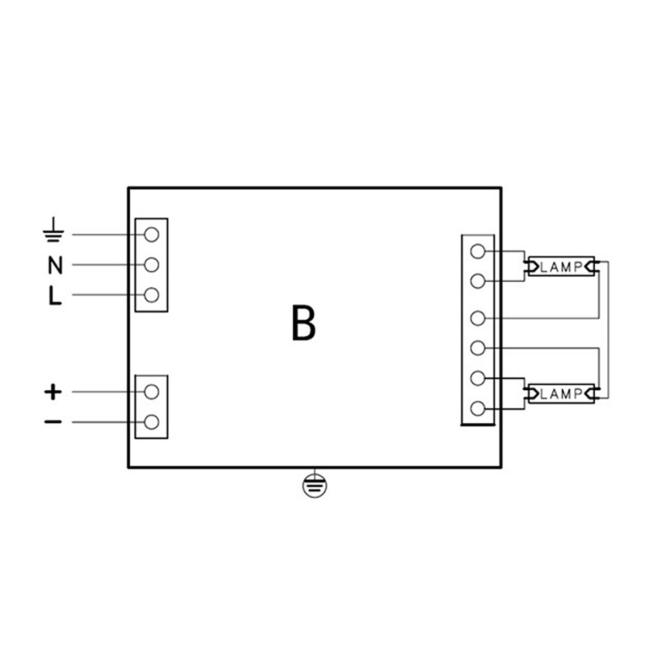

Double lamps: gph150t5, gph212t5, gph287t5.gph303t5, gph436t5, tuv11w, tuv16w

⚫ Output current: 0.38a ~ 0.43a

⚫ Startup mode: preheating startup, suitable for frequent startup

Preheating current 0.4A ~ 0.5A

Preheating time 3S ~ 5S

⚫ Lamp status indication function: 5VDC output. The lamp works normally and outputs 5VDC voltage. It can be externally connected with LED indicator. When the lamp goes out, it outputs 0vdc

Meet the following standards:

⚫ IP type: IP20

⚫ Certification: meet CE / UL / CCC

Working conditions

⚫ Working environment temperature: - 5 ℃ ~ 40 ℃

⚫ Humidity: 5% ~ 85%

product mix

⚫ Integrated structure

⚫ Shell material: Aluminum

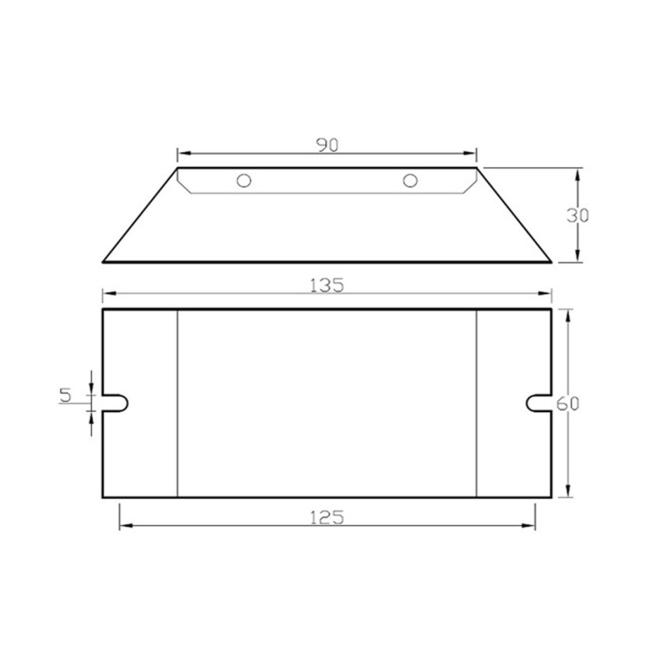

⚫ Installation dimension: 125mm

⚫ Ballast size: 135 * 60 * 30MM, net weight: 0.17kg

⚫ Outer box size: 460 * 270 * 190mm, quantity: 60pcs,

Gross weight: 11kg

Precautions for use

⚫ The wire diameter is 0.5 ~ 1.0m ㎡, and the stripping length is 8 ~ 10mm

⚫ The power supply must be cut off before installing and replacing the ballast

⚫ The connecting line between ballast and lamp tube shall not exceed 5m

Warranty period

⚫ The warranty is 2 years when the shell temperature is 70 ℃
