220V / 230V Universal Rapid Start Ballast , UL High Power Uv Light Fixture

PH10-5500-500 PH10-AL-800 Or 2/320 UL Ballast One For TWO High-Power UVC Lamp

Product specification

PH10-AL-800

Input properties

⚫ Rated input voltage: 220V / 230V

⚫ Rated power frequency: 50 / 60Hz

⚫ Input voltage range: 198v ~ 264v

⚫ Maximum input power: 834w

⚫ Maximum input current: 3 7A@230V

⚫ Input power factor PF: > 0.98

⚫ Overall efficiency η:> 90%

output characteristic

⚫ Load lamp tube:

⚫ Startup mode: preheating startup

Preheating current 7.0a ~ 9.0a

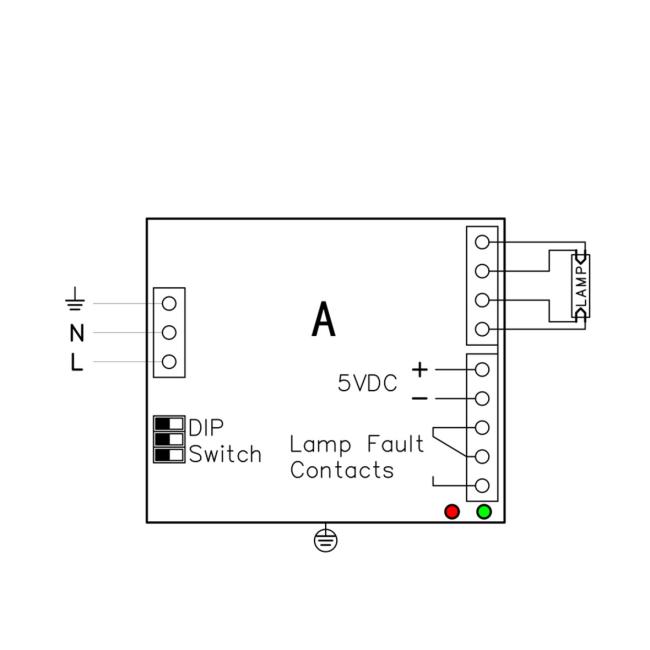

⚫ Lamp status indication function: switching value (dry contact), which can be connected to remote equipment to feed back the working status of lamp; 5VDC output, the lamp tube works normally and outputs 5VDC voltage. It can be externally connected with LED indicator. When the lamp tube goes out, it outputs 0vdc

Meet the following standards:

⚫ IP type: IP20

⚫ Certification: meet CE / UL / CCC

Working conditions

⚫ Working environment temperature: - 5 ℃ ~ 40 ℃

⚫ Humidity: 5% ~ 85%

product mix

⚫ European terminal structure

⚫ Shell material: Aluminum

⚫ Installation dimension: 238mm

⚫ Ballast size: 250 * 141 * 50mm, net weight: 1.12kg

⚫ Outer box size: 460 * 270 * 190mm, quantity: 9pcs,

Gross weight: 11.3kg

Precautions for use

⚫ The wire diameter is 1.0 ~ 1.2m ㎡, and the stripping length is 10 ~ 12mm

⚫ The power supply must be cut off before installing and replacing the ballast

⚫ The connecting line between ballast and lamp tube shall not exceed 5m

Warranty period

⚫ The warranty is 2 years when the shell temperature is 70 ℃
