LTC8T5 4-18w Ballast , Drinking Water Machinefield Double Ended Ballast

PW3-425-18 PW3-180-10 UL Ballast For 4~18W UVC Lamp Especially Applicable To Drinking Water Machinefield

Product specification

PW3-180-10A

Input properties

⚫ Rated input voltage: 110V / 120V

⚫ Rated power frequency: 50 / 60Hz

⚫ Input voltage range: 99v ~ 132v

⚫ Maximum input power: 12W

⚫ Maximum input current: 0 18A@120V

⚫ Input power factor PF: > 0.98

⚫ Overall efficiency η:> 80%

output characteristic

⚫ Load lamp tube:

TUV4W,TUV6W,TUV8W,PL-S 5W(4P),PL-S 7W(4P),PL-S 9W(4P),LTC4T5,LTC6T5,LTC8T5

⚫ Output current: 0.15A ~ 0.18a

⚫ Startup mode: preheating startup, suitable for water dispenser industry

Preheating current 0.2A ~ 0.3A

Preheating time: 0.6s ~ 1.0s

⚫ Lamp status indication function: red and green LED indication function. The green light is on when the UV light is working, the red light flashes when the UV light is off, and the buzzer alarms at the same time

Meet the following standards:

⚫ IP type: IP20

⚫ Certification: meet CE / UL / CCC

Working conditions

⚫ Working environment temperature: - 5 ℃ ~ 40 ℃

⚫ Humidity: 5% ~ 85%

product mix

⚫ Integrated structure, with 1m long black 4 * 0.5m ㎡ sheathed wire as standard, with G10q lamp holder

⚫ Shell material: plastic

⚫ Installation dimension: 160mm

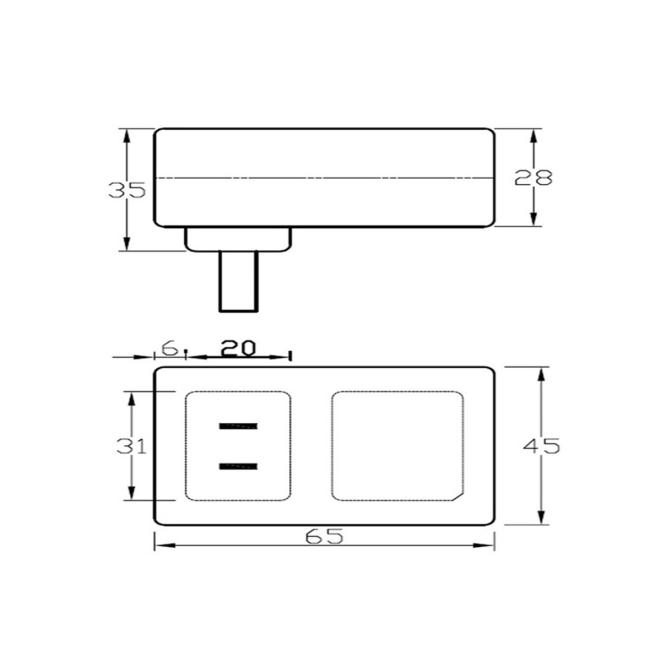

⚫ Ballast size: 65 * 45 * 28mm, net weight: 0.16kg

⚫ Outer box size: 480 * 260 * 245mm, quantity: 50pcs,

Gross weight: 9.5kgs

Precautions for use

⚫ The power supply must be cut off before installing and replacing the ballast

⚫ The connecting line between ballast and lamp tube shall not exceed 5m

⚫ The output line can be replaced with 4 * 0.5m ㎡, 4 * 18# etc. in addition, waterproof joints, dust covers, button plugs, etc. can be added to the output line.

The default output line length is 1m

Warranty period

⚫ The warranty is 2 years when the shell temperature is 70 ℃
