DC 12V 24V UV Lamp Electronic Ballast For Single Bulb Low Preasure

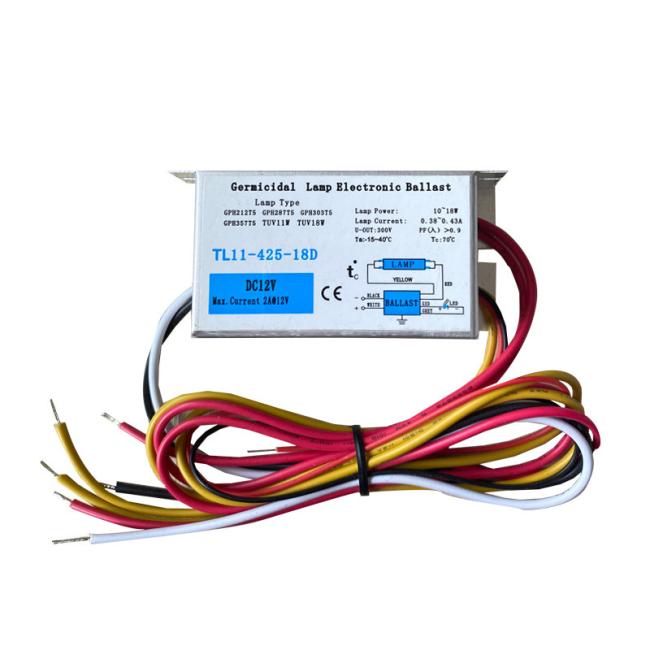

DC 12V 24V UV Lamp Electronic Ballast TL11-425-18D 10-18W​ FOR AIR Disinfection

Product specification
TL11-425-18D
Input properties
⚫ Rated input voltage: 12V
⚫ Rated power frequency: DC
⚫ Input voltage range: 10.8V ~ 13.2v
⚫ Maximum input power: 24W
⚫ Maximum input current: 2 0A@12V
⚫ Input power factor PF: > 0.98
⚫ Overall efficiency η:> 80%
output characteristic
⚫ Load lamp tube:
GPH212T5,GPH287T5,GPH303T5,GPH357T5,TUV11W,TUV18W
⚫ Output current: 0.38a ~ 0.43a
⚫ Starting mode: instantaneous starting, suitable for places with daily switching times less than 3 times
⚫ Lamp status indication function: 5VDC output. The lamp works normally and outputs 5VDC voltage. It can be externally connected with LED indicator. When the lamp goes out, it outputs 0vdc
With ground wire
Meet the following standards:
⚫ IP type: IP64
⚫ Certification: meet CE / UL / CCC
Working conditions
⚫ Working environment temperature: - 5 ℃ ~ 40 ℃
⚫ Humidity: 5% ~ 85%
product mix
⚫ American glue filling structure, power line 330mm long, output line and signal line 330mm long
⚫ Shell material: Aluminum

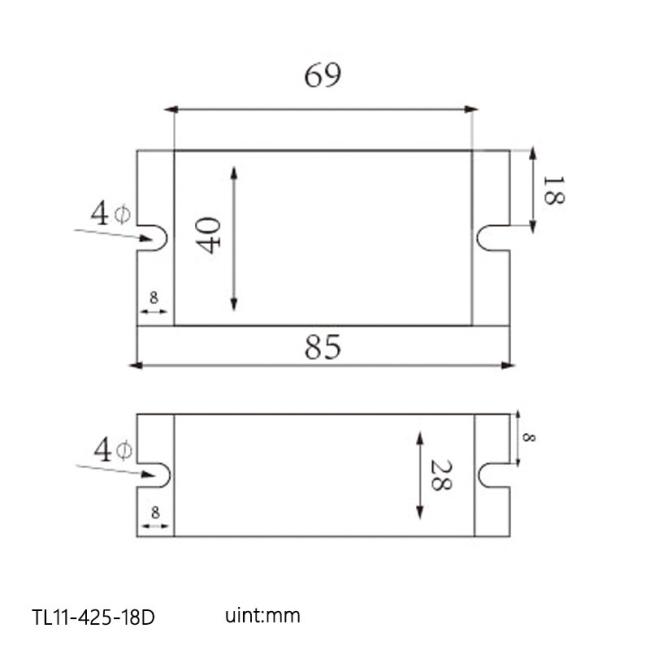

⚫ Installation dimension: 77mm
⚫ Ballast size: 85 * 43 * 27mm, net weight: 0.16kg
⚫ Outer box size: 460 * 280 * 140mm, quantity: 60pcs,
Gross weight: 11.0kg
Precautions for use
⚫ The power supply must be cut off before installing and replacing the ballast
⚫ The connecting line between ballast and lamp tube shall not exceed 1m
⚫ The filament must be short circuited
Warranty period
⚫ The warranty is 1 year when the shell temperature is 70 ℃
