560mm Hydraulic Cone Crusher
Price:
Price negotiable
MOQ:
1
Delivery Time:
5-8 work days
Brand:
Shanghai banghuai Heavy Industry Machinery Co., Ltd
Product Description
560mm Hydraulic Cone Crusher ore and high hardness rock crushing
1, Product description
The single cylinder hydraulic cone crusher is widely used in metal and non-metal mines, building materials, transportation, metallurgy, water conservancy and other industries, and it is suitable for medium and fine crushing of various ores, such as iron ore, non-ferrous metal ore, granite, limestone, quartzite, sandstone, river pebble, etc.
2, Technical Parameters
| Model | Cavity type | Feed size(mm) |
Discharge port adjustment range (mm) |
Processing capacity (T / h) | Power (kw) |
| GP100 | Coarse type | 130 | 20～50 | 80～190 | 75～90 |
| medium-sized | 90 | 16～40 | 60～125 | ||
| Fine type | 50 | 10～30 | 40～100 | ||
| GP200 | Coarse type | 250 | 20～70 | 160～280 | 132～160 |
| medium-sized | 160 | 16～50 | 120～230 | ||
| Fine type | 70 | 10～30 | 100～210 | ||
| GP300 | Coarse type | 350 | 30～80 | 200～500 | 220～250 |
| medium-sized | 200 | 20～60 | 160～355 | ||
| Fine type | 130 | 16～30 | 130～280 | ||
| GP500 | Coarse type | 500 | 40～120 | 350～800 | 280～315 |
| medium-sized | 350 | 30～80 | 260～650 | ||
| Fine type | 160 | 20～50 | 200～510 |
3, Product advantages
| 1 | The grain type is regular and the yield is high. |
| 2 | Strong crushing capacity. |
| 3 | Continuous and stable operation, and can prevent iron from mixing into the automatic overload protection. |
| 4 | High efficiency rotary feeding device makes liner wear evenly. |
| 5 | Automatic overload protection against iron mixing. |
4, Working principle
Composition: It is composed of upper frame, middle frame, lower frame, moving cone, eccentric sleeve, transmission device and hydraulic cylinder.
Rotation: The motor drives the horizontal shaft to rotate, the horizontal shaft drives the eccentric sleeve to rotate through the spiral bevel gear meshing, and the eccentric sleeve drives the moving cone to rotate and swing to achieve continuous crushing.
Granularity realization: The single-cylinder hydraulic cone crusher drives the main shaft to drive the movable cone to move up and down by adjusting the hydraulic cylinder at the bottom of the movable cone, and adjusts the distance between the movable cone and the fixed cone liner to control the product.
Overload protection function: When a foreign object (such as iron block) that is not easily broken enters the crushing chamber, the accumulator is triggered, and the hydraulic cylinder automatically causes the moving cone to fall, thereby releasing the iron block, continuing to crush, and protecting the crusher.

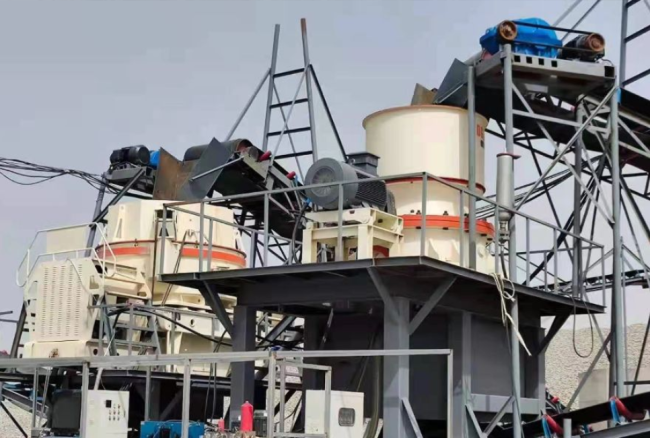

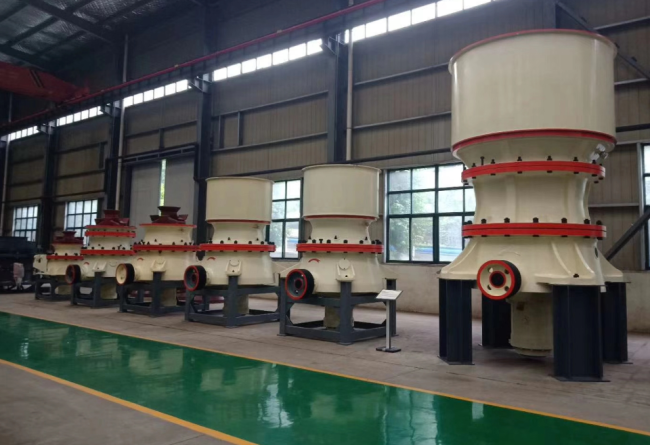

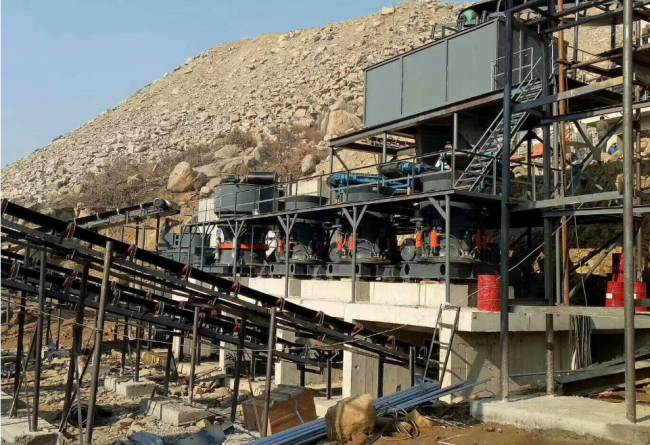

5, Factory manufacturing and scene
