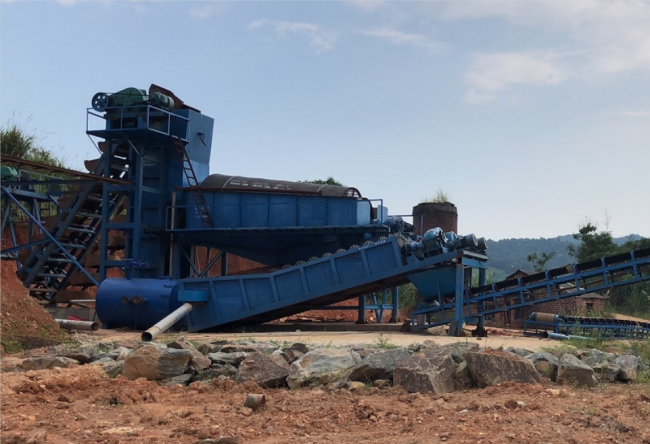

GTS 1845 Sand Washing Machines
Product description

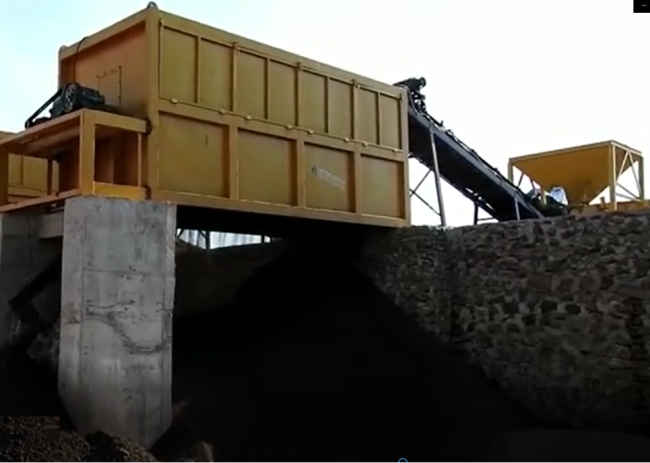

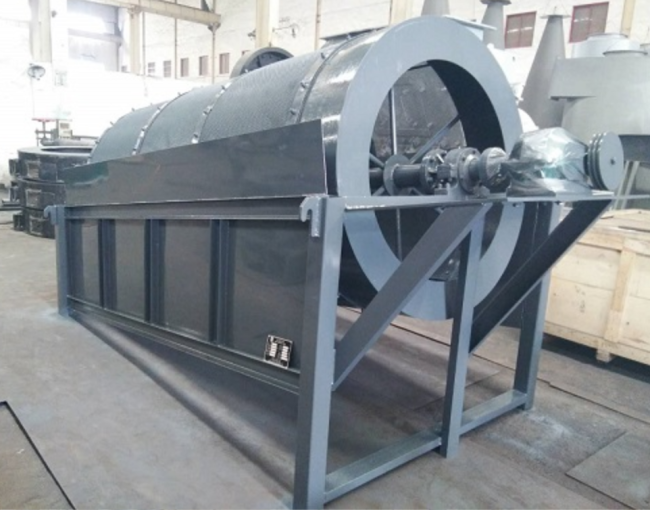

GTS1845 Vibrating Screen Machine Roller screenSand making screening and beneficiation
Linear vibrating screen is a multifunctional screening equipment, which can not only be used in various industries. It also has the characteristics of large output and high precision. It is more reasonable to customize it mainly according to the materials you need to screen. At the same time, it will easily achieve your screening purpose. It is composed of vibrating motor, screen box, screen, vibration transmission body and vibration damping device.
| Model | Deck demension (mm) | Maxfeeding Size(mm) | Angle(°) | Amplitude(mm) | Capacity(t/h) | power(kw) | Decks |
| SZF1030 | 1000x3000 | 0.074-10 | 0-7° | 4-8 | 5-7 | 0.75x2 | 1-5 |
| SZF1040 | 1000x4000 | 0.074-10 | 0-7° | 4-8 | 5-10 | 0.75x2 | 1-5 |
| SZF1230 | 1200x3000 | 0.074-10 | 0-7° | 4-8 | 10 | 1.1x2 | 1-5 |
| SZF1530 | 1500x3000 | 0.074-10 | 0-7° | 4-8 | 15 | 1.5x2 | 1-3 |
| SZF1540 | 1500x4000 | 0.074-10 | 0-7° | 4-8 | 20 | 2.2x2 | 1-3 |
| SZF1545 | 1500x4500 | 0.074-10 | 0-7° | 4-8 | 25 | 2.2x2 | 1-3 |
| SZF1845 | 1800x4500 | 0.074-10 | 0-7° | 4-8 | 35 | 3.7x2 | 1-3 |
| SZF2050 | 2000x5000 | 0.074-10 | 0-7° | 4-8 | 50 | 3.7x2 | 1-3 |
1. High screening precision, large capacity and simple structure
2. Low energy consumption, low noise, long screen service life
3. Good sealing, less dust overflow and convenient maintenance. It can be used for automatic operation of assembly line production.
The basic principle is to change the rotary motion of the motor into a horizontal, vertical and inclined three-dimensional motion by means of the weight (uneven weight) installed at the upper and lower ends of the motor shaft, and then convey the motion to the screen surface. If the phase angle of the upper and lower weights is changed, the moving direction of the raw material can be changed.
