ZSW ZSW490×110 Sand Screening Equipment 15kw Crusher Conveyor Belt
Product description
ZSW490×110 Model series Vibrating feeding machine sand screen ore separation belt conveyor crusher mine jaw crusher

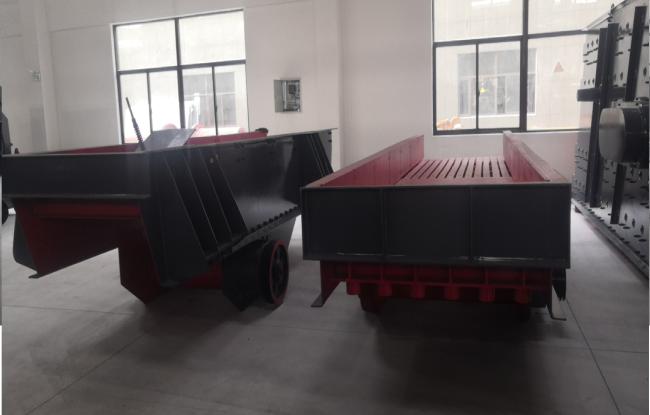

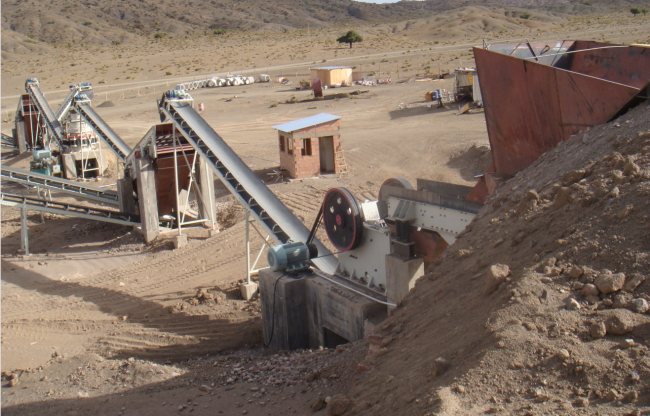

The vibrating feeder can feed block and granular materials from the storage bin to the receiving device uniformly, regularly and continuously during the working process. In the sand and gravel production line, it can feed the crushing machinery continuously and evenly. The materials are coarsely screened and are widely used in the crushing and screening combined equipment of metallurgy, coal mine, mineral processing, building materials, chemical industry, abrasives and other industries.
1. Adaptable
It has strong adaptability to various ore rocks, especially viscous ore rocks, and can work in dusty or water-rich environments with high adaptability and low investment.
2. Run smoothly
The double eccentric shaft is used as the excitation source, the amplitude is stable, the continuity is good, and the excitation force is adjustable, which can ensure the fluidity of the material.
3. Cost-effective
Small size, light weight, simple and compact, no rotating parts, less wearing parts, low investment, low power consumption and high cost performance.
| Model | Size of funnel (mm) | Maximum feed size (mm) | Capacity(t/h) | Speed (r/min) | Power (kw) | Overall dimension (mm) |
| GZD180×80 | 1800×800 | 300 | 30-80 | 970 | 1.5×2 | 2200×1100×800 |
| GZD250×75 | 2500×750 | 300 | 70-130 | 970 | 1.5×2 | 2500×1460×780 |
| GZD300×90 | 3000×900 | 300 | 80-150 | 970 | 2.2×2 | 3050×1430×1550 |
| ZSW380×96 | 3800×960 | 500 | 90-200 | 710 | 11 | 3880×2240×1880 |
| ZSW420×110 | 4200×1100 | 580 | 150-350 | 710 | 15 | 4300×2450×2010 |
| ZSW490×110 | 4900×1100 | 580 | 180-380 | 780 | 15 | 4980×2450×2010 |
| ZSW490×130 | 4900×1300 | 750 | 250-450 | 780 | 22 | 4980×2710×2050 |
| ZSW600×130 | 6000×1300 | 800 | 400-700 | 780 | 22 | 6160×2710×2050 |
The vibrating feeder is composed of a feeding chute, a vibration exciter, a spring support, and a transmission device. The vibration source of the trough vibration feed is a vibration exciter, which is composed of two eccentric shafts (active and passive) and a gear pair. Driven by the motor,the driving shaft works under the action of the triangular belt.next,gears on the driving shaft rotates the driven shaft ,so the rotation direction of driven shaft shall be contrary to that of driving shaft.in the process,the chute vibrates to convey materials continuously.
Technical Parameters.
