Product description

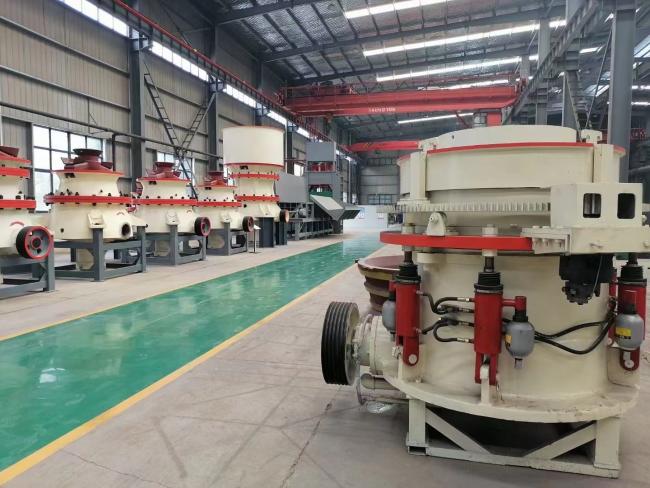

HP160 Jaw Cone Crusher Multi Cylinder Hydraulic Cone Crusher

      MultiCylinder hydraulic cone crusher is the most advanced technology at home and abroad High efficiency cone crusher, such as fixed spindle and eccentric, developed and produced .The optimized structure is greatly improved by the broken of the main shaft and the press.Performance and crushing performance, at the same time, the liquid of multi cylinder hydraulic cone crusher.

     The pressure lubrication system not only ensures the stable operation of the system, but also makes the system work.

1.   Strong processing ability and high work efficiency,Low energy consumption;

2.   Using the principle of lamination crushing, the finished product has good grain size and reasonable gradation;

3.   Simple structure, easy to operate and maintain,The adjustment of discharge port is convenient and quick;

4.   The equipment has strong bearing capacity, small volume, high efficiency and low noise.

     When the multi cylinder hydraulic cone crusher works, the motor passes through the belt pulley and the triangle belt.Drive the transmission shaft of the equipment to rotate, and the transmission shaft drives the eccentricity through the big and small bevel gears.The sleeve rotates around the main shaft, and the eccentric sleeve drives the moving cone to swing, so that the moving cone and   The fixed cone is sometimes close to and away from the wall of the rolling mortar, and the material is crushed on the wall of the rolling mortar.

     The crushing cavity formed by the wall is constantly crushed by extrusion and impact,Broken The material is discharged from the bottom
