Product description

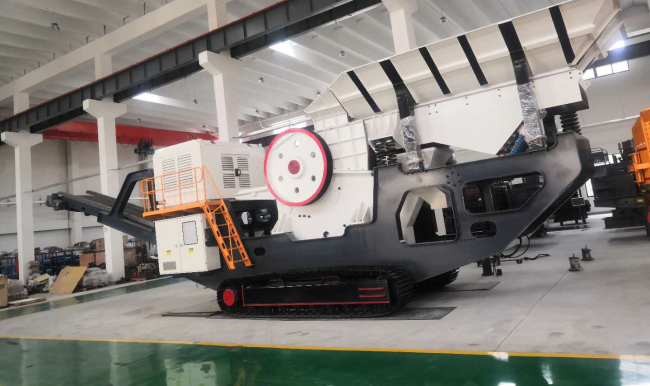

LD-PE750x1060 Model Crawler Mobile Crushing station mine beneficiation ore crushing
The products of crawler mobile station include crawler jaw crusher, crawler impact crusher, crawler cone crusher, crawler sander crusher, crawler screening station, roller screen and stacker reclaimer belt conveyor. Products are widely used in stone crushing, composting screening, construction waste treatment and recycling, landscaping, composting and wood recycling.

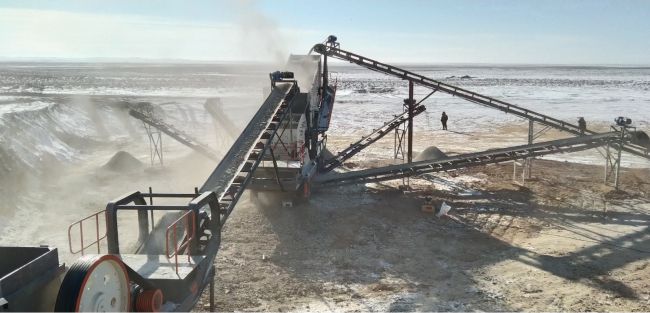

River pebble, mountain stone, limestone, granite, basalt, diabase, andesite, ore tailings, stone chips, etc.Crawler mobile crushing station is widely used in mines, coal mines, garbage and construction waste recycling, earthwork engineering, urban infrastructure, roads or construction sites.
| Items | Model | LD-PE600x900 | LD-PE750x1060 | LD-PEW860 |
| Viprating Feeder | Model | GZD960x3500 | GZD110x3800 | GZD1300x4200 |
| Motor Power(kw) | 11 | 15 | 18.5 | |
| Jaw Crusher | Model | PE600x900 | PE750x1060 | PEW860 |
| Motor Power(kw) | 75 | 110 | 132 | |
| Discharge Conveyor | Model | B800x10m | B1000x10.5m | B1200x11m |
| Belt Width(mm) | 800 | 1000 | 1200 | |
| Chassis Assembly |
Light duty general type |
Light duty general type |
Light duty general type |
|
| Crawler Tracks | Dimensions(L.W.H/Plate Width) | 3500x2800x820/400mm |
3800x2900x820/400 mm |
4080x3000x820/500 mm |
| Track Type | Light duty general type | Light duty general type | Light duty general type | |
| Power System | Diesel Engine |
Cummins engine 6BTAA5.9-C205 |
Cummins engine 6LTAA8.9-C300 |
Cummins engine 6BTAA8.9-C360 |
| Power(kw) | 150 | 220 | 260 | |
| Hydraulic System Power Source | Pumps mounted on power pack | |||
| Transport Dimensione |
121000mmx2980mm x3650mm |
13250mmx2980mm x4150mm |
14200mmx3160mm x4230mm |
|
| Weight | 44.5t | 59.8t | 63.9t | |
| Performance | Max.Feeding Size(mm) | 500 | 630 | 720 |
| Capacity(t/h) | 70-120 | 130-260 | 200-500 | |
| Travelling Speed(km/h) | 1.2 | 1.2 | 1.2 | |
| Max.slope-climbing capability | 20° | 20° | 20° | |
| Optional ltems | Side Conveyor | B500x3.5m | B650x3.5m | B650x4m |
| Lron Remover | PCYD(C)-8 | PCYD(C)-10 | PCYD(C)-12 | |
2. The effective dust removal system, suitable noise emission condition of diesel engine, and the release system can remotely control the hydraulic pressure to remove the obstacles in the crawler type mobile crushing station. The pre screening device can greatly improve the crushing efficiency.

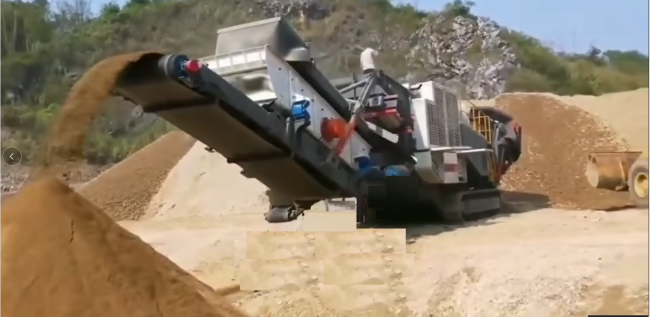

It adopts self driving mode with advanced technology and complete functions. In different terrain conditions, the equipment can reach any position of the workplace. This can reduce the material handling operation and facilitate the coordination of all auxiliary mechanical equipment. Through wireless remote control, the crusher can be easily driven to the trailer and transported to the operation site.
