Product description
PEX250X1000 Jaw crusher Cone crusher Stone crusher Mine crusher

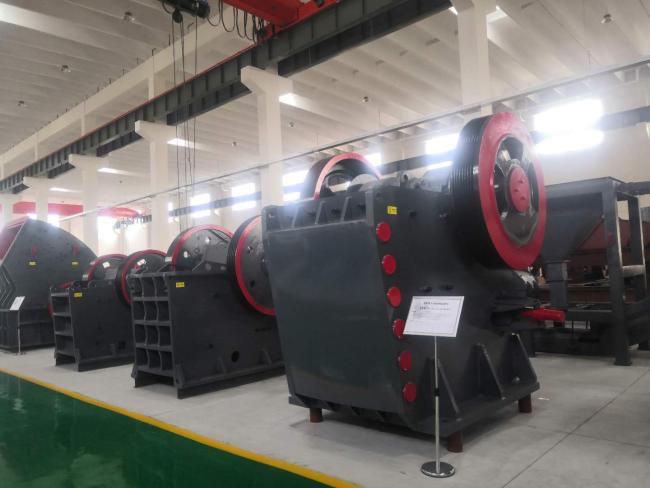

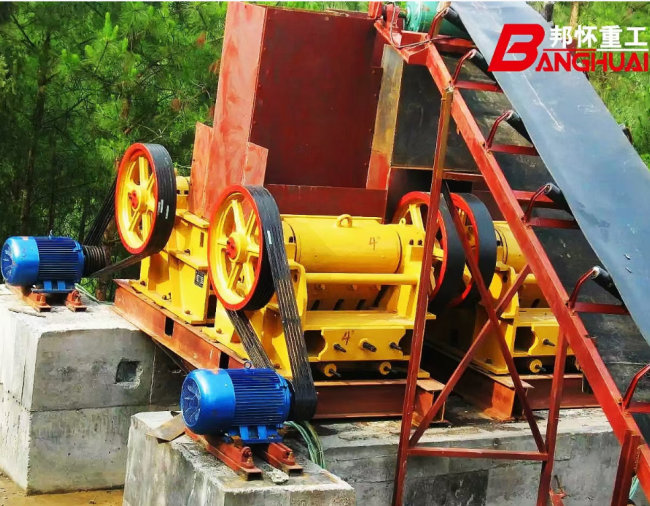

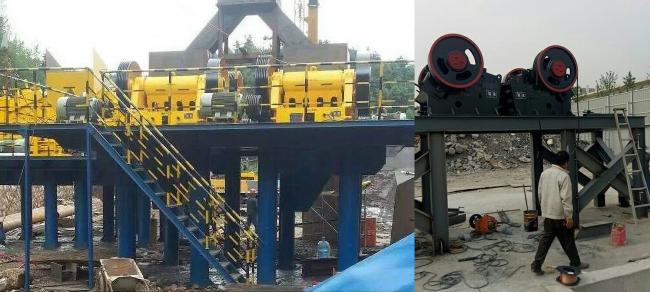

PE series jaw crushers are commonly known as jaw crushers. They are often used as primary crushers in various crushing production lines. This jaw crusher simulates the movement of the two jaws of an animal, extruding,twisting and grinding the materials in the crushing cavity though the opening and closing of two jaw plates(moving jaw and fixed jaw).
| Model | Feed inlet size(mm) | Max inlet size(mm) | Capacity(t/h) | Electric power(kw) | Overall size LxWxH(mm) | Weight(t) |
| PE150× 250 | 150× 250 | 125 | 1-5 | 5.5 | 875× 758× 850 | 0.81 |
| PE250× 400 | 250× 400 | 210 | 5-20 | 15 | 1450× 1315× 1296 | 2.8 |
| PE400× 600 | 400× 600 | 340 | 25-65 | 30 | 1565× 1732× 1586 | 6.5 |
| PE500× 750 | 500× 750 | 425 | 45-80 | 55 | 1892× 2054× 1853 | 10.1 |
| PE600× 900 | 600× 900 | 500 | 70-150 | 55-75 | 2520× 1840× 2303 | 15.5 |
| PE750× 1060 | 750× 1060 | 630 | 130-260 | 110 | 2620× 2302× 3110 | 28 |
| PE900× 1200 | 900× 1200 | 750 | 220-500 | 110-132 | 3789× 2826× 3025 | 50 |
| PE1000× 1200 | 1000× 1200 | 850 | 250-700 | 132 | 3889× 2826× 3025 | 57 |
| PE1200x1500 | 1200× 1500 | 1020 | 400-1000 | 160-220 | 4200× 3750× 3820 | 100.9 |
| PEX150x750 | 150x750 | 125 | 5-16 | 15 | 1200x1500x1200 | 3.8 |
| PEX250x750 | 250x750 | 210 | 15-30 | 30 | 1667x1545x1250 | 5.6 |
| PEX250x1000 | 250x1000 | 210 | 20-50 | 30 | 1530x1992x1380 | 7 |
| PEX250x1200 | 250x1200 | 210 | 25-60 | 37 | 1900x2190x1430 | 8 |
| PEX300x1300 | 300x1300 | 250 | 30-105 | 55-75 | 2720x1950x1600 | 11 |
| PEW250x1000 | 250x1000 | 220 | 15-50 | 37 | 1400x1850x1310 | 6.8 |
| PEW250x1200 | 250x1200 | 220 | 20-60 | 37 | 1400x20500x1310 | 7.8 |
| PEW400x600 | 400x600 | 350 | 15-70 | 37 | 1920x1460x1840 | 8 |
| PEW760 | 760x1100 | 620 | 150-350 | 110 | 2600x2500x2200 | 27 |
| PEW860 | 860x1100 | 720 | 200-500 | 132 | 3300x2320x3120 | 32 |
3, Product advantages
1, Good stability and high reliability
2, Simple structure and easy maintenance
3, Advanced technology and long service life
4, Large capacity and good grain shape
When the CS series high-efficiency cone crusher works, the motor drives the eccentric sleeve to rotate through the V-belt, large pulley, drive shaft, small bevel gear, and large bevel gear. The axis of the crushing cone rotates under the force of the eccentric shaft sleeve. , So that the surface of the crushing wall is close to and away from the surface of the rolling mortar wall from time to time, so that the material is continuously impacted, squeezed and bent in the annular crushing cavity composed of the fixed cone and the movable cone. After many times of extrusion, impact and bending, the material is crushed to the required size and discharged through the lower part.
