22kw Centrifugal Gold Concentrator Downward Moving Cone Diaphragm Jigs
Product description

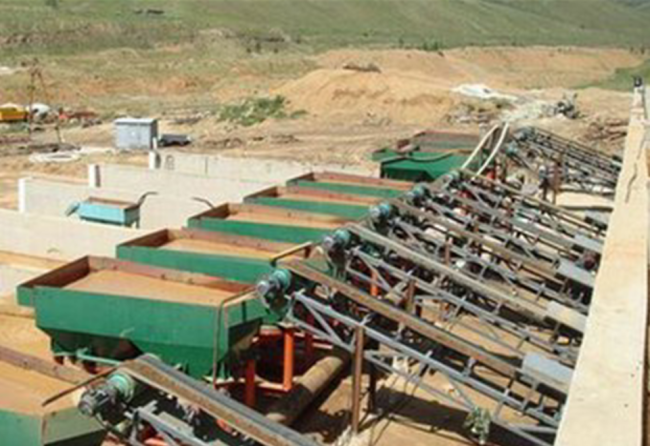

LTA jig Model series jigs are also known as downward moving cone diaphragm jigs.
LTA series jigs are also known as downward moving cone diaphragm jigs. This series of jigs are single row downward moving jigs. According to the number of downward moving cones, they are divided into two chambers and three chambers. The most commonly used is the downward moving double chamber diaphragm jigs. LTA series jigs have the advantages of small floor area, large processing capacity per unit floor area, significant beneficiation effect and convenient operation and maintenance. They are commonly used to separate hematite, limonite, Specularite, chromite, pyrite, tungsten tin ore, placer gold ore, placer tin ore, mercury ore, fluorite, celestite, barite and other minerals, The treatment of carbide slag also has a good effect.
Suitable for dry coal slurry, mineral powder, slag, sludge, clay, fly ash and other powdery, massive and granular materials.used for drying materials with certain humidity or particle size in mining, building materials, metallurgy, chemical and other departments.
| Model number | Coefficient of stroke | stroke(mm) | At times(time/min) | Feed particle size(mm) | Handling capacity(T/h) | Water consumption(T/h) | power(KW) | |
| LTA55/2 | 0.5 | 0-25 | 250-350 | 8 | 1-5 | 4-20 | 1.5 | |
| LTA1010/2 | 0.5 | 0-25 | 250-350 | 8 | 5-20 | 20-60 | 3 | |
| LTA1515/2 | 0.5 | 0-50 | 200-300 | 10 | 15-25 | 100-140 | 5.5 | |
| LTA2020/2 | 0.5 | 0-50 | 200-300 | 10 | 30-50 | 160-200 | 7.5 | |
| projects | Jigging chamber | The diaphragm | Feed particle sizemm | Sieve the water supplym3/t | Make-up pressureMpa | processingt/h | ||
| parameter | ||||||||
| Model number | shape | aream2 | strokemm | At times(times/min) | ||||
| JT0.57-1 | trapezoidal | 0.57 | (M12CAM)8.5—12 | 80-180 | <6 | 1-2 | ≥0.05 | 1.5-3 |
| (M17CAM)10—17 | ||||||||
| JT1-1 | trapezoidal | 1.04 | <10 | 2-3 | 2.5-5 | |||
| JT2-2 | rectangles | 2.28 | (M21CAM)12—21 | <10 | 2-4 | 5-10 | ||
| JT3-1 | trapezoidal | 3 | 12－30adjustable | 50-125 | <10 | 3-6 | ≥0.05 | 7.5-15 |
| JT4-2 | rectangles | 4 | 25－57Five kinds of CAM adjustable | <25 | 4-8 | 8-20 | ||
| JT4-2A | rectangles | 4 | 25－5Five kinds of CAM adjustable | <25 | 4-8 | 8-20 | ||
| JT5-2 | trapezoidal | 4.86 | 12-30adjustable | <10 | 3-6 | 12-25 | ||
| AM-30Technical parameters of jigging machine: | ||||||||
| Model number | Cross section form | The number of columns | Jigging room number | Jigging area(㎡) | Coefficient of stroke | stroke(mm) | At times | processing(T/h) |
| AM-30 | rectangular | Double row | 4 | 2.574 | 0.47 | 0-50 | 130-160 | 10-15 |
| XD4-2 | rectangular | Double row | 2 | 8 | 0-150mm | 1-50 | 150-280 | 40-50 |
1. Compact structure, small floor area, large capacity per unit area.
2. Eccentric linkage drive, sine wave jigging cycle curve, strong jigging water flow, large feeding particle size and large processing capacity.
3. Simple structure, convenient maintenance, safe and reliable operation.
4. It has the advantages of convenient adjustment, simple operation, normal operation and low operating cost.
