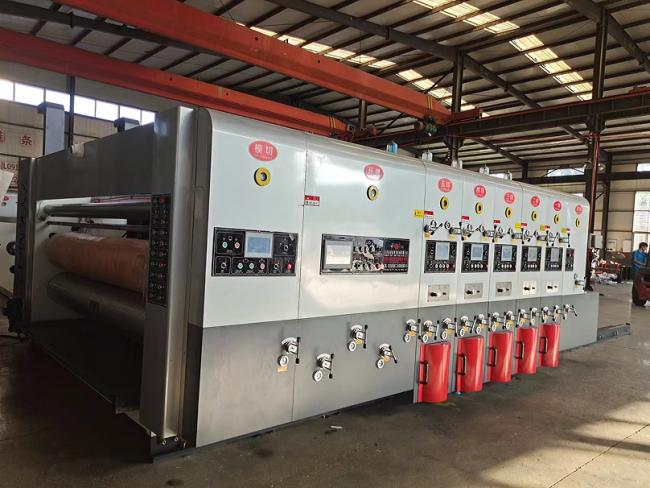

Corrugated Carton Box Machine Printing 4 Colour Flexo Die Cutting Slotting
Printing 4 Colour Flexo Die Cutting Slotting Corrugated Carton Box Machine
1. Adopt vacuum absorption, lead edge feeding paperboard, design and manufacturing, the whole operation is humanized design, can be set in a short time, modify, execute, replace, memory function, and accurate display.
2. Al transmission roller material, adopt high-quality steel, balanced correction, running smooth, surface grinding, hard chrome plating.
3. All gear drive, using high-quality alloy steel, heat treatment, grinding.
4.The oil automatic balance device, keeping each unit oil balance.
| Model | Unit | SYKM950 | SYKM950 | SYKM950 | SYKM4212 | SYKM4212 | |
| Design speed | pcs/min | 100/150/200 | |||||
| Economic speed | pcs/min | 80/130/160 | |||||
| Max.feeding size (mm) | mm | 950×1800 | 950×2200 | 950×2400 | 1300×2400 | 1300×2600 | |
| Min.size of paperboard | mm | 260×500 | 260×500 | 260×500 | 260×500 | 260×500 | |
Min. space of | Obverse knife | mm | 160×160×160×160 | 160×160×160×160 | |||
| Reverse knife | mm | 280×80×280×80 | 280×80×280×80 | ||||
| Max.depth of slot | mm | 240 | 240 | 240 | 300 | 300 | |
| Skip feeding size | mm | 1100×2000 | 1100×2200 | 1100×2400 | 1500×2400 | 1500×2600 | |
| Max.printing area | mm² | 950×1800 | 950×2000 | 950×2200 | 1250×2200 | 1250×2400 | |
| Plate Thickness | mm | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | |
