2600mm Automatic Box Stapler Machine 10kw For Cardboard Packaging Industry

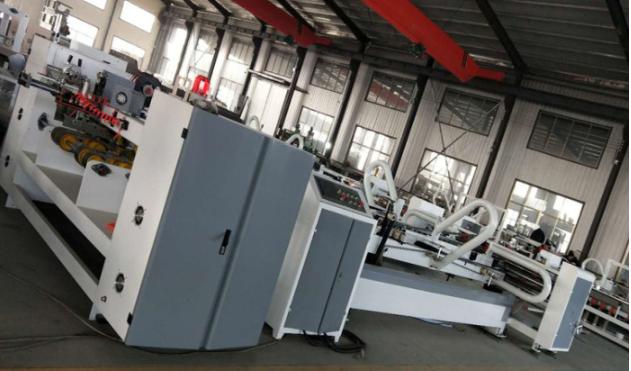

Corrugated Box Automatic Carton Stapler Stitching Machine
Automatic stapler machine consiste of three sections: feeding section, floding section, Nailing section. Digital display speed regulation, microcomputer amplitude modulation, simple, reliable and accurate control mode, automatic paper feeding, automatic folding, automatic counting.
Main specification
| RC-2400 | RC-2600 | RC-2800 | |
| size A (mm) | 80-880 | 80-880 | 80-880 |
| size B (mm) | 700-2420 | 700-2620 | 700-2820 |
| size C (mm) | 160-840 | 160-840 | 160-840 |
| size D (mm) | 260-1050 | 260-1150 | 260-1250 |
| Installation area(mm) | 3500*14000 | 4000*15000 | 4200*16000 |
| Power (kw) | 10kw | 12kw | 12kw |
| Weight(kg) | 5000kg | 5500kg | 6000kg |
| Speed | 600 nails/min | 600 nails/min | 600 nails/min |
Feature
1. Imported dual servo drive, accurate accuracy, reduced mechanical transmission, can effectively reduce the mechanical failure rate
2. Touch screen operation, parameters (nail distance, number of nails, seed sorting, back panel) change quickly and easily
3. The entire control system uses Omron PLC control system
