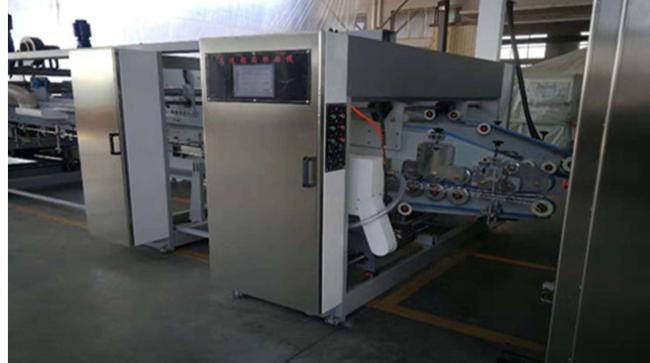

1600*2800mm Automatic Flexo Printer Slotter Die Cutter Folding Gluing Machine
High Speed Automatic Flexo Printer Slotter Gluer Strapping
This machine can achieve printing,slotting,die-cutting,folding,gluing ,strapping function one time, saving operators. It's a high speed, high efficiency, low consumption of carton production equipment.
|
Specification/ |
1800/2000*800 | 1800/2200*1000 | 2500*1200/1400/1600 | 2800*1200/1400/1600 | 3200*1600 | |
| Max speed (pcs/min) | 250 | 200 | 160/150/120 | 150/140/120 | 120 | |
| Min feeding size(mm) | 650*270 | 650*270 | 650*330/350/400 | 650*330/350/400 | 650*400 | |
| Skip feeding size(mm) | 1800/2000*1000 | 1800/2200*1200 | 2500*1400/1600/1800 | 2800*1400/1600/1800 | 3200*1800 | |
| Cardboard Thickness | 2-10 | 2-10 | 2-12 | 2-12 | 2-12 | |
| Max. printing size(mm) | 1750/1950*750 | 1750/2150*950 | 2450*1180/1330/1580 | 2750*1180/1330/1580 | 3150*1580 | |
| Print plate depth (mm) | 7.2 | |||||
|
Min slot |
Positive cut | 120*120*120*120 | 120*120*120*120 | 140*140*140*140 | 140*140*140*140 | 140*140*140*140 |
| Reverse cut | 200*80*200*80 | 200*80*200*80 | 240*70*240*70 | 240*70*240*70 | 240*70*240*70 | |
| Max die cutter area(mm) | 1700/1900*750 | 1700/2100*930 | 2400*1150/1310/1550 | 2700*1150/1310/1550 | 3100*1550 | |
function and characteristic
1. Computer order storage and adjustment, faster order update and convenient operation.It can storage the many orders in the computer.
2. All the transmission axle and roller are made by the high quality steel, temper, and dynamic balance; plated with rigid chrome and grinded surface.
3. All the transmission gear was used the 20 CrMnTi alloy steel.
