CE Carton Box 180pcs/Min Flexo Printer Slotter Die Cutter Machine

Price Negotiable

Price: negotiated

MOQ: 1

Delivery Time: 15-30 days

Brand: Hh

Product Description

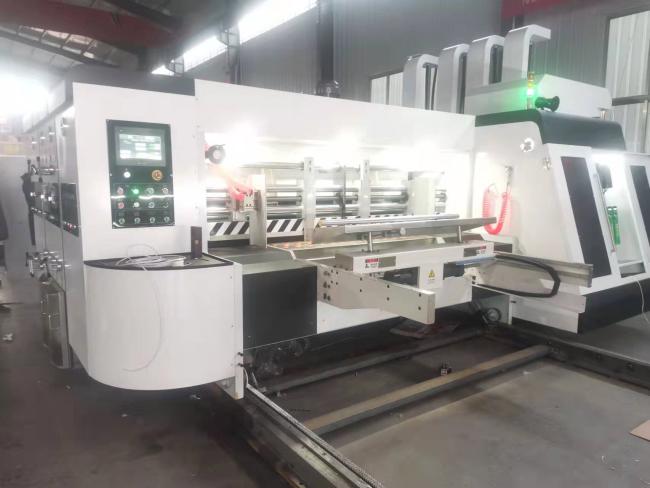

Carton Box Flexo Printer Slotter Die Cutter Machine

UNCTIONS AND CHARACTERISTICS

Complete machine wall board and other important pieces are all made by high precision process center
All transmission axle and roller are made of high quality steel with high precision dynamic balance ,plated with rigid chrome and grinded surface
The transmission gear adopt international standard 45# steel, which is grinded after heat-treatment ,hardness HRC45-52,after long use ,it still maintains the high topping precision
Whole machine main structure part using capt-lock union link, eliminated the link interval ,adapt to the long term high-speed printing
Machine adopt the spray lubrication style ,and have the oil self-balance device
Automatic return zero and auto reset

Wyazs name	Unit	ZYM1426		ZYM1626
Max paper coverage area	Mm	1400x2700		1600*2700
Effective printing area	Mm	1400x2600		1600*2600
Min finish size	Mm	350x650		400x650
Printing plate thickness	mm	6.0		6.0
Machinable cardboard thickness	layer	2-12		2-12
Max speed	Pcs/min	120		120
Economy speed	Pcs/min	80-100	80-100
Frequency conversion power of main motor	Kw	18.5	18.5
Wallboard	mm	40	40
