USB2.0 Full HD 3x PTZ Video Conference Camera 30fps 25fps Pan Tilt Zoom Camera

Price Negotiable
Price: Negotiable
MOQ: 1 piece
Delivery Time: 1-10 working days
Brand: Tongveo
Product Description

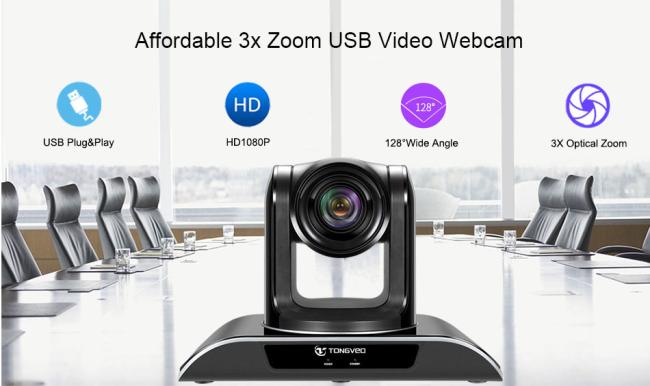

USB 2.0 Interface Full HD English 3x Ptz Video Camera



Introduction for VHD3U PTZ video camera

The TEVO-VHD3U Pan/Tilt/Zoom (PTZ) camera has a USB video output.
It is equipped with a l /2.7 inch HD Color CMOS with 2.1 mega pixel (16:9) and Full HD 1080p output resolution & a high dynamic image of 30 fps.
The superior 3x optical zoom lens, excellent white balance, and exposure mode delivers a dear image even in low light or the extreme contrast of brightness and darkness in a conference room The camera covers a wide shooting angle and achieves high-speed. quiet, and precise positioning with smooth PTZ operations.
There are up to 255 preset setting movements and stable remote controlling for displaying effective and efficient presentations.
The TEVO-VHD3U is applicable for video conferencing in a small conference room.





VHD3U Parameters
Image Sensor 1/2.7 inch HD Color CMOS
Effective pixel 2.1 mega pixel(16:9)
Horizontal Resolution 1080P30/25, 720P30/25
Signal standard NTSC/PAL
Zoom 3x optical zoom
Focal length F=3.0mm(wide)-10.0(tele)
Horizontal Angle Near-end 128°~Far-end 37°
Gain control Auto/manual
Focus Auto/manual
SNR ratio ≥50dB
Shutter speed 8 to 1/10000s (auto)
Preset position IR remote control supports 9 presets,
  PELCO Protocol supports 256 presets
Pan/Tilt movement range Pan: 340°(max speed 80°/S), Tilt: 120°(max speed 60°/S)
Control terminal RS-232, RS485
Control Protocol VISCA, PELCO-D, PELCO-P (RS-232, RS485)
Video output USB
Video Compression Format YUV, MJPEG, H.264
Noise Reduction 2D/3D
Control Computer, IR remote control



Features for VHD3U PTZ video camera:

* 3x optical zoom, USB2.0 interface

* Sleek and intelligent design

* Plug & Play USB Connectivity

* Crystal clear HD1080P image quality

* Accurate,smooth and silent PTZ Movement

* Preset: 9 via IR remote setting (256 via RS232)

* Superior quality with Full Glass Lens Material

* 128 °wide field of view with no video distortion

* 1/2.7 inch high quality, 2.1MEGA PIXEL (16:9) CMOS sensor

* Support ceiling mount, wall mount and tripod mount (Reverse mountable)

* 2D and 3D NR for best video quality in different lighting conditions

* Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control

* Compatible with most leading video conferencing software and platform



Advantages for VHD3U PTZ video camera

* Accurate, Smooth and silent PTZ movement

Along with 340 degree pan & 120 degree tilt rotation at adjustable speed and fast & accurate focus to capture any view in conferencing space

* As easy as Plug and play

Video output: USB2.0 Plug and Play, Anyone can easily setup this USB Camera and control conferencing/live streaming

*Superior quality full glass lense

Equipped with a 1/2.7 inch HD Color CMOS with 2.1 mega pixel(16:9) and Full HD 1080p output resolution & a hign dynamic image of 30 fps

* 3X optical zoom 128 degree FOV

Using multi-element 3X lossess optical zoom lens. with 128 degree wide angle FOV

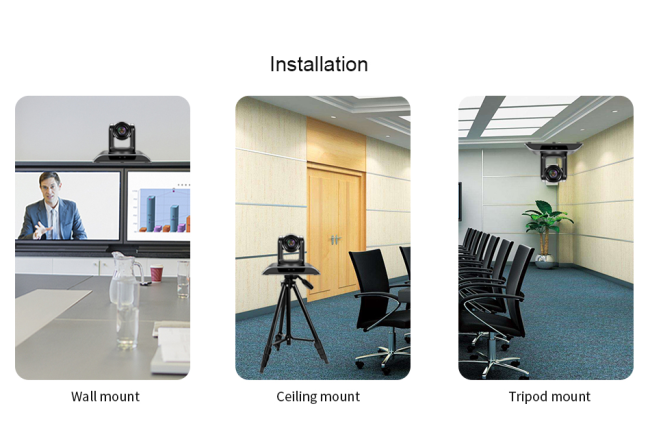

* Multiple installations

Support multiple mount way available to install on desk, monitor, wall, tripod or up-side down in ceiling

* Compatible with MAC and PC

Simply connect a PC or Macbook to conduct a meetings within the user's own familiar computing environment. Compatible with Mac and PC, system requirements: Windows7,8 or 10, Mac OS X10.7 or higher, Android, Linux



Usage for VHD3U PTZ video camera:

1. Video conferencing, easily plug and play

2. Tele-Education, suitable for online teaching

3. Tele-medicine, The Doctors can know how patients are being treated remotely

4.  Suit for Court trail system
