Fixed Focus 8.0MP HD IP Conference Camera USB camera
Fixed Focus 8.0 mega pixel USB 1080p conference video camera

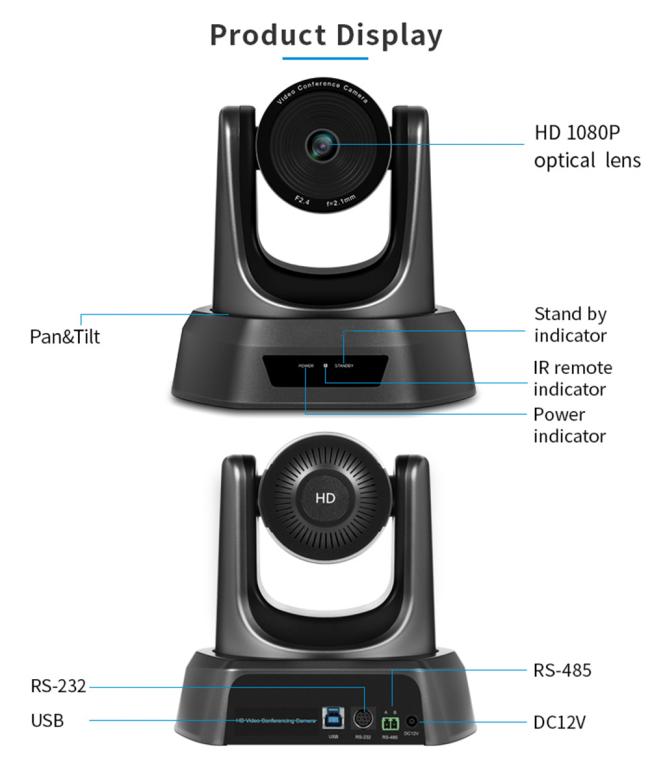

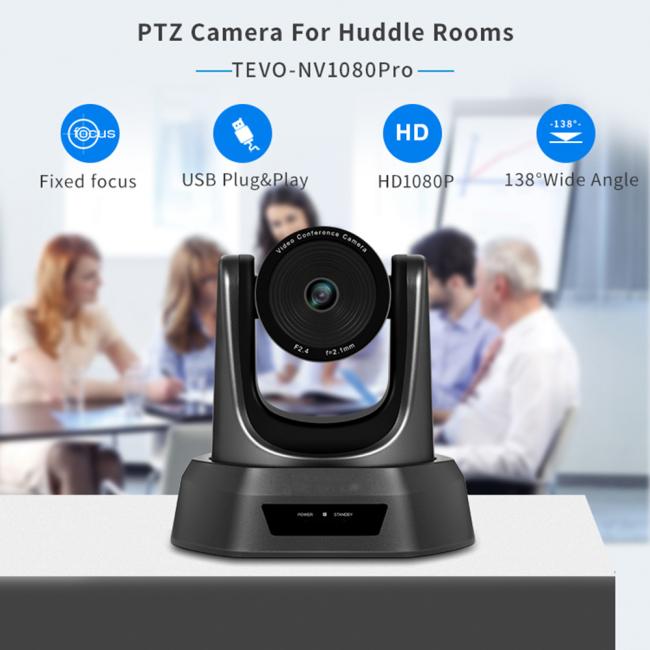

The TEVO-NV1080 Pro Pan/Tilt/Zoom (PTZ) camera has USB video output.
It is equipped with a 1 /2.7 inch HD Color CMOS with 8MP (16:9) CMOS sensor and Full HD 1080p output resolution & a high dunamic image of 30 fps.
138 degree wide field of view with no video distortion, excellent white balance, and exposure mode delivers a clear image even in low light or the extreme contrast of brightness and darkness in a conference room.
The camera covers a wide shooting angle and achieves high speed, quiet, and precise positioning with smooth PTZ operations. There are up to 255 preset setting movements and stable remote controlling for displaying effective and effecient presentations.
Suitable for video conferencing in a small conference room.
|
Items
|
Parameters
|
|
Product No.
|
TEVO-NV1080
|
|
Image Sensor
|
1/2.7 inch HD Color CMOS
|
|
Effective pixel
|
8.0 mega pixel(16:9)
|
|
Horizontal Resolution
|
1080P30/25, 720P30/25
|
|
Signal standard
|
NTSC/PAL
|
|
Zoom
|
Fixed focus
|
|
Minimum luminance
|
0.5Lux at F2.0
|
|
Focal length
|
F=2.1mm
|
|
Horizontal Angle
|
138°
|
|
Gain control
|
Auto
|
|
Focus
|
Auto
|
|
White balance
|
Auto
|
|
SNR ratio
|
≥50dB
|
|
Shutter speed
|
8 to 1/10000s (auto)
|
|
Preset position
|
IR remote control supports 9 presets,
PELCO Protocol supports 256 presets |
|
Pan/Tilt movement range
|
Pan: 350°(max speed 80°/S), Tilt:175° (max speed 60°/S)
|
|
Control terminal
|
USB, RS-232, RS485
|
|
Control Protocol
|
VISCA, PELCO-D, PELCO-P (RS-232, RS485)
|
|
Video output
|
USB
|
|
Video Compression Format
|
YUV, MJPG, H.264
|
|
Noise Reduction
|
2D/3D
|
|
Work temperature
|
-10°C-~50°C
|
|
Storage temperature
|
-20°C~60°C
|
|
Baud rate
|
38400/9600bps
|
|
Decoder
|
Built-in
|
|
Address set
|
1~256
|
|
Installation
|
Support desktop, Tripod, Wall mount and Ceiling mount
|
|
Power supply
|
DC12V/ 2A
|
|
Power consumption
|
12 W
|
|
Net weight/Gross weight
|
1.5kg/2.85g
|
|
Dimension(LXWXH)
|
260*175*180 mm /296*255*218mm (before / after packing)
|
|
Accessories
|
DC 12V Power adaptor, IR remote control, Manual, USB2.0 cable, Ceiling brackets & screws.
|
