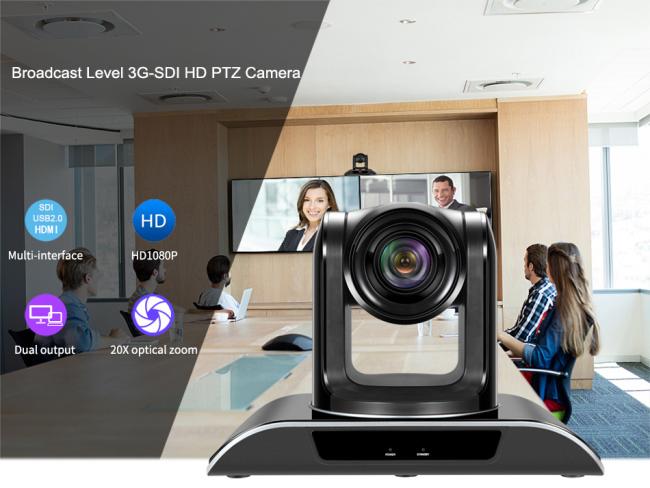

20X 1080P Broadcast PTZ Camera TEVO VHD20N IP camera For Media Centers
Factory Best Price 20X Optical Zoom 1080P PTZ Video HD USB Conference Camera
* 20X optical zoom
* Crystal clear HD1080P image quality
* Preset: 9 via IR remote setting (256 via RS232)
* Wide field of view with no video distortion
* 1/3 inch high quality, 2.38MP (16:9)CMOS sensor
* Superior quality with Full Glass Lens Material
* HD-SDI, HDMI , USB Video Output
* Support ceiling mount, wall mount and tripod mount (Reverse mountable)
* 2D and 3D NR for best video quality in different lighting conditions
* Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
* Compatible with most leading video conferencing software and platform
* Utilizing belt drive technology the PTZ is ultra-quiet and fast, while being very smooth
|
Model No. |
TEVO-VHD20N HDMI SDI USB PTZ camera |
|
Image Sensor |
1/3 inch HD CMOS |
|
Effective pixel |
2.38 mega pixel(16:9) |
|
Horizontal Resolution |
1080P60/50/30/25, 1080I60/50/30/25, 720P 60/50 |
|
Focal length |
F=4.7mm(wide)-94.0(tele) |
|
Signal standard |
NTSC/PAL |
|
Zoom |
20x zoom |
|
Horizontal view angle |
Near-end 55.5°~Far-end 3.0° |
|
Gain control |
Auto/manual |
|
Focus |
Auto/manual |
|
SNR ratio |
≥50dB |
|
Shutter speed |
1/1 sec to 1/10000s (22 steps) |
|
Preset position |
Remote-controller supports 9 presets, PELCO Control Protocol supports 256 presets |
|
Pan/Tilt movement range |
Pan: 340°(Max Speed 80°/S), Tilt: 120°(Max Speed 60°/S) |
|
Control terminal |
RS-232, RS485 |
|
Control Protocol |
VISCA, PELCO-D, PELCO-P (RS-232, RS485) |
|
Video output |
3G-SDI, DVI (convertible to HDMI) |
|
Noise Reduction |
2D/3D |
|
Baud rate |
2400/4800/9600/19200bps |
|
Decoder |
Built-in |
|
Address Set |
1~256 |
|
Installation |
Support desktop, Tripod, Wall mount and Ceiling mount |
