China 1x6 Port Tab Down 100 Base-T Network Modular Jack LEDs Magnetic Ethernet RJ45 Female Connectors for sale

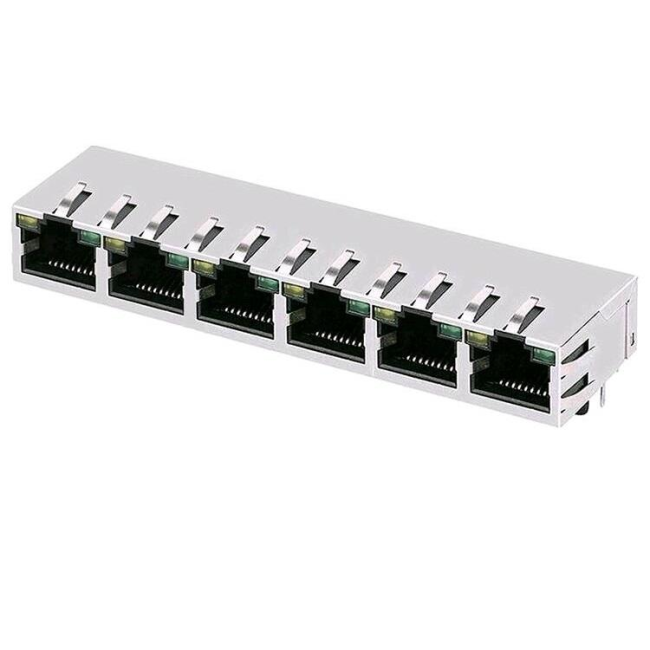

1x6 Port Tab Down 100 Base-T Network Modular Jack LEDs Magnetic Ethernet RJ45 Female Connectors

Name: 1x6 Port Tab Down 100 Base-T Network Modular Jack LEDs Magnetic Ethernet RJ45 Female Connectors
Brand: Shenzhen Xietaikang Precision Electronic Co., Ltd.

Price Negotiable

Price: Negotiable price

MOQ: 1pcs

Delivery Time: 5-7 days

Brand: XTK

Product Description

1x6 Port Tab Down 100 Base-T Network Modular Jack LEDs Magnetic Ethernet RJ45 Female Connectors

Description

Categories	Connectors, Interconnects Modular Connectors-Jacks With Magnetics
Application-LAN	ETH(NoN POE)
Connector Type	RJ45
Number of Positions/Contacts	8p8c
Number of Ports	1x6
Applications Speed	100 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.537" (13.65mm)
LEDs	NO
Shield EMI Tabs	Shielded, With EMI Tabs
Features	Board Guide
Tab Direction	Down
Contact Material	Phosphor Bronze
Packaging	Tray
Operating Temperature	-40°C ~ 85°C
Contact Material Plating Thickness	Gold 6.00µin/15.00µin/30.00µin/50.00µin
Shield Material	Brass
Housing Material	Thermoplastic
RoHS Compliant	YES-RoHS-5 With Lead in Solder Exemption

Core Competitive Advantages

All‑in‑one magnetic integration.
Tab‑Down 1×6 gang‑port footprint.
Dual‑color integrated LEDs.
Superior EMI & isolation performance.
Mass‑production friendly.
Fully verified compliance.
Second‑source available.

Typical Applications

SOHO network hardware: 6‑port fast‑ethernet switch, hub, ADSL / xDSL modem
LOM (LAN‑on‑Motherboard) embedded mainboard
Industrial embedded gateway, edge control unit (commercial temperature range)
IP communication terminal, multi‑port access control equipment
OEM / ODM fast‑ethernet module requiring 6‑port compact horizontal port layout

FAQ

Q: How soon can we receive the quotation?

A: If the specification is confirmed, our quotation can be provided within 24 hours.

Q: Can you provide samples for evaluation?

A: Yes, samples can be sent to you for evaluation.

Q: How long does it take for an order to be processed and shipped?

A: When items are in stock, we usually ship them out in the next 3 to 7 business days after receiving an order.

Q: What is your trade term?

A: FOB, FCA, CFR, CIF, EXW, DDU are available. We can also help you choose the most favorable and efficient shipping method.

Q: What is the payment term?

A:  ONLINE (TRADE INSURANCE), VISA, T/T, Western Union, MoneyGram, etc.

Q: How long is the Warranty period?

A: The product comes with a 1-year limited warranty.

Q: Can you provide OEM & ODM service?

A: Yes, our professional R&D team will help make your ideas come true.
