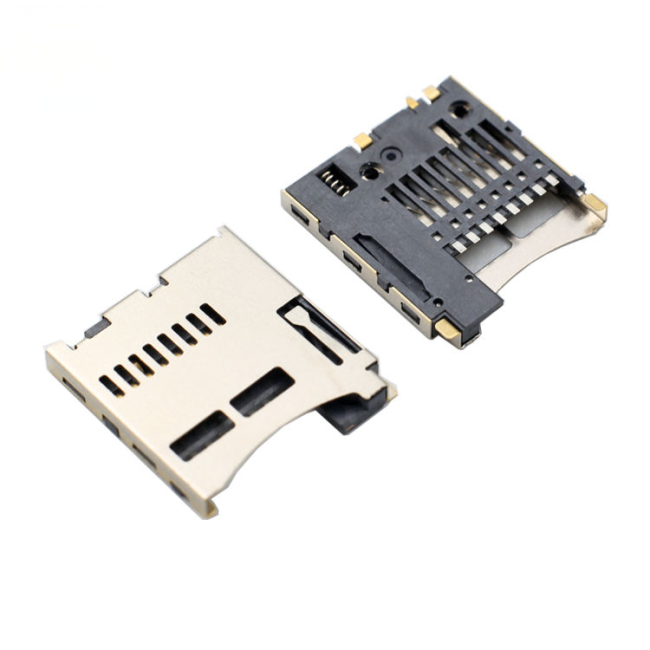

8 Pin TF Micro SD Card Connector Stainless Steel Housing Compatible with Molex 473521001 Push-Push Type with VSS Detect Switch
8 Pin TF Micro SD Card Connector Stainless Steel Housing Compatible with Molex 473521001 Push-Push Type with VSS Detect Switch
Highlight
- Pin‑to‑pin footprint compatible with Molex 47352‑1001, direct drop‑in replacement, no PCB redesign required
- Push‑push latching mechanism, one‑press lock / one‑press eject; built‑in VSS detect switch for hardware card‑in‑place signal feedback
- Full stainless‑steel shell for anti‑vibration, shielding & structural reinforcement
- SMT surface‑mount, tape‑and‑reel packaging for high‑volume automated assembly
- RoHS & Low‑Halogen compliant, qualified for consumer & industrial embedded storage projects
Technical Specifications
General Mechanical Parameters
| Item | Specification |
|---|---|
| Contact Count | 8 Pins (Signal + Detect Switch) |
| Mating Interface | Micro SD / TF Card |
| Operation Type | Push‑Push (Click‑Lock / Click‑Eject) |
| Mounting Style | SMT Right Angle |
| Pitch | 1.10 mm |
| Overall Dimension | 14.0 mm ×15.2 mm ×1.88 mm |
| Mating Cycle Life | Min 5,000 insert‑eject cycles |
| Housing Shell | Stainless Steel |
| Insulator Material | LCP, UL94V‑0 |
| Packaging | Embossed Tape & Reel |
Material & Electrical Characteristics
| Item | Specification |
|---|---|
| Contact Material | Phosphor Bronze / Copper Alloy |
| Contact Plating | Gold plating over nickel on mating area; tin on solder terminal |
| Rated Current per Contact | 0.5 A Max |
| Rated Voltage | 100 V DC |
| Initial Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥1000 MΩ |
| Dielectric Withstand Voltage | AC 500 V rms, 1 min |
| Detect Switch | VSS hardware detect switch |
Environmental & Soldering Guidelines
| Item | Specification |
|---|---|
| Operating Temperature | ‑20 ℃ ~ +85 ℃ |
| Storage Temperature | ‑40 ℃ ~ +85 ℃ |
| SMT Reflow Peak Temp | 240‑260 ℃, max 3 reflow cycles |
| Compliance | RoHS, Low‑Halogen, REACH‑SVHC free |
| Moisture Sensitivity Level | MSL‑1 |
Product Features
- Direct footprint compatibility with Molex 47352‑1001, zero PCB modification for second‑source substitution
- Push‑push click‑in / click‑out operation; stable mechanical latch prevents card pop‑out under vibration
- Independent VSS detect switch: hardware level card presence detection, avoids software polling failure risk
- Stainless‑steel shell: enhanced mechanical strength, EMI shielding, anti‑deformation during assembly & end‑use
- High‑temperature LCP insulator (UL94V‑0), supports standard lead‑free SMT reflow soldering process
- Phosphor‑bronze contacts with selective gold plating, low contact resistance, stable high‑speed SD signal transmission
- Right‑angle SMT termination, embossed tape & reel packaging for auto‑pick‑and‑place mass production
- RoHS, Low‑Halogen, REACH‑SVHC compliant for global market access
Product Advantages
✅ Second‑source drop‑in replacement: pin‑to‑pin compatible with Molex 47352‑1001, relieve component shortage risk, shorten BOM qualification cycle
✅ Hardware VSS detect switch: reliable physical card‑insert signal, better stability than pure software detection for industrial & IoT devices
✅ Stainless‑steel full shell: resist physical deformation during assembly; improve anti‑vibration performance for moving‑part equipment
✅ Strict coplanarity control: stable SMT soldering yield, reduce open‑soldering risk on thin PCB ✅ Cost‑optimized factory direct supply: competitive pricing vs imported original parts, maintain equivalent mechanical & electrical performance
✅ Production traceability: raw‑material trace & 100% final‑function test before shipment
