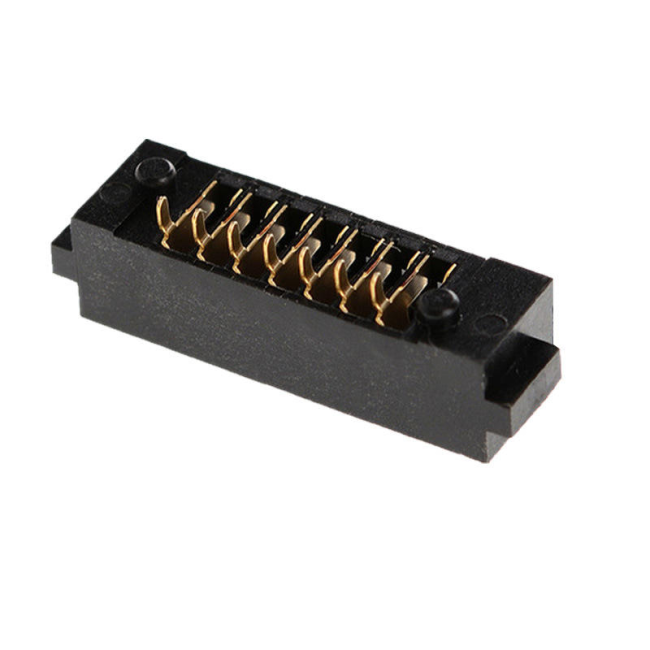

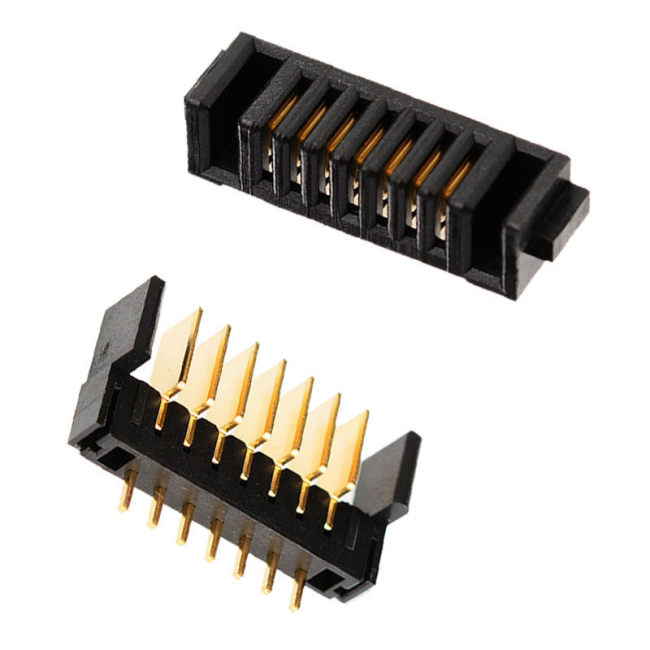

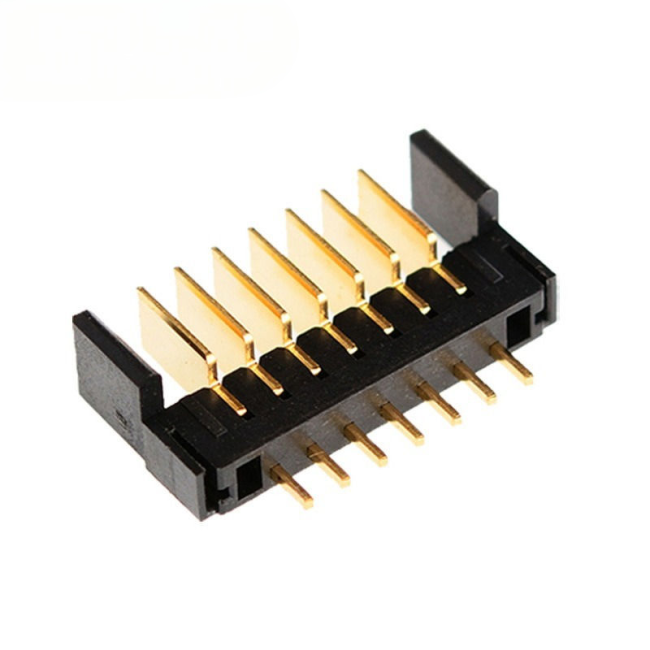

7-PIN Fingerprint Lock Battery Holder Connector 2.0mm Spacing Insert Blade PBT Material Phosphor Bronze Contacts
7-PIN Fingerprint Lock Battery Holder Connector 2.0mm Spacing Insert Blade PBT Material Phosphor Bronze Contacts
Highlight
- 2.0mm pitch 7‑pin insert‑blade battery holder, tailor‑made for fingerprint lock lithium‑battery modules
- Phosphor‑bronze contact beams, stable spring pressure, low contact resistance against vibration & drop‑off disconnection
- UL94‑V0 PBT housing, withstands wave‑soldering thermal shock, anti‑deformation under indoor temperature cycles
- Anti‑mis‑insertion shroud structure, prevents reverse battery assembly damage for smart‑lock mass production lines
- RoHS‑compliant, consistent performance for high‑volume smart‑lock OEM & ODM projects
Product Description
General Mechanical Parameters
| Item | Spec |
|---|---|
| Number of Positions | 7‑PIN |
| Pitch | 2.0 mm |
| Mating Type | Insert‑blade battery mating |
| Mounting Style | Through‑hole PCB mount |
| Mating Cycles | 5 000 cycles |
| Insertion Force | 15‑35 N |
| Extraction Force | ≥8 N |
| Housing Material | PBT, UL94‑V0 |
| Contact Material | Phosphor Bronze C5191 |
| Contact Plating | Gold over nickel (custom plating thickness available) |
Material & Electrical Characteristics
| Item | Spec |
|---|---|
| Rated Current | 3 A per pin (continuous); 5 A peak |
| Rated Voltage | 30 V DC |
| Max. Contact Resistance | ≤30 mΩ |
| Min. Insulation Resistance | ≥100 MΩ |
| Withstanding Voltage | AC 500 V, 60 s |
| Operating Temperature | ‑30 ℃ ~ +85 ℃ |
Environment & Soldering Guide
| Item | Spec |
|---|---|
| Soldering Process | Wave soldering (through‑hole) |
| Soldering Temp & Time | 260 ℃ max, ≤5 s |
| Storage Condition | ‑20 ℃ ~ +40 ℃, 40‑70 % RH, no corrosive gas |
| Salt Spray | 48 hours (gold‑plated version) |
| Compliance | RoHS, REACH |
Product Feature
- 7‑position, 2.0 mm pitch insert‑blade structure, direct‑insert battery‑blade mating, no extra wire harness needed
- Phosphor‑bronze C5191 contacts, good spring retention, resists relaxation after thousands of insert‑extract cycles
- Black PBT housing (UL94‑V0), suitable for wave‑soldering process, dimensional stability under temperature fluctuation
- Built‑in anti‑mis‑insert shroud, mechanical fool‑proof to avoid reverse battery insertion
- Through‑hole PCB pins, solid soldering anchoring, anti‑loosening under vibration of door‑lock mechanical movement
- Optimized contact‑beam geometry, lower heating under continuous power‑supply of smart‑lock standby & motor‑discharge peak current
- RoHS & REACH compliant, supports large‑batch tray/bag packaging for SMT / through‑hole assembly lines
Product Advantage
- Smart‑lock‑oriented tuning: Blade‑contact geometry optimized for fingerprint‑lock battery‑swap scenarios; contact‑force tuned to prevent intermittent power cut caused by door‑closing vibration.
- Phosphor‑bronze spring superiority: Better stress‑relaxation resistance than brass; keeps stable contact performance after long‑term repeated battery replacement.
- PBT thermal stability: Resists housing warpage during wave‑soldering; avoids pin offset, which leads to poor soldering in mass production.
- Fool‑proof mechanical design: Shroud anti‑mis‑insert feature cuts assembly‑line defect rate, protects expensive main‑board IC from reverse‑voltage damage.
- Flexible customization: Support pin‑count adjustment, plating‑thickness modification, special packaging; fast sample turnaround for smart‑lock project validation.
- Cost‑performance balance: Factory direct supply; stable quality for mid‑to‑high‑end fingerprint‑lock OEM, no over‑spec redundancy to raise BOM cost.
Application
- Fingerprint smart locks, password access‑control locks (core application)
- Smart door‑lock lithium‑battery packs
- Portable IoT battery‑powered modules
- Home‑security smart devices
- Low‑power smart‑sensor equipment
- Small‑size consumer electronics requiring blade‑type battery connection
Customization Options
- Confirm pitch: Must adopt 2.0 mm mating blade dimension; do not mix‑use with 2.54 mm pitch battery connectors.
- Verify pin‑count definition: Confirm 7‑pin signal/power assignment between battery blade and PCB schematic; pin‑out can be customized.
- Mounting check: This model is through‑hole type; design PCB footprint strictly follows our provided drawing.
- Plating selection: Standard gold‑plated for smart‑lock indoor environment; enhance gold thickness if used in high‑humidity coastal regions.
- Current margin: When motor instant peak current occurs, reserve ≥40 % current margin per pin in your design.
- Assembly note: Rely on built‑in mechanical fool‑proof; do not force‑insert battery blade in reversed orientation.
- Sample first: Run real‑machine aging & vibration test with samples before mass‑order release.
Step Custom Process
-
Requirement Collection → 2. Technical Evaluation & Quotation → 3. 3D Drawing Review & Confirmation → 4. Mold / Tooling & Prototype → 5. Sample Test (contact R, retention, reflow) & Approval → 6. Mass Production → 7. Final QC & Shipment.
Our service
Sample Availability & Policy
Samples are to be sent to our customers for free on their request, so long as they are willing to pay for the freight, or we can pay the freight for some old customers from our side as well, or the customer can pay the freight in advance, and we can ship samples with our courier as well.
Guarantees/Warranties/Terms and Conditions
We provide a product quality guarantee.
A 15-day quick delivery is assured.
Payment terms include T/T, but it is subject to negotiation, such as L/C, PayPal, Western Union, and more.
After Sales Service
We offer excellent service through our network of offices and head office.
Please get in touch with our marketing sales department either by phone or e-mail, or if convenient, visit our office.
Aside from the friendly service, we offer the most competitive prices and flexible scheduling.
FAQ
Q: What's your MOQ?
A: Our MOQ usually comes to 1000 pcs, but we accept small order quantities for testing.
Q: Can I visit your factory?
A: Welcome to visit our factory, and we will show you our professional production process, and hoping we can have long-term cooperation with you.
Q: What's your sample time? What's your delivery time?
A: 7 days for samples, and 15-20 days for mass production. It depends on the quantity.
Q: How do I inspect my goods?
A: You can inspect by visiting the factory, or ask a third party to inspect, or by picture inspection.
Q: How much does it cost to ship to my country?
A: The freight will be given by the freight company based on your Gross Weight and CBM.
Q: How do I know if you ship out my order?
A: The tracking number(DHL, UPS, FedEx, TNT, EMS, etc.), Air Waybill, or B/L by Sea will be sent to you as soon as your goods are shipped out. We also follow up on the delivery and keep you informed. The helpful after-service is provided. We support what you sell.
Q: Can I make personalized/customized products?
A: Sure, just send us your drawing or sample.
