72core OM3 OM4 PC- PC MTP MPO Fiber Cable For Date Center Aqua Dobule Jacket
MTP PC- MTP PC Truck Patch Cable For Date Center 72core OM3 OM4 Aqua Dobule Jacket
Performance:
| END A | END B | ||||
| Connector Type | MTP/MPO | MTP/MPO | LC | LC Uniboot | SC |
| Polarity | Polarity A, Polarity B, Polarity C | ||||
| IL(MTP/MPO) | Standard ≤0.5 dB Ave ≤0.3dB | ||||
| IL(MTP/MPO) | Elite: ≤0.35dB Ave: ≤0.2dB | ||||
| IL(LC/SC) | Standard ≤0.25dB Low Loss : ≤0.15dB | ||||
| RL | SM:≥60dB MM: ≥20dB | ||||
| Tester Brand | EXFO & JGR | ||||
| Repeatability | ≤0.2dB | ||||
| Interchangeability | ≤0.2dB | ||||
| Mating | 1000 Times | ||||
| Opterating Temperature | -20℃ ~ +70℃ | ||||
| 3D Interferometer |
Fiber Height: 1000nm~3500nm min Radius Short: 50mm min Ferrule Height: 7.95mm min |
||||

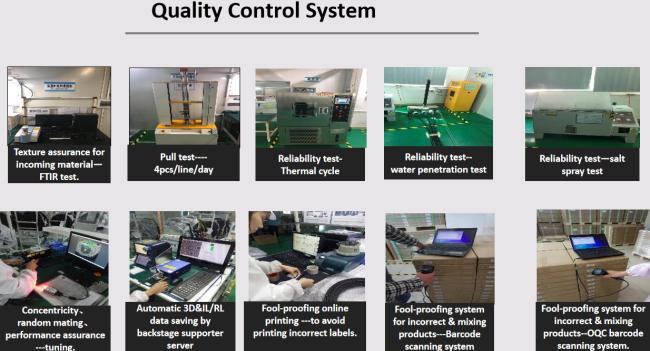

Test:
Features:
- Ulitize MPO/MTP connectors
- Inner: Ceramic Ferrule
- Available in Elite insertion loss and standarad insertion loss.
- Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.
- They use a simple push-pull latching mechanism for easy and intuitive insertion and removal.
- It provides up to 8, 12, 16, 24 times the density, thereby offering savings in circuit card and rack space.
- Available in OS1/2, OM1, OM2, OM3 and OM4, OM5
- Telcordia’s GR-326-Core, IEC Standard
- Green Production, RoHS Standard
- Interface polished type has PC, UPC and APC
- Support use in attaching directly to 40/100G transceivers
- 100% factory tested, with test results included for each assembly
OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.
Application:
- Metro
- CATV
- Passive fiber optic networks
- Builing communication center
- Bank Data center
- Communication center rooms
- FTTH (Fiber to The Home)
- FTTA (Fiber to the attena)
- LAN (Local Area Network)
- FOS (fiber optic sensor)
- Fiber Optic Communication System
- Optical fiber connected and transmitted equipment
- Defense combat readiness

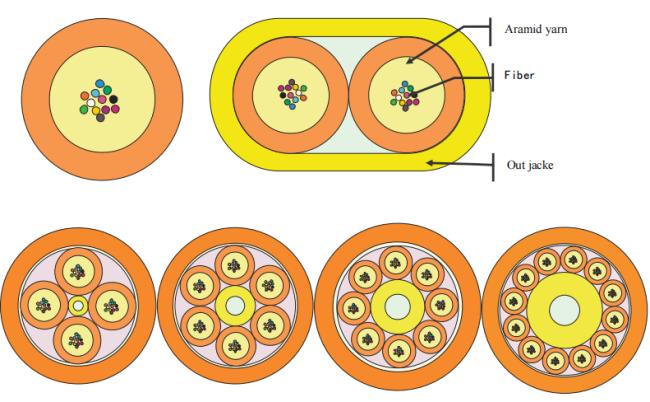

Cable Spec:
