Pre Embedded FTTH Sc Fiber Connector For Fast Field Assembly
Pre-embedded FTTH Fiber Optic Drop Cable SC Fast Field Assembly Connector
Description of pre-embedded SC Fiber Optic Quick Connector
SC connector can provide quick and easy termination of fibers in the field. It allows the installer to terminate and make connection in minutes in the equipment and fiber patch panels.
Assembly of the SC type quick connector requires only normal fiber preparation tools: a fiber stripping tool,
wipes and a fiber cleaver. No electrical power supply is needed.
Advantanges of pre-embedded SC Fiber Optic Quick Connector
- Low insertion loss, high return loss.
- Embedded structure.
- New unique design, installation without the need to inject glue,no grinding.
- Easy operation and quick construction.
- Provide easy and quick termination of fibers in the field.
- High installation quality, high success rate and high reliability.
- No limitation of operation environment.
- Tools are simple and portable.
Facoty images of pre-embedded SC Fiber Optic Quick Connector
Parameters of pre-embedded SC Fiber Optic Quick Connector
| Parameters | |
| Mechanical Data | Value |
| Connector Type | SC/APC or SC/UPC |
| Cable Type | 2x3mm Drop Cable |
| Connector Color | Green,Blue |
| Optical Data | Value |
| Fiber Mode | SM |
| Work Wavelength | 1260-1650nm |
| Insertion Loss | ≤0.3dB |
| Return Loss | UPC≥ 50dB APC≥ 60dB |
| Reusable Times | >10 times |
| Tensile Strength | >50N |

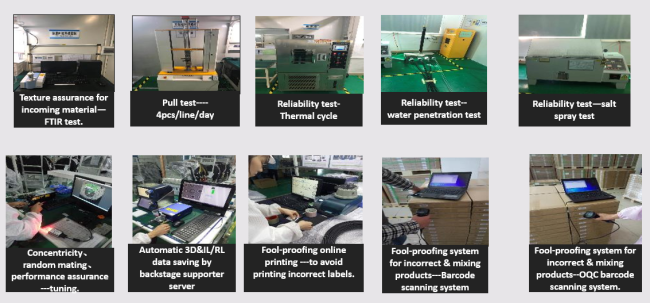

Quality control system of Fiber Optic Quick Connector

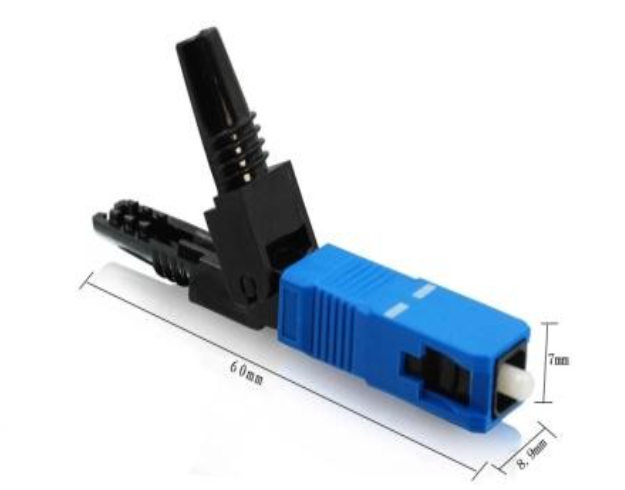

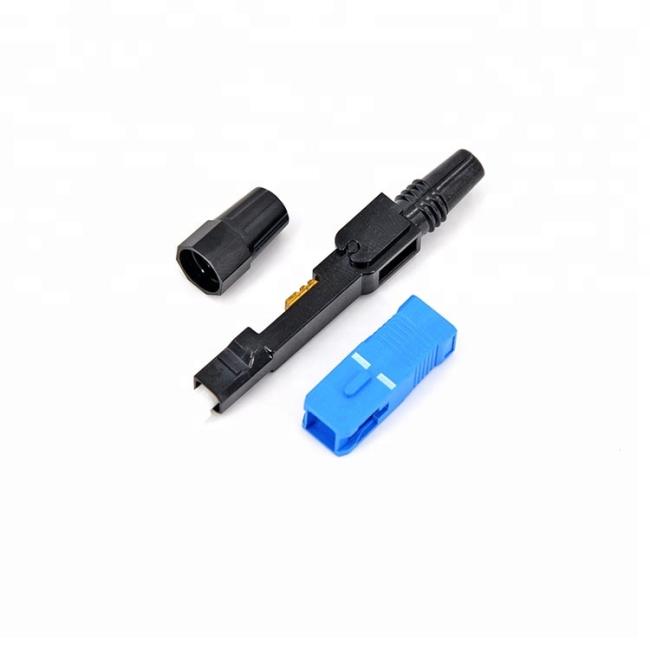

Images of Fiber Optic Quick Connector
