5m OM4 Multimode Fiber Jumpers FC UPC To FC UPC 3.0mm Cable Diameter
Fiber Optic Patch Cord/ FC/UPC-FC/UPC/ Multimode/ OM4 /Simplex /3.0mm/ LSZH/ PVC/Violet
Introduction
Our patch cord provides high reliability and flexibility for our customers in different industries. And it has excellent mechanical and environmental performances. All patchcords can be customized in length, fiber mode and connector types to suit every single customer requirement with our state-of-art production facilities.

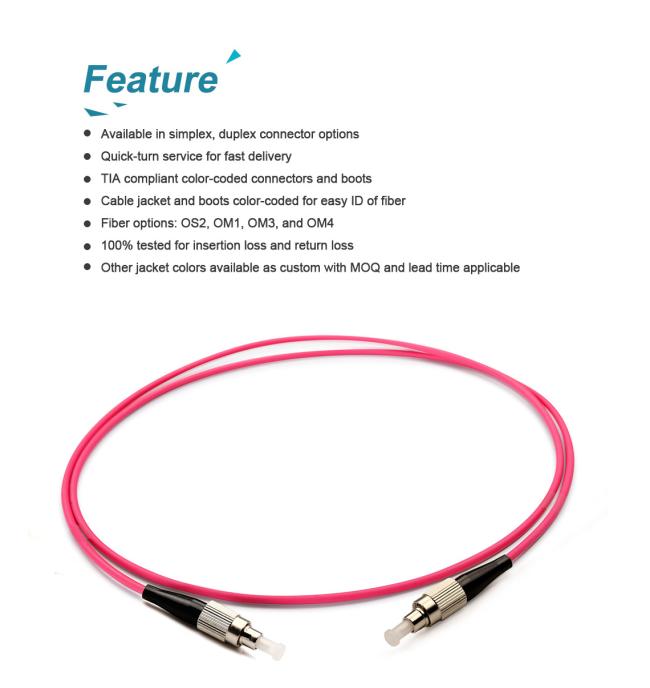

Features
1) Avalible in simplex, duplex connector options
2) Fast delivery
3) TIA compliant color-coded connectors and boots
4) Cable jaket and boots color-coded for easy ID of fiber
5) Fiber options: OS2, OM1,OM3, and OM4
6) 100% tested for insertion loss and return loss
7) Other jacket colors available as custom with MOQ and lead time applicable
Specification
| Connector Type | FC/UPC to FC/UPC | Fiber Count | Simplex |
| Fiber Mode | OM4 50/125um |
OFL Bandwidth (850/1300nm) |
3500/500 MHz*km |
| Insertion Loss | ≤0.3dB | Return Loss | ≥35dB |
|
Attenuation at 850/1300nm (Typical) |
3.5/1.5 dB/km | Ferrule Material | Ceramic |
| Cable Diameter | 3.0mm | Strength Member | Aramid yarn |
| Optical Source | VCSEL |
Minimum Bend Radius (Short term/Long term) |
20D/10D |
| Cable Jacket | LSZH / PVC | Cable Color | Voilet |
| Operating Temperature | -20~70°C | Storage Temperature | -40~85°C |
Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH
Our advantages
1) Professional cable manufacturer
2) About 20 years experiences in cable industry
3) Can be customized production of fiber optic cable
4) ISO, UL , ROSH,REACH...certifications
