XDK OM3 Duplex Fiber Patch Cord Lc Lc Multimode LSZH/PVC Jacket
Fiber Optic Patch Cord/LC/UPC-LC/UPC Muiltmode OM3/ Simplex/3.0mm/ LSZH/PVC/ Aqua
Introduction
Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.
Our patch cord provides high reliability and flexibility for our customers in different industries. Our top-of-the-line fiber optic cable assemblies and stringent manufacturing process ensures the excellent optical performance for our patch cords with traceable data.

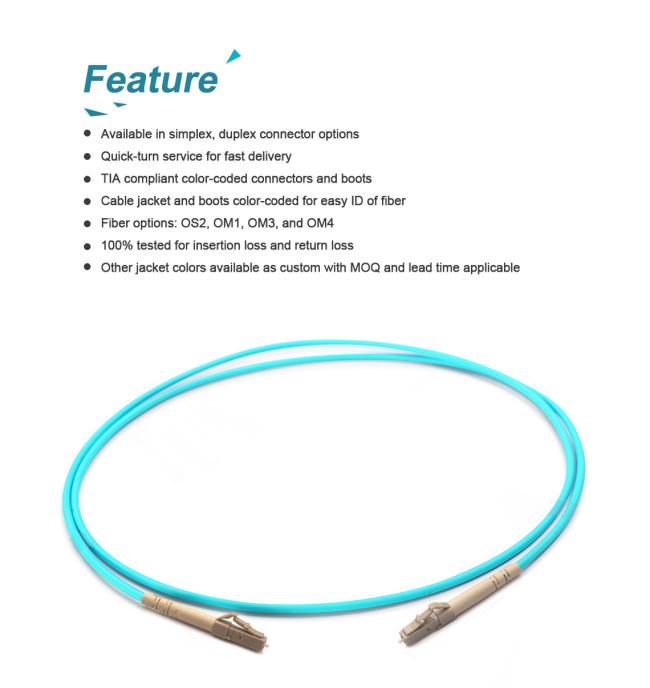

Features
1) Avalible in simplex, duplex connector options
2) Quick-tum service for fast delivery
3) TIA compliant color-coded connectors and boots
4) Cable jaket and boots color-coded for easy ID of fiber
5) Fiber options: OS2, OM1,OM3, and OM4
6) 100% tested for insertion loss and return loss
Specification

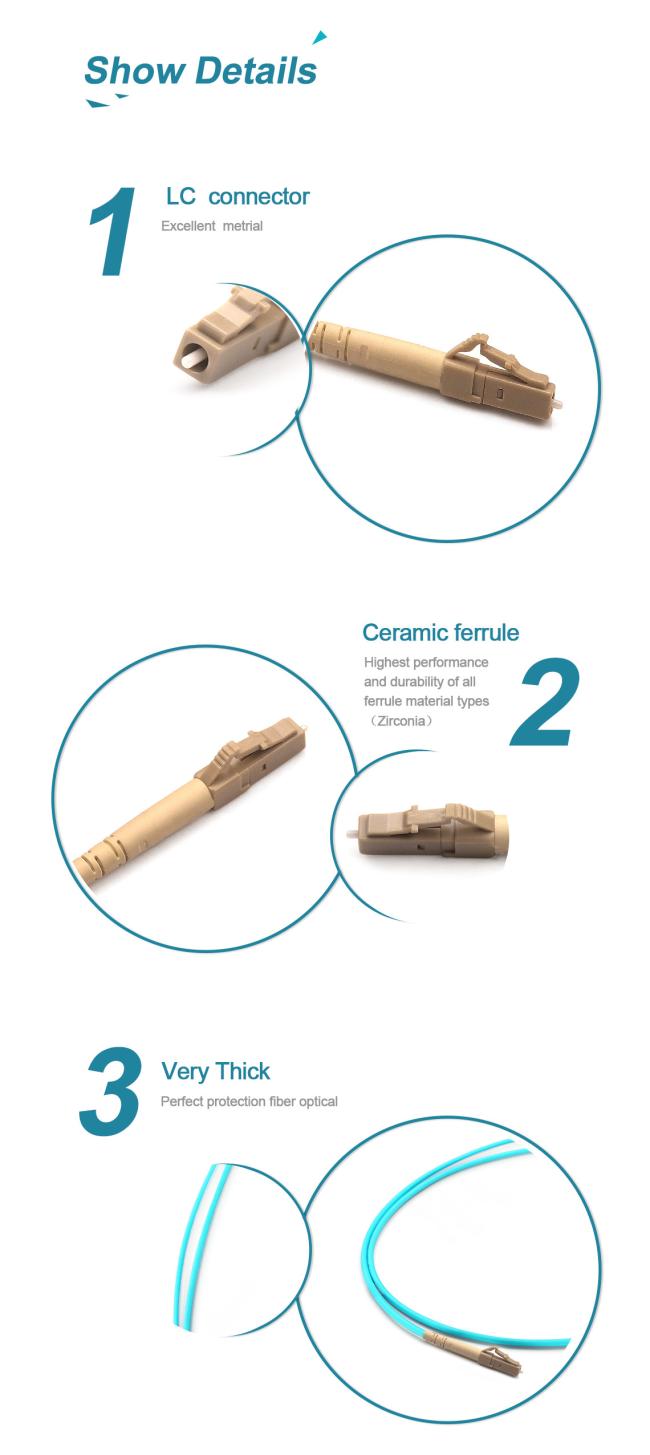

| Connector Type | LC/UPC to LC/UPC | Fiber Count | Simplex |
| Fiber Mode | OM3 50/125um |
OFL Bandwidth (850/1300nm) |
1500/500 MHz*km |
| Insertion Loss | ≤0.3dB | Return Loss | ≥35dB |
|
Attenuation at 850/1300nm (Typical) |
3.5/1.5 dB/km | Ferrule Material | Ceramic |
| Cable Diameter | 3.0mm | Strength Member | Aramid yarn |
| Optical Source | VCSEL |

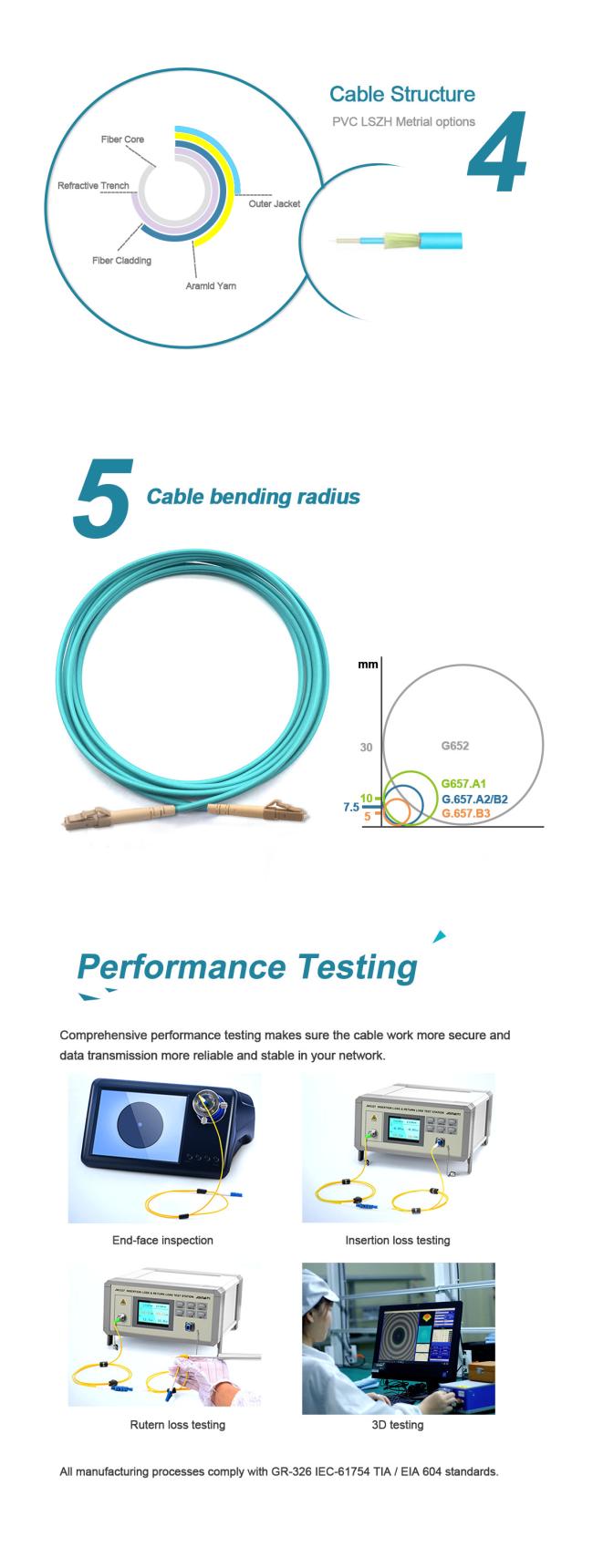

Minimum Bend Radius (Short term/Long term) |
20D/10D |
| Cable Jacket | LSZH or PVC | Cable Color | Aqua |
| Operating Temperature | -20~70°C | Storage Temperature | -40~85°C |
Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH
