Violet LSZH PVC OM4 Simplex 3.0mm Fiber Optic Patch Cable LC UPC To LC UPC
Fiber Optic Patch Cord/LC/UPC-LC/UPC Muiltmode OM4/ Simplex/3.0mm/ LSZH/PVC/ Violet
Introduction
Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.

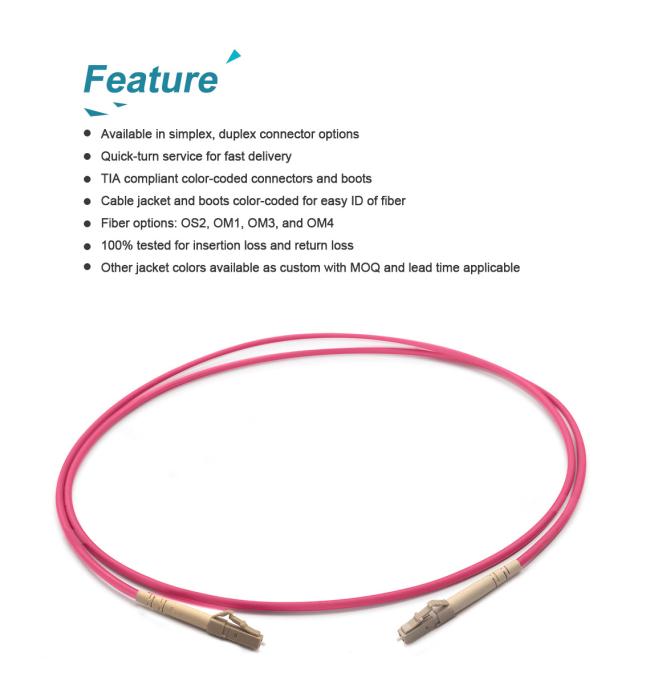

Features
1) Avalible in simplex, duplex connector options
2) Quick-tum service for fast delivery
3) TIA compliant color-coded connectors and boots
4) Cable jaket and boots color-coded for easy ID of fiber
5) Fiber options: OS2, OM1,OM3, and OM4
6) Insertion loss and return loss are fully tested
Specification
| Connector Type | LC/UPC-LC/UPC | Fiber Count | Simplex |
| Fiber Mode | OM4 50/125um |
OFL Bandwidth (850/1300nm) |
3500/500 MHz*km |
| Insertion Loss | ≤0.3dB | Return Loss | ≥35dB |
|
Attenuation at 850/1300nm (Typical) |
3.5/1.5 dB/km | Ferrule Material | Ceramic |
| Cable Diameter | 3.0mm | Strength Member | Aramid yarn |
| Optical Source | VCSEL |
Minimum Bend Radius (Short term/Long term) |
20D/10D |
| Operating Temperature | -20~70°C | Storage Temperature | -40~85°C |
Our advantages
1) Professional cable manufacturer
2) About 20 years experiences in cable industry
3) ISO, UL , ROSH,REACH...certifications
4) Can be customized production of fiber optic cable
