OM1 Simplex 3.0mm Sc To Sc Multimode Fiber Patch Cable , Orange Uniboot Patch Cord
Fiber Optic Patch Cord/SC/UPC-SC/UPC Muiltmode OM1/ Simplex/3.0mm/ LSZH/PVC/ Orange
Introduction
Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards. FC, SC, ST, LC Patch Cords are available in both multimode and single mode cable-types, in duplex and simplex versions.
Our patch cord provides high reliability and flexibility for our customers in different industries. Our top-of-the-line fiber optic cable assemblies and stringent manufacturing process ensures the excellent optical performance for our patch cords with traceable data. All patchcords can be customized in length, fiber mode and connector types to suit every single customer requirement with our state-of-art production facilities.

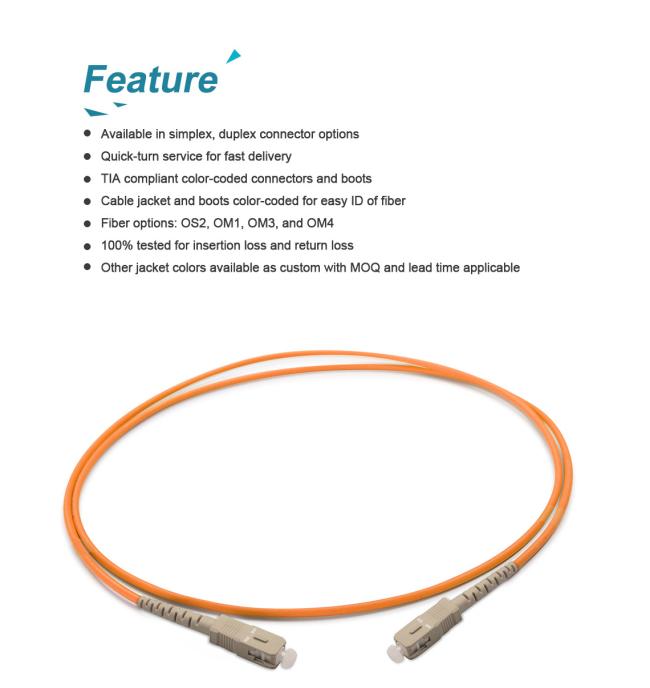

Features
1) Avalible in simplex, duplex connector options
2) Fast delivery
3) TIA compliant color-coded connectors and boots
4) Cable jaket and boots color-coded for easy ID of fiber
5) Fiber options: OS2, OM1,OM3, and OM4
6) 100% tested for insertion loss and return loss
Specification
| Connector Type | SC/UPC to SC/UPC | Fiber Count | Simplex |
| Fiber Mode | OM1 62.5/125um |
OFL Bandwidth (850/1300nm) |
200/500 MHz*km |
| Insertion Loss | ≤0.3dB | Return Loss | ≥35dB |
|
Attenuation at 850/1300nm (Typical) |

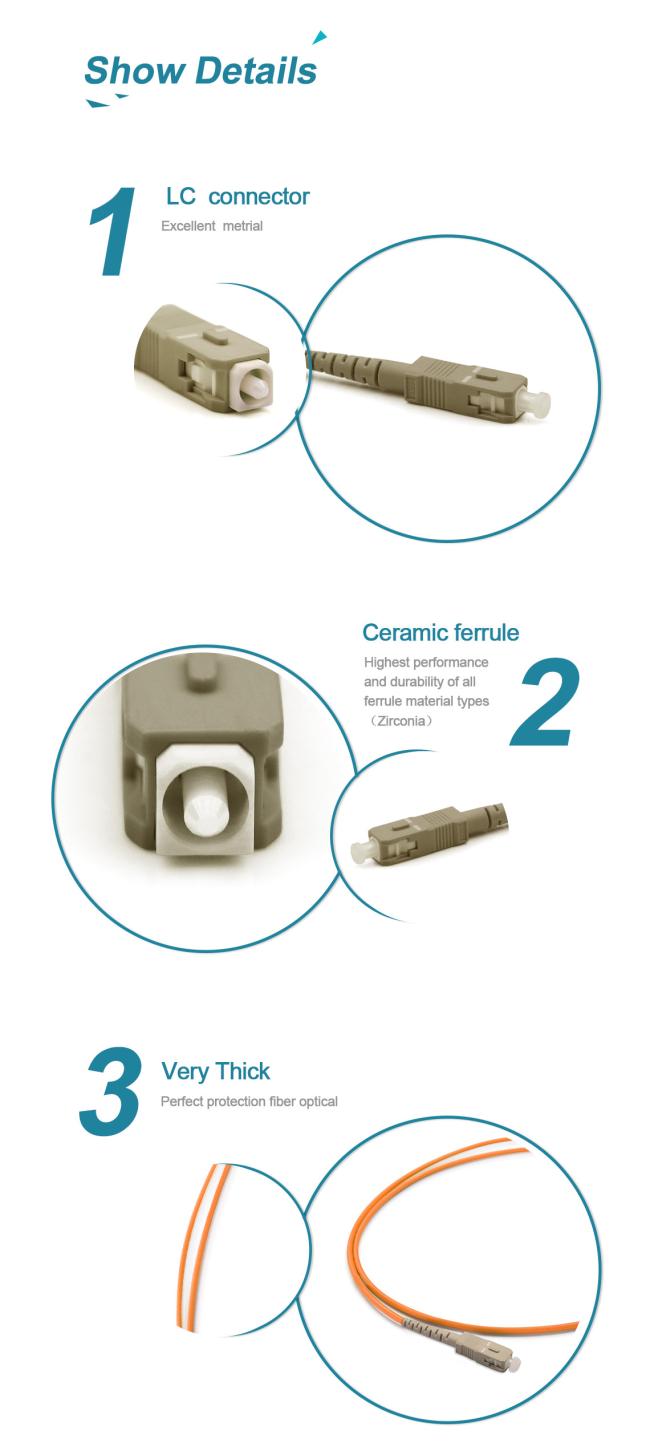

3.5/1.5 dB/km | Ferrule Materials | Ceramic |

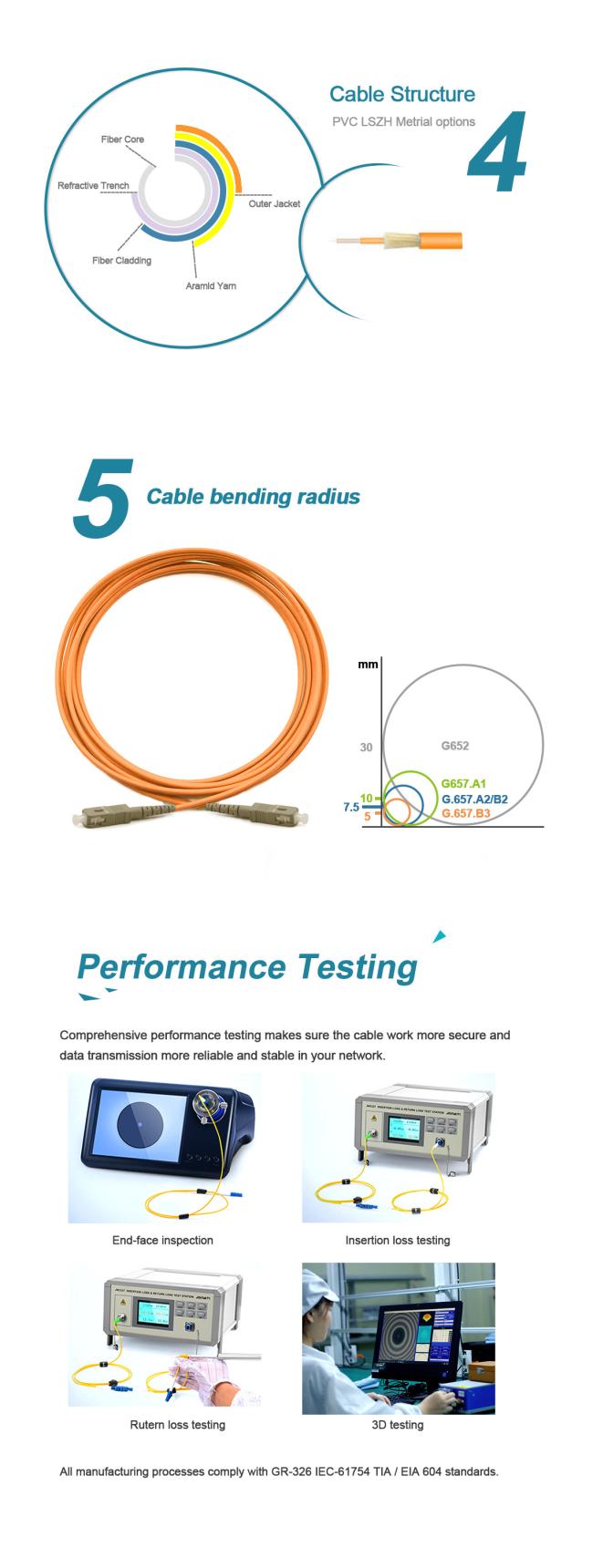

| Cable Diameter | 3.0mm | Strength Member | Aramid yarn |
| Optical Source | LED Light |
Minimum Bend Radius (Short term/Long term) |
20D/10D |
| Operating Temperature | -20~70°C | Storage Temperature | -40~85°C |
