OM3 Simplex Custom Fiber Patch Cable , 3.0mm LSZH Multimode Fiber Jumpers
Fiber Optic Patch Cord/SC/UPC-SC/UPC Muiltmode OM3/ Simplex/3.0mm/ LSZH/PVC/ Aqua
Introduction
Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards. FC, SC, ST, LC Patch Cords are available in both multimode and single mode cable-types, in duplex and simplex versions.

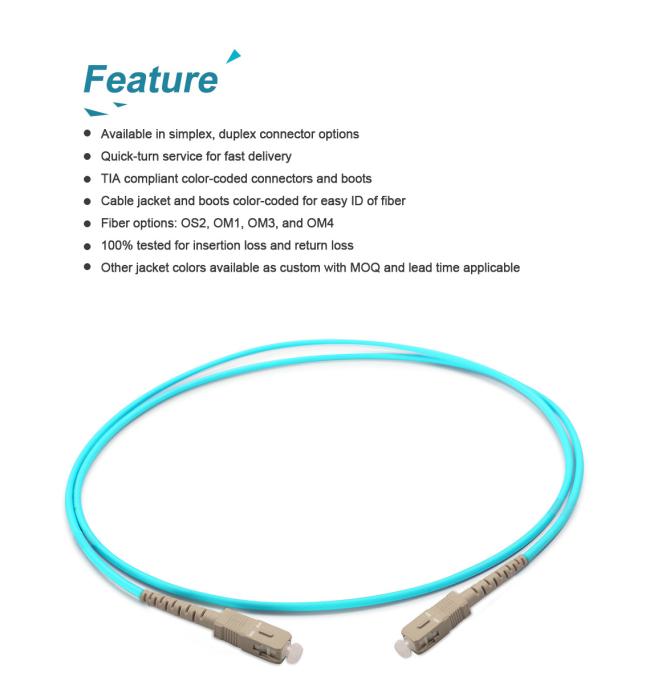

Features
1) Avalible in simplex, duplex connector options
2) Quick-tum service for fast delivery
3) TIA compliant color-coded connectors and boots
4) Cable jaket and boots color-coded for easy ID of fiber
5) Fiber options: OS2, OM1,OM3, and OM4
6) 100% tested for insertion loss and return loss
Specification
| Connector Type | SC/UPC to SC/UPC | Fiber Count | Simplex |
| Fiber Mode | OM3 |
OFL Bandwidth (850/1300nm) |
1500/500 MHz*km |
| Insertion Loss | ≤0.3dB | Return Loss | ≥35dB |
|
Attenuation at 850/1300nm (Typical) |

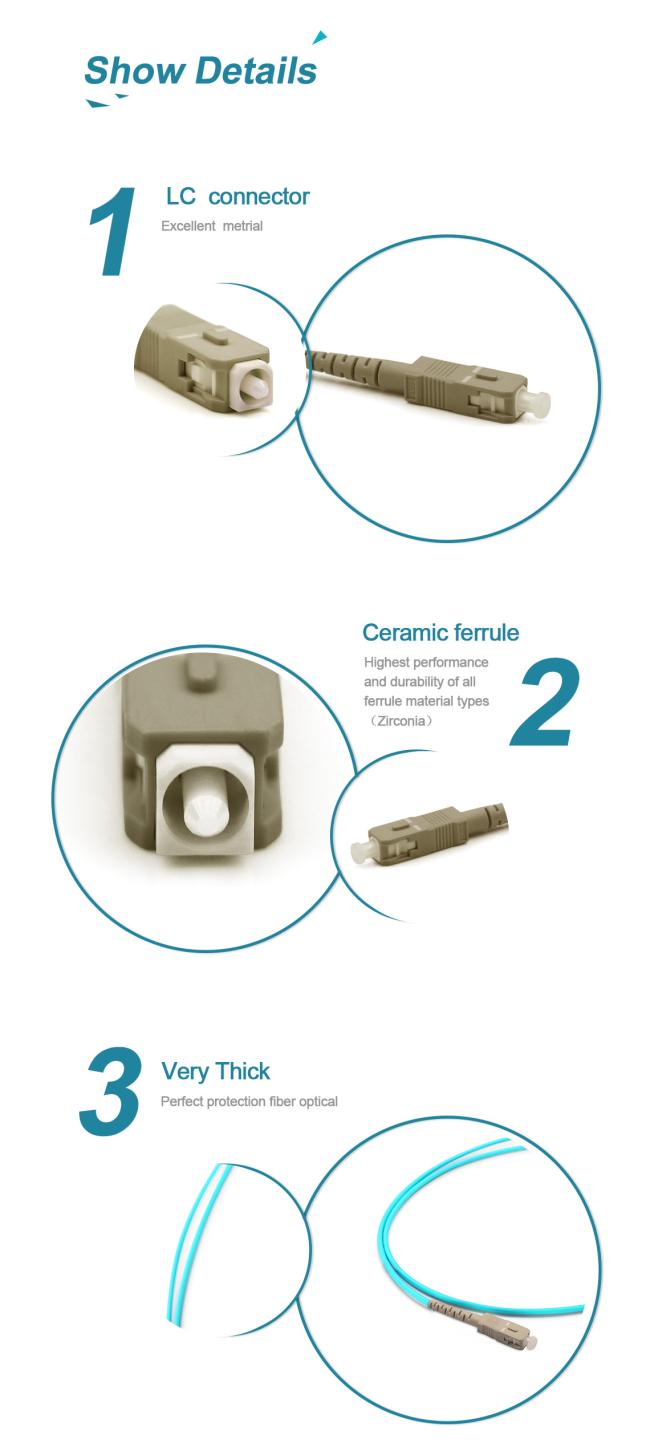

3.5/1.5 dB/km | Ferrule Materials | Ceramic |

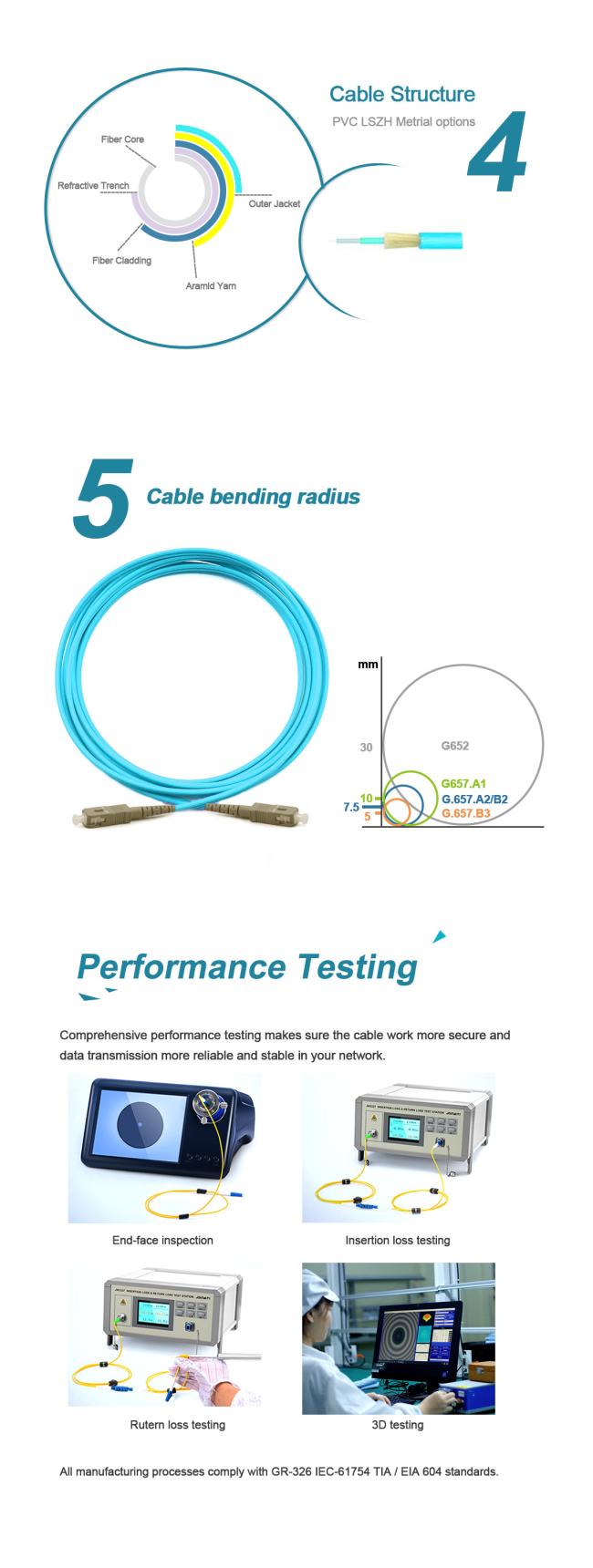

| Cable Diameter | 3.0mm | Strength Member | Aramid yarn |
| Optical Source | VCSEL |
Minimum Bend Radius (Short term/Long term) |
20D/10D |
| Operating Temperature | -20~70°C | Storage Temperature | -40~85°C |
Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH
