8-144 MTP MPO Fiber Cable
Customized 8-144 Fibers MTP®-12 OS2 Single Mode Elite Breakout Cable, Yellow
Please note: MPO Plus® is a registered trademark of Senko Advanced Components, Inc. 2013-2020 © All Rights Reserved. Senko MPO Plus® connectors are fully compliant with the MPO standards, which are enhanced in the areas of mechanical durability, product features and most importantly the optical performance of the MT ferrule itself.
Performance:
| END A | END B | ||||
| Connector Type | MTP/MPO | MTP/MPO | LC | LC Uniboot | SC |
| Polarity | Polarity A, Polarity B, Polarity C | ||||
| IL(MTP/MPO) | Standard ≤0.5 dB Ave ≤0.3dB | ||||
| IL(MTP/MPO) | Elite: ≤0.35dB Ave: ≤0.2dB | ||||
| IL(LC/SC) | Standard ≤0.25dB Low Loss : ≤0.15dB | ||||
| RL | SM:≥60dB MM: ≥20dB | ||||
| Tester Brand | EXFO & JGR | ||||
| Repeatability | ≤0.2dB | ||||
| Interchangeability | ≤0.2dB | ||||
| Mating | 1000 Times | ||||
| Opterating Temperature | -20℃ ~ +70℃ | ||||
| 3D Interferometer | Fiber Height: 1000nm~3500nm Radius Long: 500mm min Radius Short: 50mm min Ferrule Height: 7.95mm min MM Core Dip: <100nm |
||||
Test:
Features:
- Ulitize MPO/MTP connectors
- Inner: Ceramic Ferrule
- Available in Elite insertion loss and standarad insertion loss.
- Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.
- They use a simple push-pull latching mechanism for easy and intuitive insertion and removal.
- It provides up to 8, 12, 16, 24 times the density, thereby offering savings in circuit card and rack space.
- Available in OS1/2, OM1, OM2, OM3 and OM4, OM5
- Telcordia’s GR-326-Core, IEC Standard
- Green Production, RoHS Standard
- Interface polished type has PC, UPC and APC
- Support use in attaching directly to 40/100G transceivers
- 100% factory tested, with test results included for each assembly
Application
- Metro
- CATV
- Passive fiber optic networks
- Builing communication center
- Bank Data center
- Communication center rooms
- FTTH (Fiber to The Home)
- FTTA (Fiber to the attena)
- LAN (Local Area Network)
- FOS (fiber optic sensor)
- Fiber Optic Communication System
- Optical fiber connected and transmitted equipment
- Defense combat readiness
Polarity Testing:

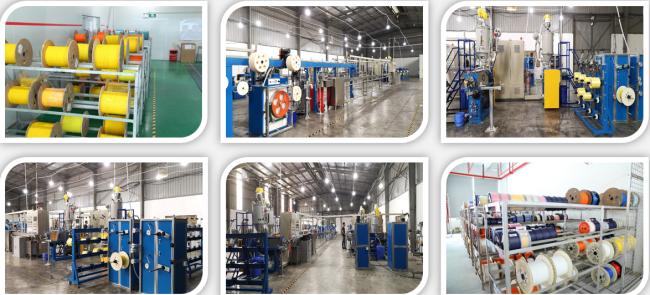

Our Cable production line:
