Pink OM4 MTP MPO Fiber Cable Multimode 24-144 Fibers Senko
Customized 24-144 Fibers Senko MPO-24 OM4 Multimode Elite Trunk Cable
Performance:
| END A | END B | ||||
| Connector Type | MTP/MPO | MTP/MPO | LC | LC Uniboot | SC |
| Polarity | Polarity A, Polarity B, Polarity C | ||||
| IL(MTP/MPO) | Standard ≤0.5 dB Ave ≤0.3dB | ||||
| IL(MTP/MPO) | Elite: ≤0.35dB Ave: ≤0.2dB | ||||
| IL(LC/SC) | Standard ≤0.25dB Low Loss : ≤0.15dB | ||||
| RL | SM:≥60dB MM: ≥20dB | ||||
| Tester Brand | EXFO & JGR | ||||
| Repeatability | ≤0.2dB | ||||
| Interchangeability | ≤0.2dB | ||||
| Mating | 1000 Times | ||||
| Opterating Temperature | -20℃ ~ +70℃ | ||||
| 3D Interferometer | Fiber Height: 1000nm~3500nm Radius Long: 500mm min Radius Short: 50mm min Ferrule Height: 7.95mm min MM Core Dip: <100nm |
||||
Test:
Features:
- Ulitize MPO/MTP connectors
- Inner: Ceramic Ferrule
- Available in Elite insertion loss and standarad insertion loss.
- Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.
- They use a simple push-pull latching mechanism for easy and intuitive insertion and removal.
- It provides up to 8, 12, 16, 24 times the density, thereby offering savings in circuit card and rack space.
- Available in OS1/2, OM1, OM2, OM3 and OM4, OM5
- Telcordia’s GR-326-Core, IEC Standard
- Green Production, RoHS Standard
- Interface polished type has PC, UPC and APC
- Support use in attaching directly to 40/100G transceivers
- 100% factory tested, with test results included for each assembly
Application
- Communication center rooms
- FTTH (Fiber to The Home)
- FTTA (Fiber to the attena)
- LAN (Local Area Network)
- FOS (fiber optic sensor)
- Fiber Optic Communication System
- Optical fiber connected and transmitted equipment
- Defense combat readiness
Note:

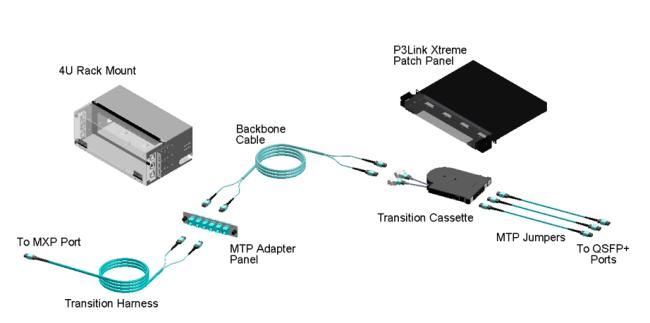

· Connect with trunk cable on one end, with equipment port on the other end
· Connect with transfer module on one end, with equipment port on the other end
Production line:
