MTP Fiber Optic Connector
Fiber Optic Connector/MPO&MTP Connector/ Single Mode/ Multi Mode/ APC/UPC/Customized/ Competitive Price
Introduction
Fiber cable connector, also named fiber optic connector or optical fiber connector, is a hardware installed on fiber cable ends. It provides cable attachment to a transmitter, receiver or other cable. There are various fiber cable connectors, for which different connectors have different characteristic and functions.

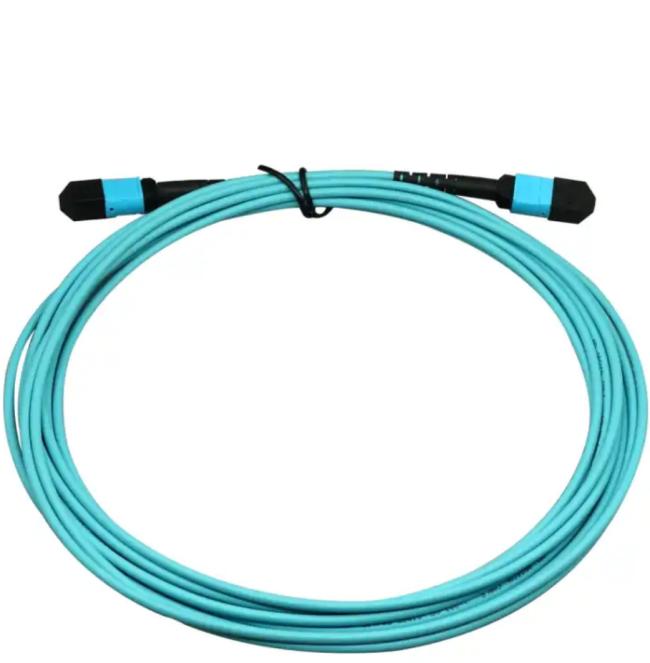

Pictures
Description
| Insertion Loss: | Typical≤0.20dB,max.≤0.30dB | Application: | FTTH FTTB FTTX Network, CATV, To Make Patch Cord, Telecommunication |
|---|---|---|---|
| Connector Type: | ST/FC/SC/LC/MTRJ/MU/E2000 | Fiber Type: | SM/MM |
| Work Wavelength: | 1310nm/1550nm/850nm/1300nm | Lead Time: | Within One Week |
| Packing: | Negotiable | Repeatability: | ≤0.20dB |
| Exchangeability: | ≤0.20dB | Durability: | 1000 Mating, Max≤0.20dB |
| Boot(Option): | 3.0mm, 2.0mm Or 0.9mm | Ferrule: | Ceramic (ZrO2) Or Customized |
| Operating Temperature: | -40℃ To +80℃ | Storage Temperature: | -40℃ To +80℃ |
Charactristics
1) Low insertion loss
2) Corroion resistant body
3) Ultra low back reflection
4) For 3.0mm,2.0mm jacket or 900um buffer
5) One piece with pre-domed ceramic ferrule is designed for easy assembly
6) Meets Telecordia-GR-326-CORE specifications
