XDK FC/APC-FC/APC Fiber Optic Patch Cable G657A1 Single Mode Aramid Yarn
Single Mode FC/APC-FC/APC Fiber Optic Patch Cord With Different Colors Optional
Introduction of FC/APC-FC/APC Fiber Optic Patch Cord
Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards. FC, SC, ST, LC Patch Cords are available in both multimode and single mode cable-types, in duplex and simplex versions.
Our patch cord provides high reliability and flexibility for our customers in different industries. Our top-of-the-line fiber optic cable assemblies and stringent manufacturing process ensures the excellent optical performance for our patch cords with traceable data.
Features of FC/APC-FC/APC Fiber Optic Patch Cord
1) Avalible in simplex, duplex connector options
2) Quick-tum service for fast delivery
3) TIA compliant color-coded connectors and boots
4) 100% tested for insertion loss and return loss
5) Other jacket colors available as custom with MOQ and lead time applicable
Specifications of FC/APC-FC/APC Fiber Optic Patch Cord
| Connector Type | FC/APC to FC/APC | Fiber Count | Simplex |
| Fiber Mode | G657A1 9/125um | Working Wavelength | 1260~1625nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
|
Attenuation at 1310/1550nm (Typical) |
0.36/0.22 dB/km | Ferrule Materials | Ceramic |
| Cable Diameter | 3.0mm | Strength Member | Aramid yarn |
|
Minimum Bend Radius (Long term) |
10D |
Minimum Bend Radius (Short term) |
20D |
| Cable Jacket | PVC or LSZH | Cable Colour | Yellow |
| Operating Temperature | -20~70°C | Storage Temperature | -40~85°C |
Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH
Our advantages of FC/APC-FC/APC Fiber Optic Patch Cord

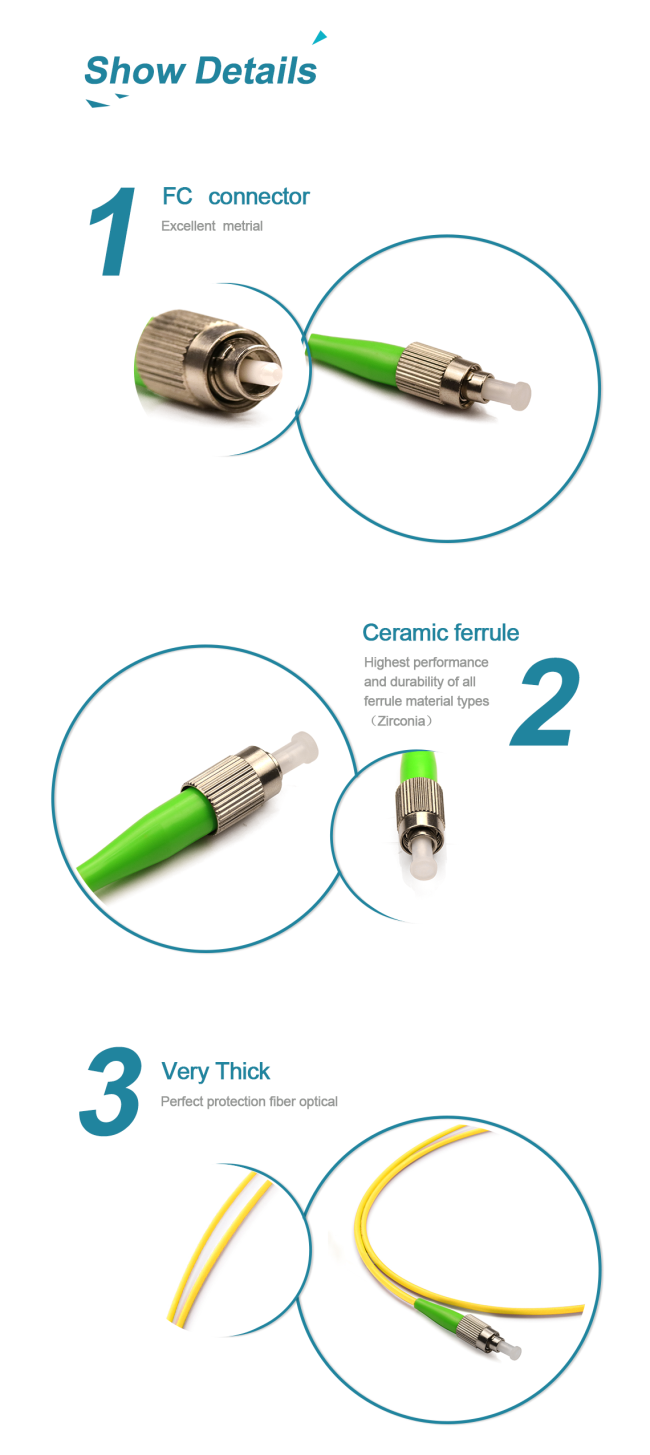

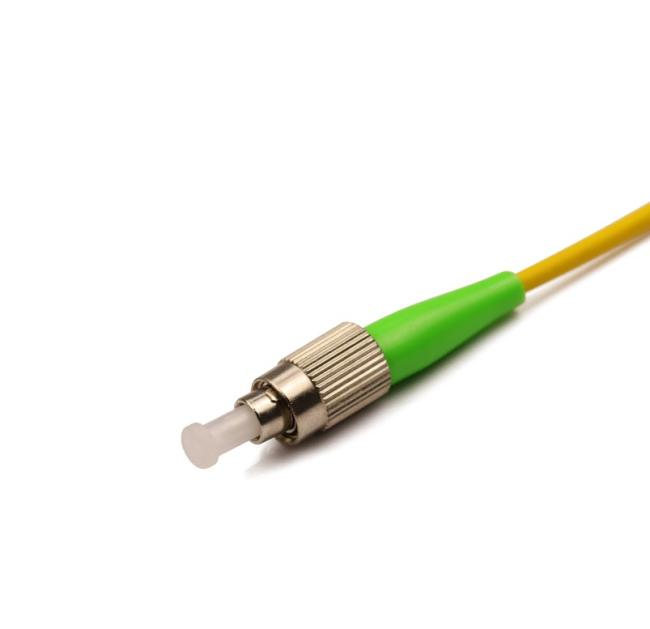

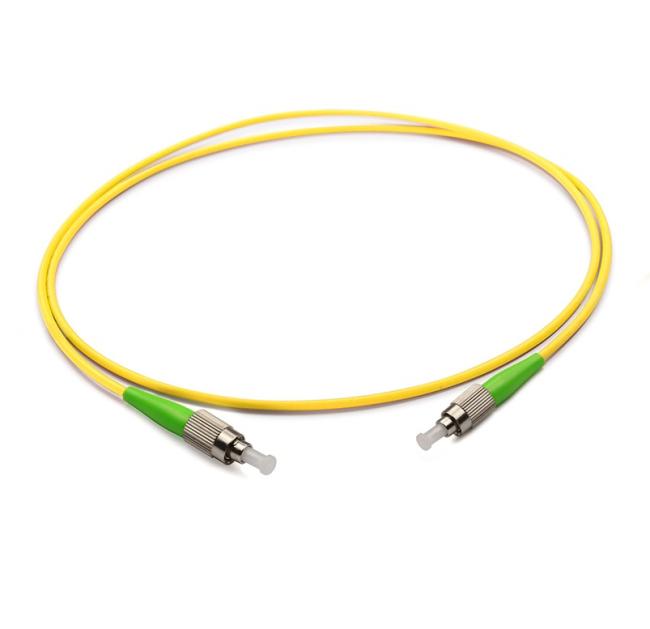

Pictures of FC/APC-FC/APC Fiber Optic Patch Cord
