OM3 12F 50/125 12 Core MTP MPO Fiber Cable Multimode Mpo To Lc

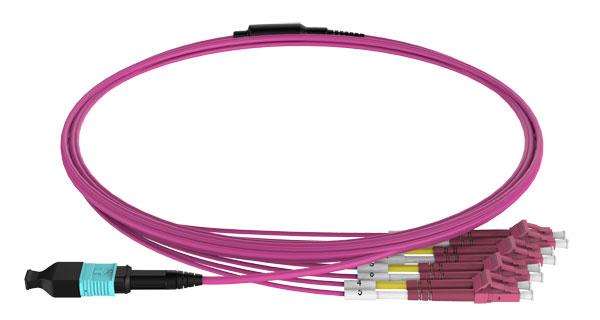

OM3 MTP/MPO-LC Breakout Cable 12F 50/125 12 core multimode fiber optic cable
Description:
MTP/MPO breakout assemblies are used in parallel optics and duplex transmission cross connect systems to increase cable density between switch and server cabinets. Designed for high-density fiber patching in data centers, they ensure peak performance throughout your local area network. Allow for rapid deployment of high-density, multi-port patch field connectivity for Storage Area Network (SAN) applications.
Features:
• US Conec MTP® connector, Senko MPO Plus premium connector
• Corning Clearcurve® multimode fiber, SMF-28® Ultra optical fiber
• LC, SC, FC, ST connectors available
• OS2, OM4, OM3 available
• 0.35dB elite low loss connector
• Custom staggering options available on tails
• Factory terminated and tested
• Pulling eyes are provided as an option to protect the fiber ends during installation
| Polarity | Type A, Type B, Type C | Connector A Polish Type | UPC or APC |
| Connector B Type | LC, SC, FC, ST | Connector B Type | UPC or APC |
| Fiber Count | 8/12/24 | Fiber Glass | CORNING or equivalent fiber |
| Fibre Mode |
Single mode: OS2 9/125µm Multimode: OM3 50/125µm, OM4 50/125µm |
Wavelength |
Single Mode: 1310/1550, Multimode: 850/1300 |
| Breakout Cable Length | 0.5/0.3m or customized | Minimum Bend Radius | Single Mode: 10.0mm, Multimode: 7.5mm |
| Jacket Color | Yellow; Aqua; Violet | Jacket Material | OFNR, OFNP, LSZH |
| Attenuation |
Single Mode: ≤0.32 at 1310nm, ≤0.20 at 1550nm Multimode: ≤2.3 at 850nm, ≤0.6 at 1300nm |
Transmission Distance |
OM3: 100m at 40/100G, 300m at 10G OM4: 150m at 40/100G, 400m at 10G |
| Insertion Loss | Single Mode: ≤0.35, Multimode: ≤0.35 | Return Loss |
Single Mode: UPC Polish: ≥50, APC Polish: ≥60 Multimode: ≥20 |
| Installation Tensile Load | 100N | Long-Term Tensile Load | 50N |
| Storage Temperature | -40°C to +85°C | Operating Temperature | -10°C to +70°C |
