OM1 LC/UPC-LC/UPC Fiber Optic Patch Cable Simplex Multimode XDK
Certificated Simplex Multimode OM1 LC/UPC-LC/UPC Fiber Optic Patch Cord
Introduction of Muiltmode OM1 LC/UPC-LC/UPC Fiber Optic Patch Cord
Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.
Our patch cord provides high reliability and flexibility for our customers in different industries. Our top-of-the-line fiber optic cable assemblies and stringent manufacturing process ensures the excellent optical performance for our patch cords with traceable data. All patchcords can be customized in length, fiber mode and connector types to suit every single customer requirement with our state-of-art production facilities.
Features of Muiltmode OM1 LC/UPC-LC/UPC Fiber Optic Patch Cord
1) Avalible in simplex, duplex connector options
2) Quick-tum service for fast delivery
3) TIA compliant color-coded connectors and boots
4) Cable jaket and boots color-coded for easy ID of fiber
Specifications of Muiltmode OM1 LC/UPC-LC/UPC Fiber Optic Patch Cord
| Connector Type | LC/UPC to LC/UPC | Fiber Count | Simplex |
| Fiber Mode | OM1 62.5/125um |
OFL Bandwidth (850/1300nm) |
200/500 MHz*km |
| Insertion Loss | ≤0.3dB | Return Loss | ≥35dB |
|
Attenuation at 850/1300nm (Typical) |
3.5/1.5 dB/km | Ferrule Materials | Ceramic |
| Cable Diameter | 3.0mm | Strength Member | Aramid yarn |
| Optical Source | LED Light |
Minimum Bend Radius (Short term/Long term) |
20D/10D |
| Cable Jacket | LSZH or PVC | Cable Colour | Orange |
| Operating Temperature | -20~70°C | Storage Temperature | -40~85°C |

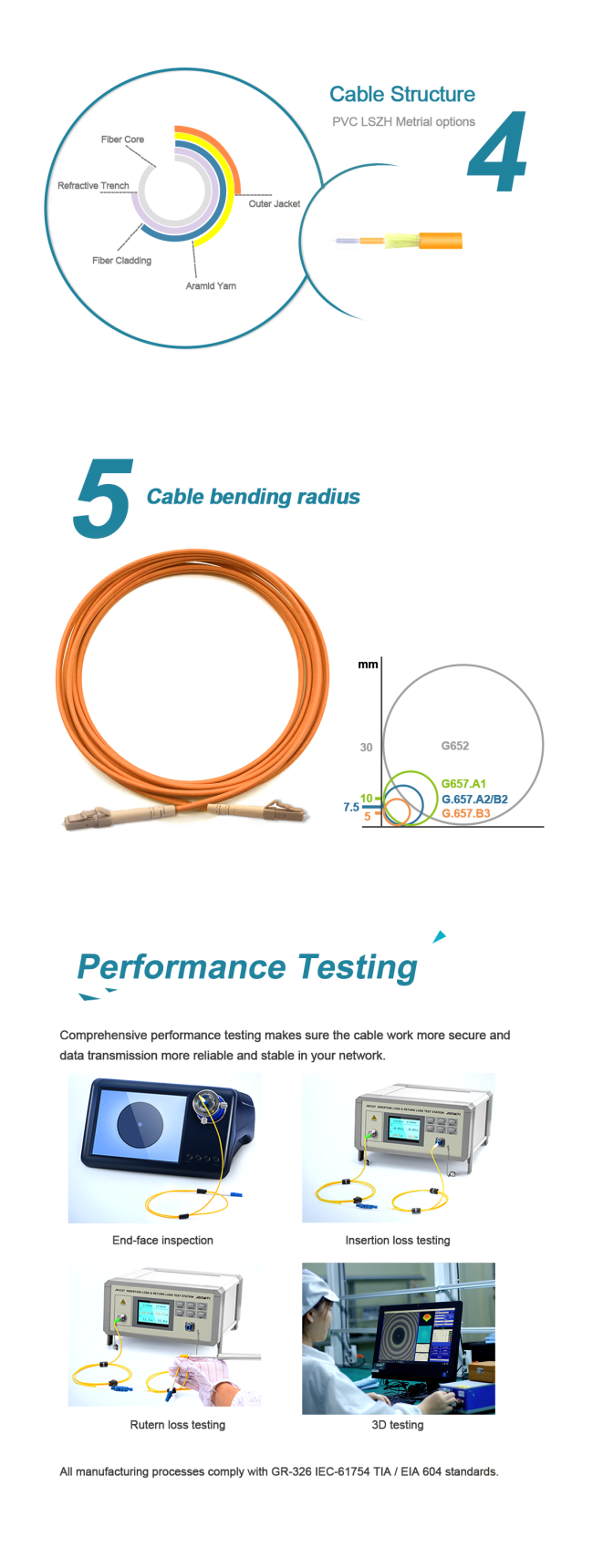

Testing Lab
| No | Device name | No | Device name |
| 1 | Optical time domain reflectometer (OTDR) | 8 | GNZV Cable Torsion Testing Machine |
| 2 | Fiber Polarization Mode Dispersion | 9 | GQNV Cable Flexing Testing Machine |
| 3 | Fiber Dispersion ,Strain Tester | 10 | GJRV Cable Winding Testing Machine |
| 4 | High Low Temperature Test Chamber | 11 | GZDV Cable Vibration Testing Machine |
| 5 | Cable Impact Testing Machine | 12 | Cable Water Penetration Test |
| 6 | Cable Squash Tensile Testing Machine | 13 | Fusion Splicer |
| 7 | GWQV Cable Bending Tester | 14 | Cable Water Penetration Test Rig |
Part of certificates of Muiltmode OM1 LC/UPC-LC/UPC Fiber Optic Patch Cord

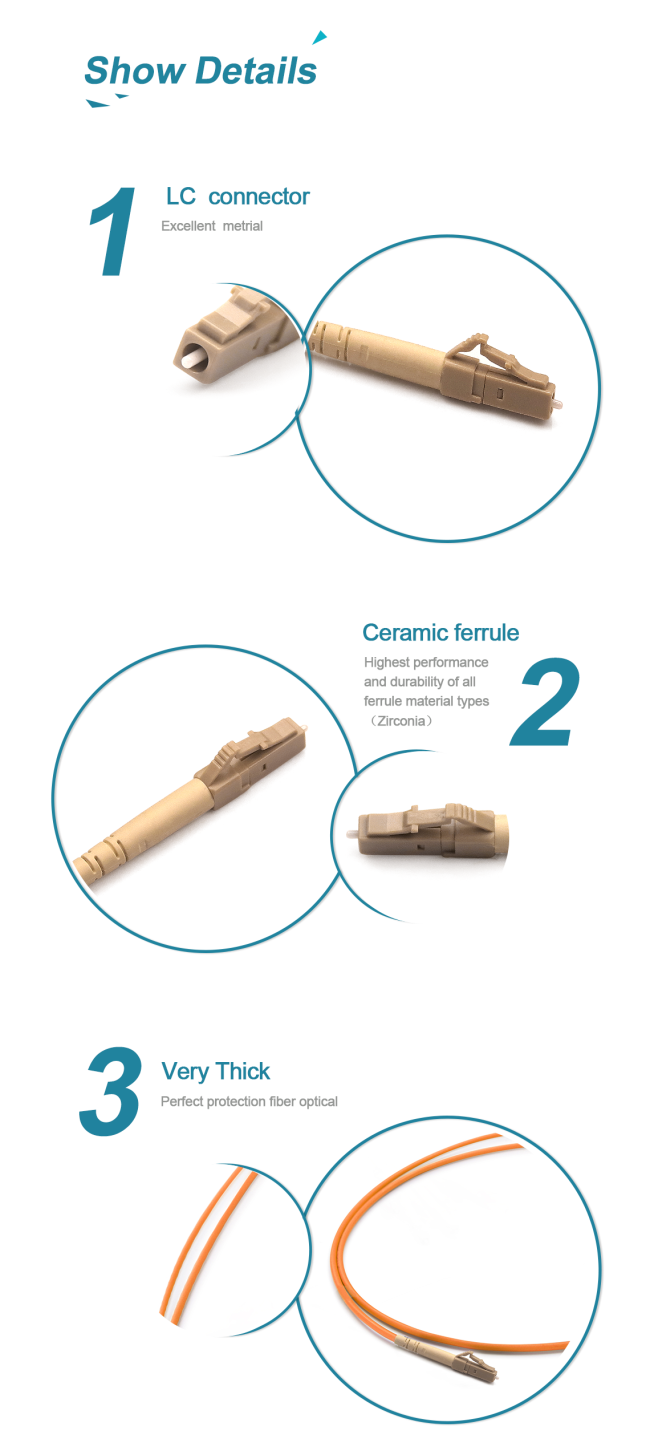

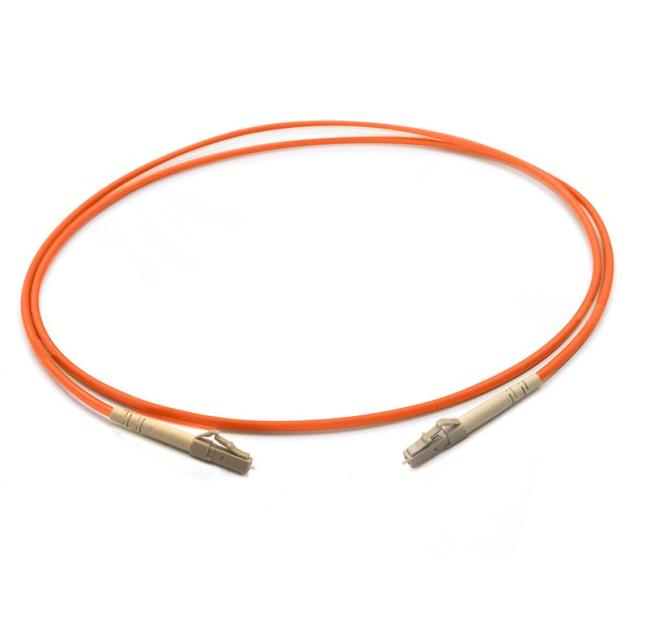

Pictures of Muiltmode OM1 LC/UPC-LC/UPC Fiber Optic Patch Cord
Advantages of Multimode OM4 FC/UPC-FC/UPC Fiber Optic Patch Cord
